Load Compartment Trim (Nitra Plant Build, Floor) (With Third Row Power Folding Seat, With 7 Seat...

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Load Compartment Trim (Nitra Plant Build, Floor) (With Third Row Power Folding Seat, With 7 Seat...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR095024 BOLT AND WASHER - HEX.HEAD $2.45 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. $0.70 To Order
Photo Part No Description Price (each) Stock
LR028301 SCREW $1.25 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.78 IN STOCK
Photo Part No Description Price (each) Stock
LR096438 CARPET - FLOOR - LOADING COMP. $360.33 To Order
LR096437 CARPET - FLOOR - LOADING COMP. $360.33 To Order
LR096437 CARPET - FLOOR - LOADING COMP. $360.33 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081292 RAIL - LUGGAGE COMPARTMENT - INSERT $185.70 To Order
LR081296 RAIL - LUGGAGE COMPARTMENT - INSERT $185.70 To Order
LR081296 RAIL - LUGGAGE COMPARTMENT - INSERT $185.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082863 BRACKET - LOAD FLOOR $14.43 To Order
Photo Part No Description Price (each) Stock
LR088967 SEAL - COVER $3.65 IN STOCK
Photo Part No Description Price (each) Stock
LR107515 PLATE - TAILGATE RECLINE $176.67 To Order
LR107516 PLATE - TAILGATE RECLINE $176.67 To Order
LR107516 PLATE - TAILGATE RECLINE $176.67 To Order
Photo Part No Description Price (each) Stock
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $52.89 To Order
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $52.89 To Order
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $52.89 To Order
Photo Part No Description Price (each) Stock
LR082120 FOAM PAD - LOADFLOOR $305.88 To Order
LR082121 FOAM PAD - LOADFLOOR $299.89 To Order
LR082122 FOAM PAD - LOADFLOOR $305.88 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR105996 FOAM PAD - LOADFLOOR $79.68 To Order
Photo Part No Description Price (each) Stock
LR088765 COVER - LATCH $39.39 To Order
LR088766 COVER - LATCH $36.78 To Order
LR088766 COVER - LATCH $36.78 To Order
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL $6.52 To Order
Photo Part No Description Price (each) Stock
LR101963 BRACKET - LUGGAGE RAILS SUPPORT $64.22 To Order
LR101965 BRACKET - LUGGAGE RAILS SUPPORT $64.24 To Order
Photo Part No Description Price (each) Stock
LR082130 BRACKET - LUGGAGE RAILS SUPPORT $37.15 To Order
LR082136 BRACKET - LUGGAGE RAILS SUPPORT $35.40 To Order
Photo Part No Description Price (each) Stock
LR101964 BRACKET - LUGGAGE RAILS SUPPORT $15.88 To Order
LR101966 BRACKET - LUGGAGE RAILS SUPPORT $15.88 To Order
Photo Part No Description Price (each) Stock
LR087353 BRACKET - LUGGAGE RAILS SUPPORT $20.65 To Order
LR087354 BRACKET - LUGGAGE RAILS SUPPORT $20.65 To Order
LR125134 BRACKET - LUGGAGE RAILS SUPPORT $12.07 To Order
...and 1 more part variants. See table on right for more details.
View All

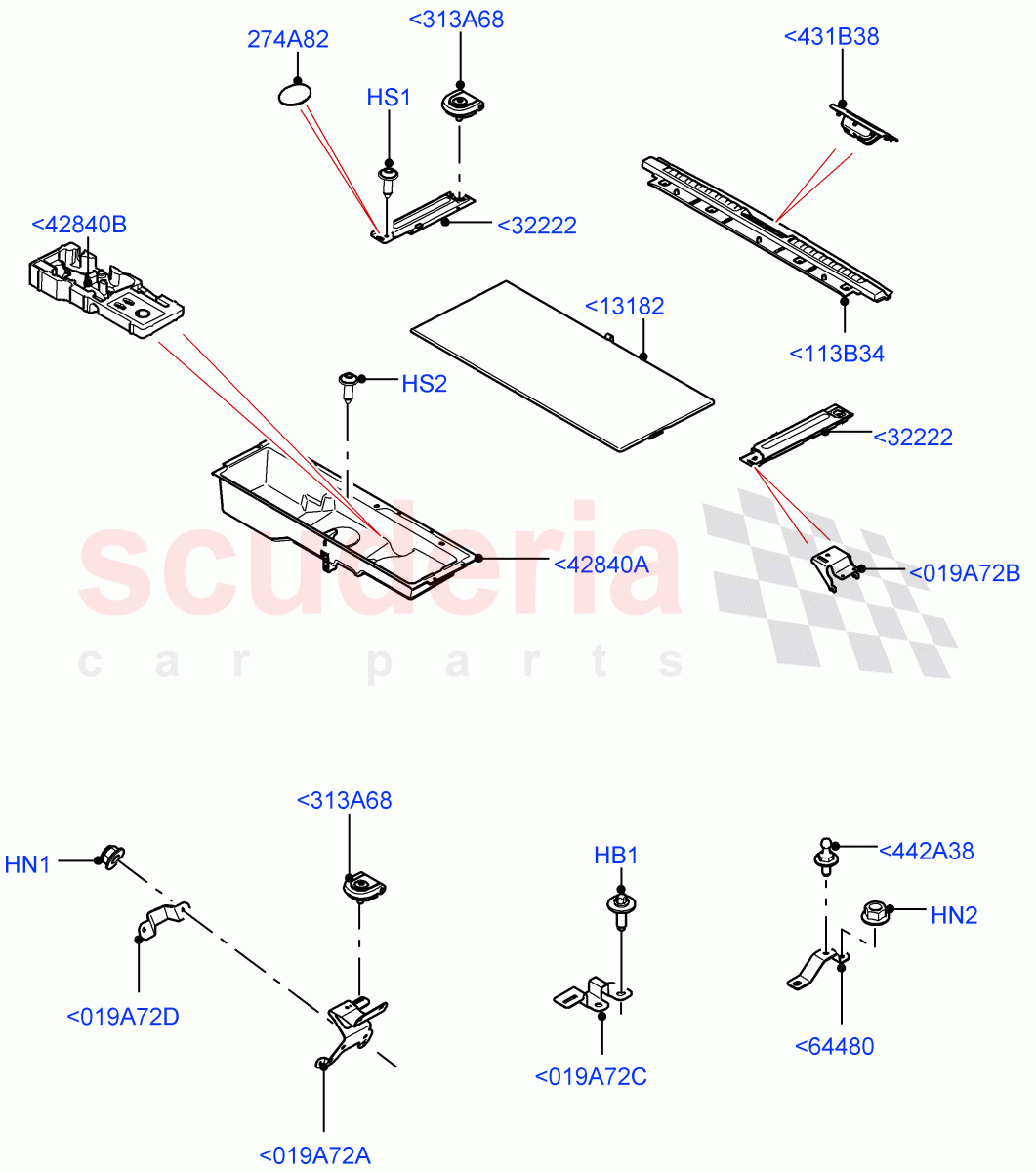

Load Compartment Trim (Nitra Plant Build, Floor) (With Third Row Power Folding Seat, With 7 Seat Configuration, With 3rd Row Double Seat) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<019A72A LR101963
BRACKET - LUGGAGE RAILS SUPPORT
RH, Cargo Retention / From: K2000001 		$64.22 1
<019A72A LR101965
BRACKET - LUGGAGE RAILS SUPPORT
LH, Cargo Retention / From: K2000001 		$64.24 1
<019A72B LR082130
BRACKET - LUGGAGE RAILS SUPPORT
RH, Support Bracket / From: K2000001 		$37.15 1
<019A72B LR082136
BRACKET - LUGGAGE RAILS SUPPORT
LH, Support Bracket / From: K2000001 		$35.40 1
<019A72C LR101964
BRACKET - LUGGAGE RAILS SUPPORT
RH, Infill Panel / From: K2000001 		$15.88 1
<019A72C LR101966
BRACKET - LUGGAGE RAILS SUPPORT
LH, Infill Panel / From: K2000001 		$15.88 1
<019A72D LR087353
BRACKET - LUGGAGE RAILS SUPPORT
RH, "C" Pillar, Fixing / From: K2000001 / To: K2404501 		$20.65 1
<019A72D LR087354
BRACKET - LUGGAGE RAILS SUPPORT
LH, "C" Pillar, Fixing / From: K2000001 / To: K2404501 		$20.65 1
<019A72D LR125134
BRACKET - LUGGAGE RAILS SUPPORT
LH, "C" Pillar, Fixing / From: K2404502 		$12.07 1
<019A72D LR125132
BRACKET - LUGGAGE RAILS SUPPORT
RH, "C" Pillar, Fixing / From: K2404502 		$12.07 1
<113B34 LR107515
PLATE - TAILGATE RECLINE
Interior Espresso Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$176.67 1
<113B34 LR107516
PLATE - TAILGATE RECLINE
Int Ebony Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$176.67 1
<113B34 LR107516
PLATE - TAILGATE RECLINE
Load Floor - Standard / From: M2000001 		$176.67 1
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
Load Retainer Luggage Rails / From: K2000001 / To: K2999999 		$52.89 2
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
Less Load Retainer Luggage / From: K2000001 / To: K2999999 		$52.89 4
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
From: L2000001 		$52.89 4
<431B38 LR088765
COVER - LATCH
Interior Espresso Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$39.39 1
<431B38 LR088766
COVER - LATCH
Int Ebony Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$36.78 1
<431B38 LR088766
COVER - LATCH
Load Floor - Standard / From: M2000001 		$36.78 1
<442A38 LR138284
STUD - BALL
M8 x 19MM / From: K2000001 		$6.52 2
<13182 LR096438
CARPET - FLOOR - LOADING COMP.
Interior Espresso Carpet / From: K2000001 / To: L2999999 		$360.33 1
<13182 LR096437
CARPET - FLOOR - LOADING COMP.
Int Ebony Carpet / From: K2000001 / To: L2999999 		$360.33 1
<13182 LR096437
CARPET - FLOOR - LOADING COMP.
60/40 Load Through With Slide / From: M2000001 / To: P2466225 		$360.33 1
<13182 LR163960
CARPET - FLOOR - LOADING COMP.
60/40 Load Through With Slide / From: P2466226 		$360.33 1
<32222 LR081292
RAIL - LUGGAGE COMPARTMENT - INSERT
RH / From: K2000001 / To: L2999999 		$185.70 1
<32222 LR081296
RAIL - LUGGAGE COMPARTMENT - INSERT
LH / From: K2000001 / To: L2999999 		$185.70 1
<32222 LR081296
RAIL - LUGGAGE COMPARTMENT - INSERT
60/40 Load Through With Slide / LH / From: M2000001 		$185.70 1
<32222 LR081292
RAIL - LUGGAGE COMPARTMENT - INSERT
60/40 Load Through With Slide / RH / From: M2000001 		$185.70 1
<42840A LR082120
FOAM PAD - LOADFLOOR
With Standard Duty Coil Spring Susp / From: K2000001 		$305.88 1
<42840A LR082121
FOAM PAD - LOADFLOOR
Hi Line Audio System - 600 W, With Four Corner Air Suspension / From: K2000001 		$299.89 1
<42840A LR082122
FOAM PAD - LOADFLOOR
Midline Sound System, With Four Corner Air Suspension / From: K2000001 / To: L2999999 		$305.88 1
<42840A LR082122
FOAM PAD - LOADFLOOR
Less Engine Order Cancellation, Standard Audio (Base), With Four Corner Air Suspension / From: M2000001 		$305.88 1
<42840A LR082121
FOAM PAD - LOADFLOOR
Engine Order Cancellation Gen 1, Standard Audio (Base), With Four Corner Air Suspension / From: M2000001 		$299.89 1
<42840B LR105996
FOAM PAD - LOADFLOOR
Tow Hitch Man Detachable Swan Neck / From: K2000001 		$79.68 1
<64480 LR082863
BRACKET - LOAD FLOOR
From: K2000001 		$14.43 1
HB1 LR095024
BOLT AND WASHER - HEX.HEAD
M10 X 30MM / From: K2000001 		$2.45 2
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: K2000001
IN STOCK 		$0.60 8
HN2 FN110046
NUT - HEX.
M10 / From: K2000001 		$0.70 4
HS1 LR028301
SCREW
M8 X 21MM, Pan Head / From: K2000001 		$1.25 6
HS2 PYP500140
SCREW
4.2 x 13MM, Torx / From: K2000001
IN STOCK 		$0.78 7
274A82 LR088967
SEAL - COVER
25MM,
IN STOCK 		$3.65 2
