Heater & Air Conditioning Controls (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Heater & Air Conditioning Controls (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR121305 CLIP $1.29 To Order
Photo Part No Description Price (each) Stock
LR081369 SWITCH $708.16 To Order
LR081371 SWITCH $702.31 To Order
LR081373 SWITCH $667.93 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR084022 HEATER CONTROL $610.88 To Order
LR084023 HEATER CONTROL $482.49 To Order
LR084024 HEATER CONTROL $436.65 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081428 CONTROL - AIR CONDITIONING $495.07 To Order
LR081429 CONTROL - AIR CONDITIONING $866.29 To Order
LR081430 CONTROL - AIR CONDITIONING $771.57 To Order
View All

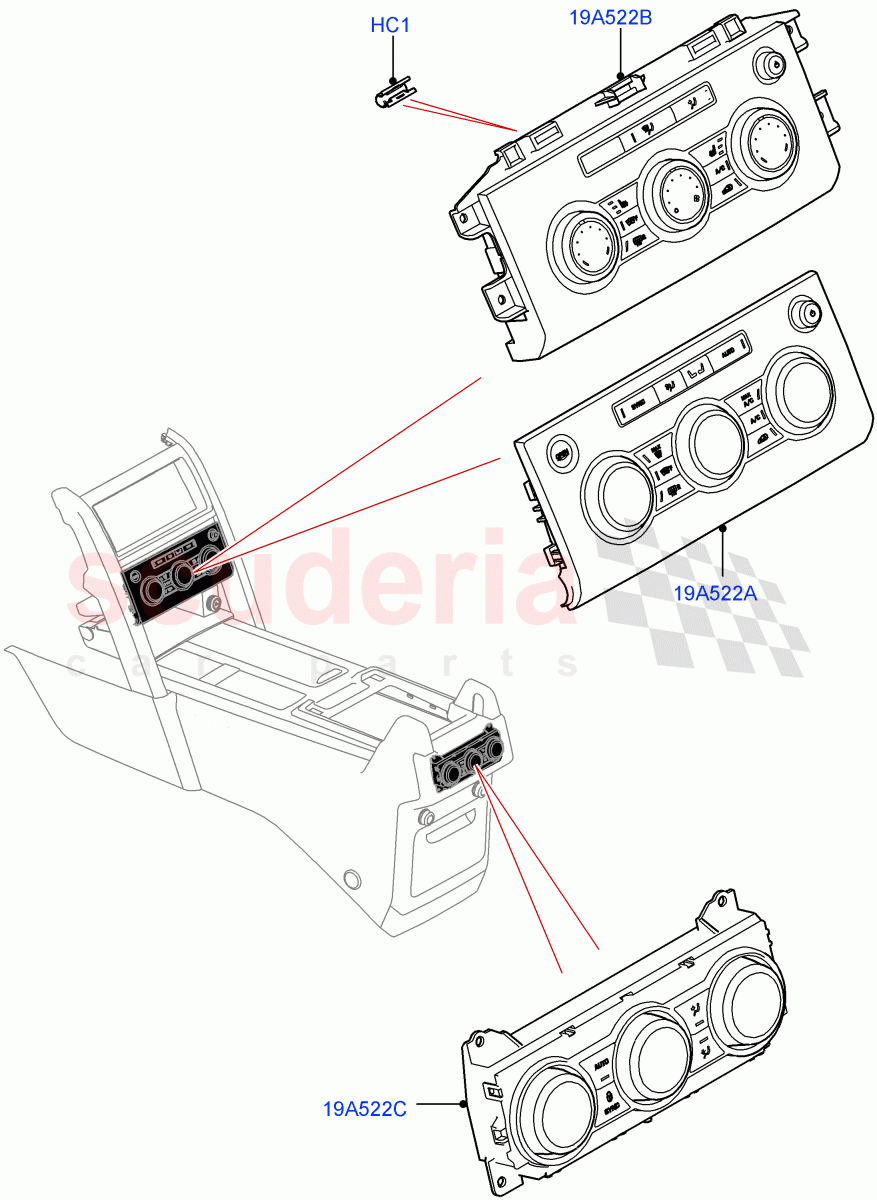

Heater & Air Conditioning Controls (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR121305
CLIP 		$1.29 3
19A522A LR081369
SWITCH
Hidden Central IP Stowage, Less Heated Windscreen, Premium Air Conditioning-Front/Rear, With Seat Temperature Control / Instrument Panel 		$708.16 1
19A522A LR081371
SWITCH
Hidden Central IP Stowage, Premium Air Conditioning-Front/Rear, With Heated Windscreen, With Seat Temperature Control / Instrument Panel 		$702.31 1
19A522A LR081373
SWITCH
Hidden Central IP Stowage, Less Heated Windscreen, Less Seat Temperature Control, Premium Air Conditioning-Front/Rear / Instrument Panel 		$667.93 1
19A522A LR081375
SWITCH
Hidden Central IP Stowage, Less Seat Temperature Control, With Air Conditioning - Front/Rear, With Heated Windscreen / Instrument Panel 		$713.73 1
19A522A LR086817
SWITCH
Hidden Central IP Stowage, Less Heated Windscreen, With Front Comfort Air Con (IHKA), With Seat Temperature Control / Instrument Panel 		$777.82 1
19A522A LR086818
SWITCH
Hidden Central IP Stowage, With Front Comfort Air Con (IHKA), With Heated Windscreen, With Seat Temperature Control / Instrument Panel 		$737.41 1
19A522A LR086816
SWITCH
Hidden Central IP Stowage, Less Heated Windscreen, Less Seat Temperature Control, With Front Comfort Air Con (IHKA) / Instrument Panel 		$460.26 1
19A522A LR086815
SWITCH
Hidden Central IP Stowage, Less Seat Temperature Control, With Front Comfort Air Con (IHKA), With Heated Windscreen / Instrument Panel 		$777.82 1
19A522B LR084022
HEATER CONTROL
Less Heated Windscreen, Less Hidden Central IP Stowage, Less Seat Temperature Control, With Manual Air Conditioning / Instrument Panel / To: HA999999 		$610.88 1
19A522B LR084023
HEATER CONTROL
Less Hidden Central IP Stowage, Less Seat Temperature Control, With Heated Windscreen, With Manual Air Conditioning / Instrument Panel / To: HA999999 		$482.49 1
19A522B LR084024
HEATER CONTROL
Less Heated Windscreen, Less Hidden Central IP Stowage, With Air Conditioning - Front/Rear, With Seat Temperature Control / Instrument Panel / To: HA999999 		$436.65 1
19A522B LR084025
HEATER CONTROL
Less Hidden Central IP Stowage, Premium Air Conditioning-Front/Rear, With Heated Windscreen, With Seat Temperature Control / Instrument Panel / To: HA999999 		$681.75 1
19A522B LR084026
HEATER CONTROL
Less Heated Windscreen, Less Hidden Central IP Stowage, Less Seat Temperature Control, With Air Conditioning - Front/Rear / Instrument Panel / To: HA999999 		$526.76 1
19A522B LR084027
HEATER CONTROL
Less Hidden Central IP Stowage, Less Seat Temperature Control, With Front Comfort Air Con (IHKA), With Heated Windscreen / Instrument Panel / To: HA999999 		$810.33 1
19A522B LR137070
HEATER CONTROL
Heated/Cooled Front - Heated Rear, Less Heated Windscreen, Less Hidden Central IP Stowage, With Front Comfort Air Con (IHKA) / Instrument Panel / From: JA000001 		$541.46 1
19A522B LR137068
HEATER CONTROL
Less Heated Windscreen, Less Hidden Central IP Stowage, Less Seat Temperature Control, With Manual Air Conditioning / Instrument Panel / From: JA000001 		$806.57 1
19A522B LR137069
HEATER CONTROL
Less Hidden Central IP Stowage, Less Seat Temperature Control, With Heated Windscreen, With Manual Air Conditioning / Instrument Panel / From: JA000001 		$646.16 1
19A522B LR137071
HEATER CONTROL
Heated/Cooled Front-Heated Row 2/3, Less Hidden Central IP Stowage, With Front Comfort Air Con (IHKA), With Heated Windscreen / Instrument Panel / From: JA000001 		$584.05 1
19A522B LR137072
HEATER CONTROL
Less Heated Windscreen, Less Hidden Central IP Stowage, Less Seat Temperature Control, With Front Comfort Air Con (IHKA) / Instrument Panel / From: JA000001 		$612.47 1
19A522B LR137073
HEATER CONTROL
Less Hidden Central IP Stowage, Less Seat Temperature Control, With Front Comfort Air Con (IHKA), With Heated Windscreen / Instrument Panel / From: JA000001 		$584.75 1
19A522B LR124569
HEATER CONTROL
Less Heated Windscreen, Less Hidden Central IP Stowage, Less Seat Temperature Control, Premium Air Conditioning-Front/Rear / Instrument Panel / From: KA000001 		$1,127.37 1
19A522C LR081428
CONTROL - AIR CONDITIONING
Heated/Cooled Front/Rear Seat / Rear Console 		$495.07 1
19A522C LR081429
CONTROL - AIR CONDITIONING
Heated Seats - Front/Row 2 And 3 / Rear Console 		$866.29 1
19A522C LR081430
CONTROL - AIR CONDITIONING
With Heated/Cooled Front Seats Only / Rear Console 		$771.57 1
