Transmission Mounting (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Transmission Mounting (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500200 BOLT $3.19 To Order
Photo Part No Description Price (each) Stock
LR072612 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
RYG501170 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR084109 SUPPORT - TRANSMISSION CENTRE $656.33 To Order
LR099175 SUPPORT - TRANSMISSION CENTRE $669.47 To Order
LR105303 SUPPORT - TRANSMISSION CENTRE $669.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092039 INSULATOR - ENGINE SUPPORT $79.86 To Order
Photo Part No Description Price (each) Stock
LR038130 STIFFENER - TRANSMISSION SUPPORT $38.09 To Order
Photo Part No Description Price (each) Stock
LR081356 STIFFENER - TRANSMISSION SUPPORT $123.98 To Order
View All

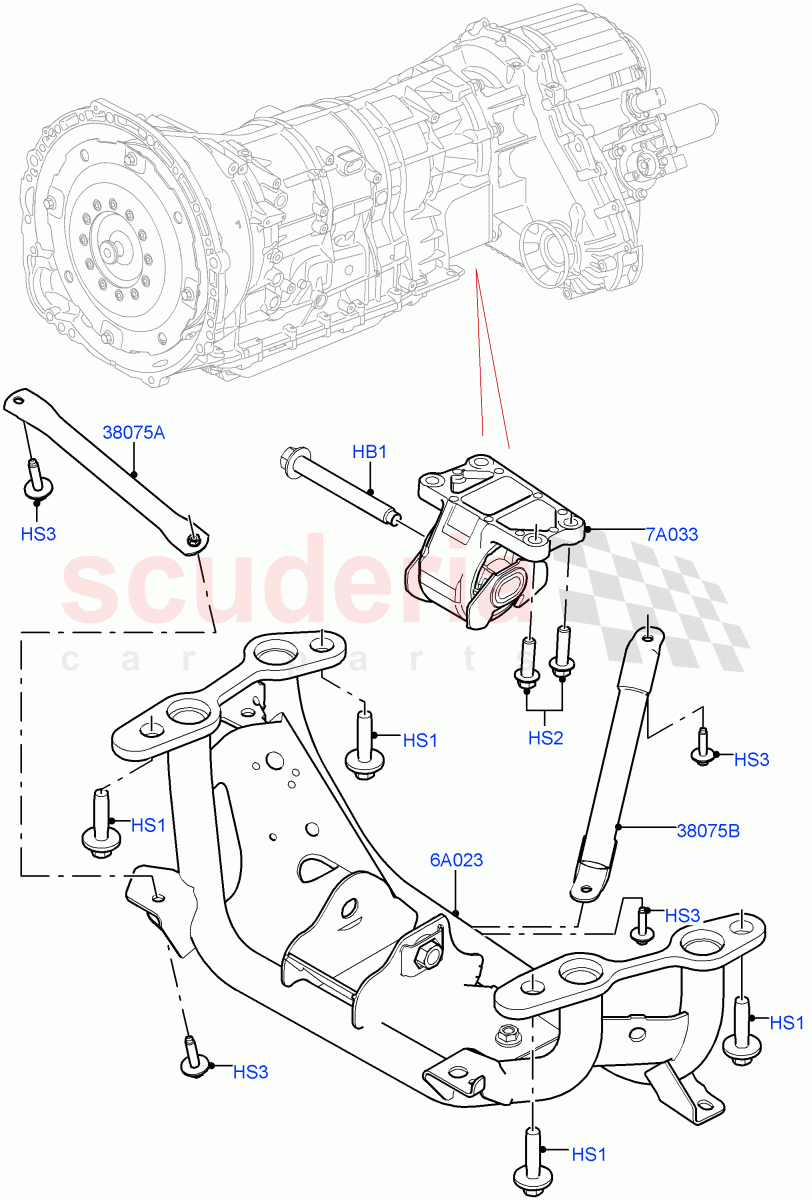

Transmission Mounting (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 KYG500200
BOLT
Hexagonal Head, M14 x 110MM 		$3.19 1
HS1 LR072612
SCREW
Hexagonal Head, M12 X 45MM 		$2.74 4
HS2 FT110356
SCREW
Hexagonal Head, M10 x 35MM 		$2.40 4
HS3 RYG501170
SCREW AND WASHER
Hexagonal Head, M8 X 30MM 		$0.61 4
6A023 LR084109
SUPPORT - TRANSMISSION CENTRE
Transmission / To: HA003856 		$656.33 1
6A023 LR099175
SUPPORT - TRANSMISSION CENTRE
Transmission / From: HA003857 / To: HA028118 		$669.47 1
6A023 LR105303
SUPPORT - TRANSMISSION CENTRE
Transmission / From: HA028119 / To: JA999999 		$669.47 1
6A023 LR113253
SUPPORT - TRANSMISSION CENTRE
Transmission / From: KA000001 		$669.47 1
7A033 LR092039
INSULATOR - ENGINE SUPPORT
Transfer Box 		$79.86 1
38075A LR038130
STIFFENER - TRANSMISSION SUPPORT
Front 		$38.09 1
38075B LR081356
STIFFENER - TRANSMISSION SUPPORT
Rear 		$123.98 1
