Turbocharger (Solihull Plant Build) (2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4 High Dohc Aj200 Petrol,...

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Turbocharger (Solihull Plant Build) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071777 BOLT - HEX.HEAD $2.77 To Order
Photo Part No Description Price (each) Stock
LR091557 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
LR092112 NUT $2.16 To Order
Photo Part No Description Price (each) Stock
LR092114 STUD $3.58 To Order
Photo Part No Description Price (each) Stock
LR091554 GASKET - EXHAUST MANIFOLD $26.20 To Order
Photo Part No Description Price (each) Stock
LR105414 CLAMP - EXHAUST $49.67 To Order
Photo Part No Description Price (each) Stock
LR105411 GASKET - TURBOCHARGER $20.78 To Order
Photo Part No Description Price (each) Stock
LR111086 TURBOCHARGER $2,845.95 To Order
LR116338 TURBOCHARGER $1,814.63 To Order
Photo Part No Description Price (each) Stock
LR091550 HEAT SHIELD - TURBOCHARGER $29.40 To Order
Photo Part No Description Price (each) Stock
LR091549 HEAT SHIELD - TURBOCHARGER $24.89 To Order
Photo Part No Description Price (each) Stock
LR091551 HEAT SHIELD - TURBOCHARGER $23.59 To Order
Photo Part No Description Price (each) Stock
LR091546 HEAT SHIELD - TURBOCHARGER $36.13 To Order
Photo Part No Description Price (each) Stock
LR164809 GREASE - HIGH TEMPERATURE $79.33 To Order
View All

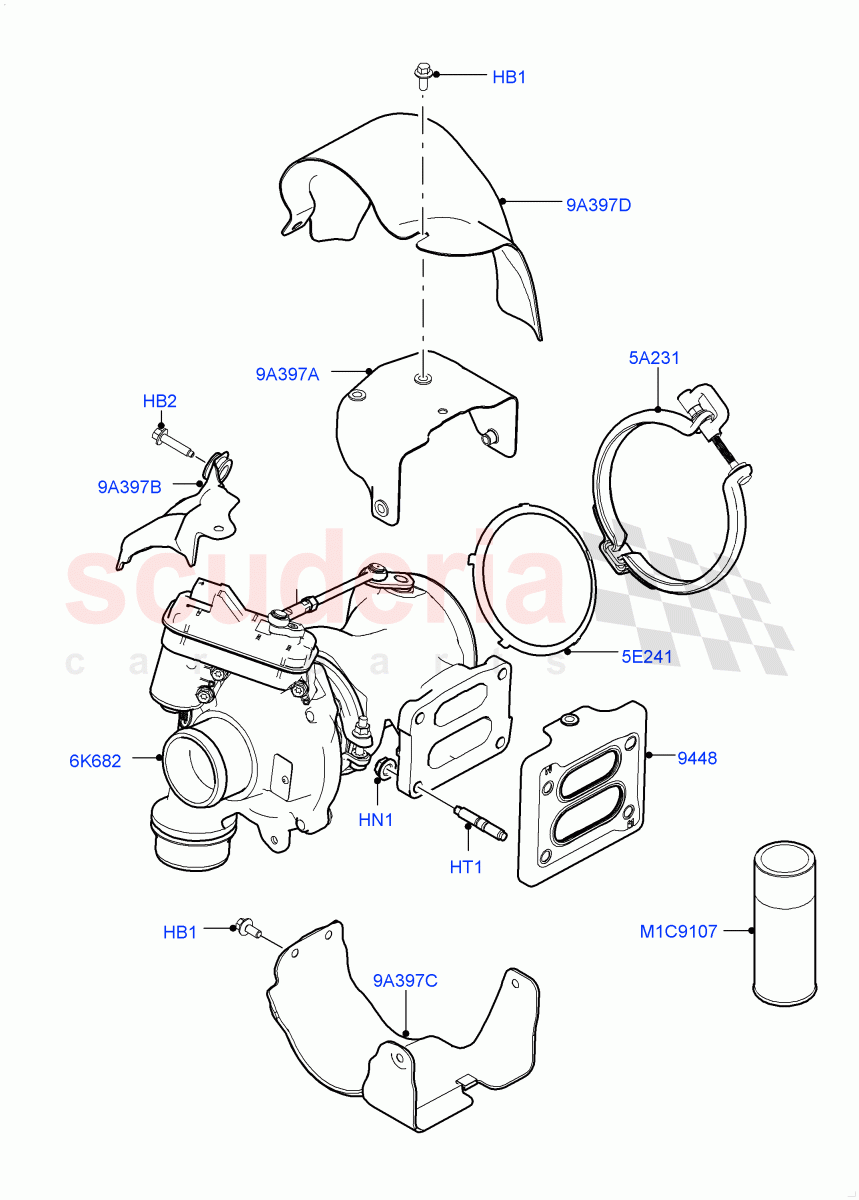

Turbocharger (Solihull Plant Build) (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR071777
BOLT - HEX.HEAD
M6 X 14MM, Shield / From: JA000001 		$2.77 8
HB2 LR091557
BOLT
M6 X 25MM, Shield / From: JA000001 		$3.01 1
HN1 LR092112
NUT
M8, Turbocharger / From: JA000001 		$2.16 4
HT1 LR092114
STUD
M8 X 17.5 + M8 X 20, Turbocharger / From: JA000001 		$3.58 4
M1C9107 LR164809
GREASE - HIGH TEMPERATURE
High Temperature, Wastegate Rod / From: JA000001 		$79.33 1
5A231 LR105414
CLAMP - EXHAUST
120MM, Turbocharger Outlet / From: JA000001 		$49.67 1
5E241 LR105411
GASKET - TURBOCHARGER
Turbocharger Outlet / From: JA000001 		$20.78 1
6K682 LR111086
TURBOCHARGER
2.0L I4 High DOHC AJ200 Petrol / From: JA000001 / To: JA055493 		$2,845.95 1
6K682 LR116338
TURBOCHARGER
2.0L I4 High DOHC AJ200 Petrol / From: JA055494 		$1,814.63 1
9A397A LR091550
HEAT SHIELD - TURBOCHARGER
Top / From: JA000001 		$29.40 1
9A397B LR091549
HEAT SHIELD - TURBOCHARGER
Outer, Top / From: JA000001 		$24.89 1
9A397C LR091551
HEAT SHIELD - TURBOCHARGER
Lower / From: JA000001 		$23.59 1
9A397D LR091546
HEAT SHIELD - TURBOCHARGER
From: JA000001 		$36.13 1
9448 LR091554
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / From: JA000001 		$26.20 1
