Rear Exhaust System (Solihull Plant Build) (2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR112283 DAMPER - DAMPING MASS $86.34 To Order
Photo Part No Description Price (each) Stock
LR113591 HEAT SHIELD - EXHAUST DAMPER $18.03 To Order
Photo Part No Description Price (each) Stock
LR105220 RESONATOR - EXHAUST SYSTEM $1,266.21 To Order
LR120478 RESONATOR - EXHAUST SYSTEM $1,229.05 To Order
Photo Part No Description Price (each) Stock
LR036438 EXHAUST $36.71 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $80.06 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.15 To Order
Photo Part No Description Price (each) Stock
LR093418 INSULATOR - RUBBER $36.56 To Order
Photo Part No Description Price (each) Stock
LR105239 MUFFLER - REAR $840.68 To Order
Photo Part No Description Price (each) Stock
LR105240 MUFFLER - REAR $840.68 To Order
Photo Part No Description Price (each) Stock
LR088302 BRACKET - EXHAUST $30.53 To Order
Photo Part No Description Price (each) Stock
LR088295 BRACKET - EXHAUST $30.53 To Order
Photo Part No Description Price (each) Stock
LR082704 BRACKET - REAR MUFFLER $49.19 To Order
Photo Part No Description Price (each) Stock
LR082707 BRACKET - REAR MUFFLER $49.19 To Order
Photo Part No Description Price (each) Stock
LR110248 BRACKET - REAR MUFFLER $47.41 To Order
View All

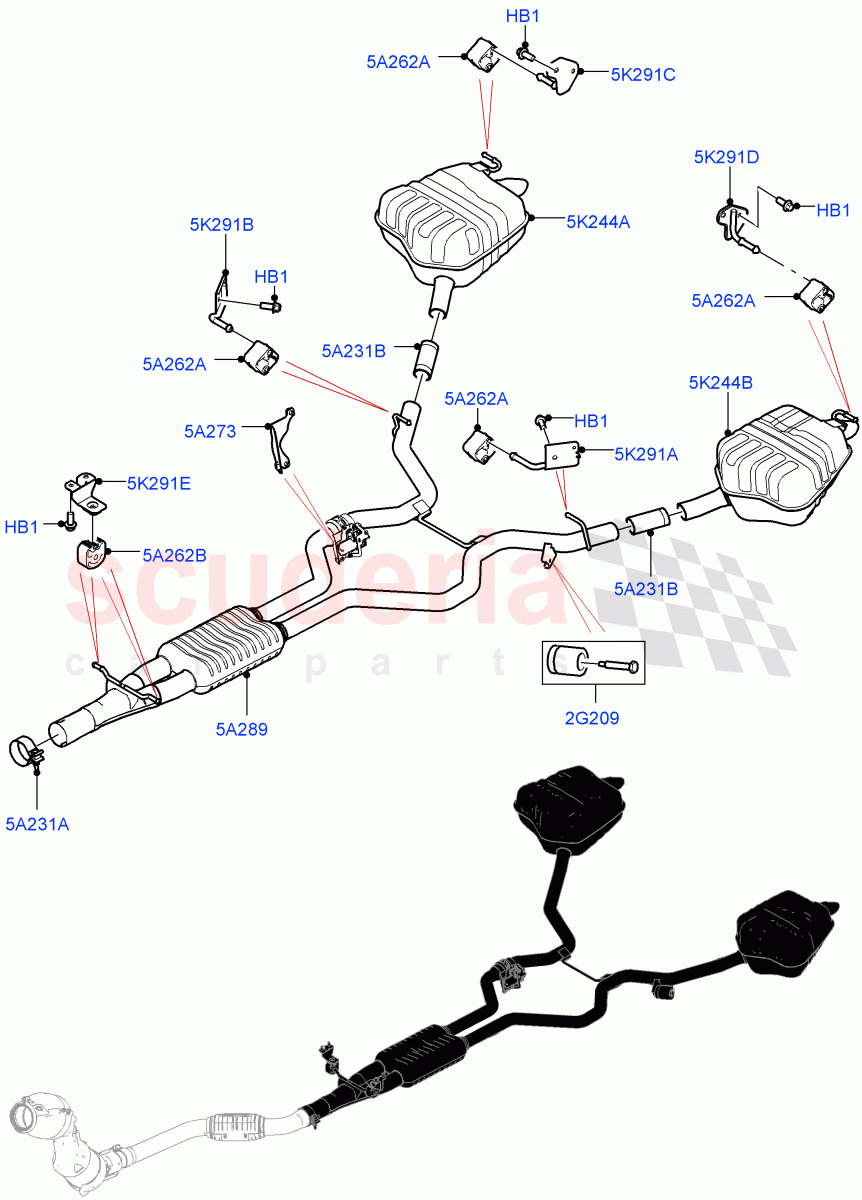

Rear Exhaust System (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: JA000001
IN STOCK 		$2.29 10
2G209 LR112283
DAMPER - DAMPING MASS
From: JA000001 		$86.34 1
5A231A LR036438
EXHAUST
60MM, Front / From: JA000001 		$36.71 1
5A231B WCL500020
CLAMP - EXHAUST
50MM, For Rear Muffler / From: JA000001 		$80.06 2
5A262A LR090360
INSULATOR - RUBBER
Rear And Center Locations / From: JA000001 		$24.15 4
5A262B LR093418
INSULATOR - RUBBER
Front, RH And LH / From: JA000001 		$36.56 2
5A273 LR113591
HEAT SHIELD - EXHAUST DAMPER
From: JA000001 		$18.03 1
5A289 LR105220
RESONATOR - EXHAUST SYSTEM
From: JA000001 / To: KA082965 		$1,266.21 1
5A289 LR120478
RESONATOR - EXHAUST SYSTEM
From: KA082966 		$1,229.05 1
5K244A LR105239
MUFFLER - REAR
RH / From: JA000001 		$840.68 1
5K244B LR105240
MUFFLER - REAR
LH / From: JA000001 		$840.68 1
5K291A LR088302
BRACKET - EXHAUST
LH Rear, RESONATOR / From: JA000001 		$30.53 1
5K291B LR088295
BRACKET - EXHAUST
RESONATOR, RH Rear / From: JA000001 		$30.53 1
5K291C LR082704
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: JA000001 		$49.19 1
5K291D LR082707
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: JA000001 		$49.19 1
5K291E LR110248
BRACKET - REAR MUFFLER
RESONATOR, RH And LH / From: JA000001 		$47.41 2
