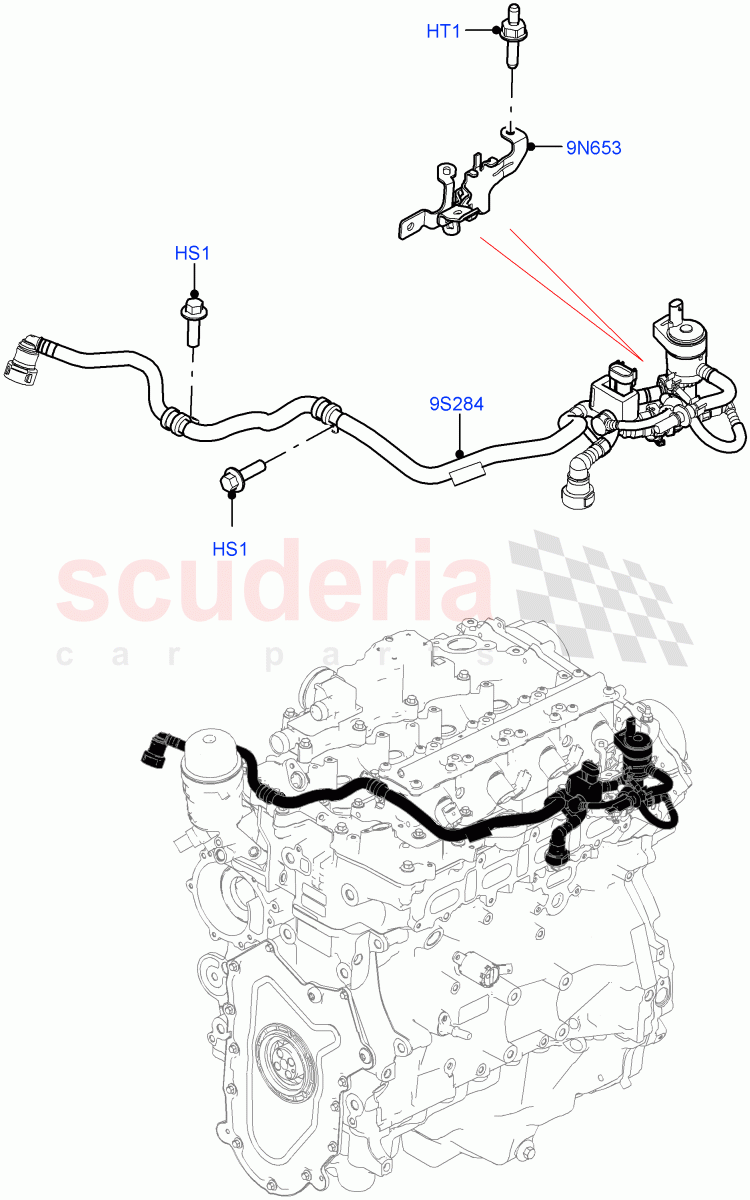

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	$4.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126845	BRACKET - FUEL TUBE SUPPORT	$33.31	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$1.61	2
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: M2000001	$4.02	1
9N653	LR126845	BRACKET - FUEL TUBE SUPPORT	LR126845 BRACKET - FUEL TUBE SUPPORT From: M2000001	$33.31	1
9S284	LR127869	TUBE - FUEL VAPOUR	LR127869 TUBE - FUEL VAPOUR From: M2000001 / To: N2459966	$161.90	1
9S284	LR162696	TUBE - FUEL VAPOUR	LR162696 TUBE - FUEL VAPOUR From: N2459967	$192.89	1
