Name: Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMKA000001, (V) TOLA999999)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMKA000001, (V) TOLA999999) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V)...

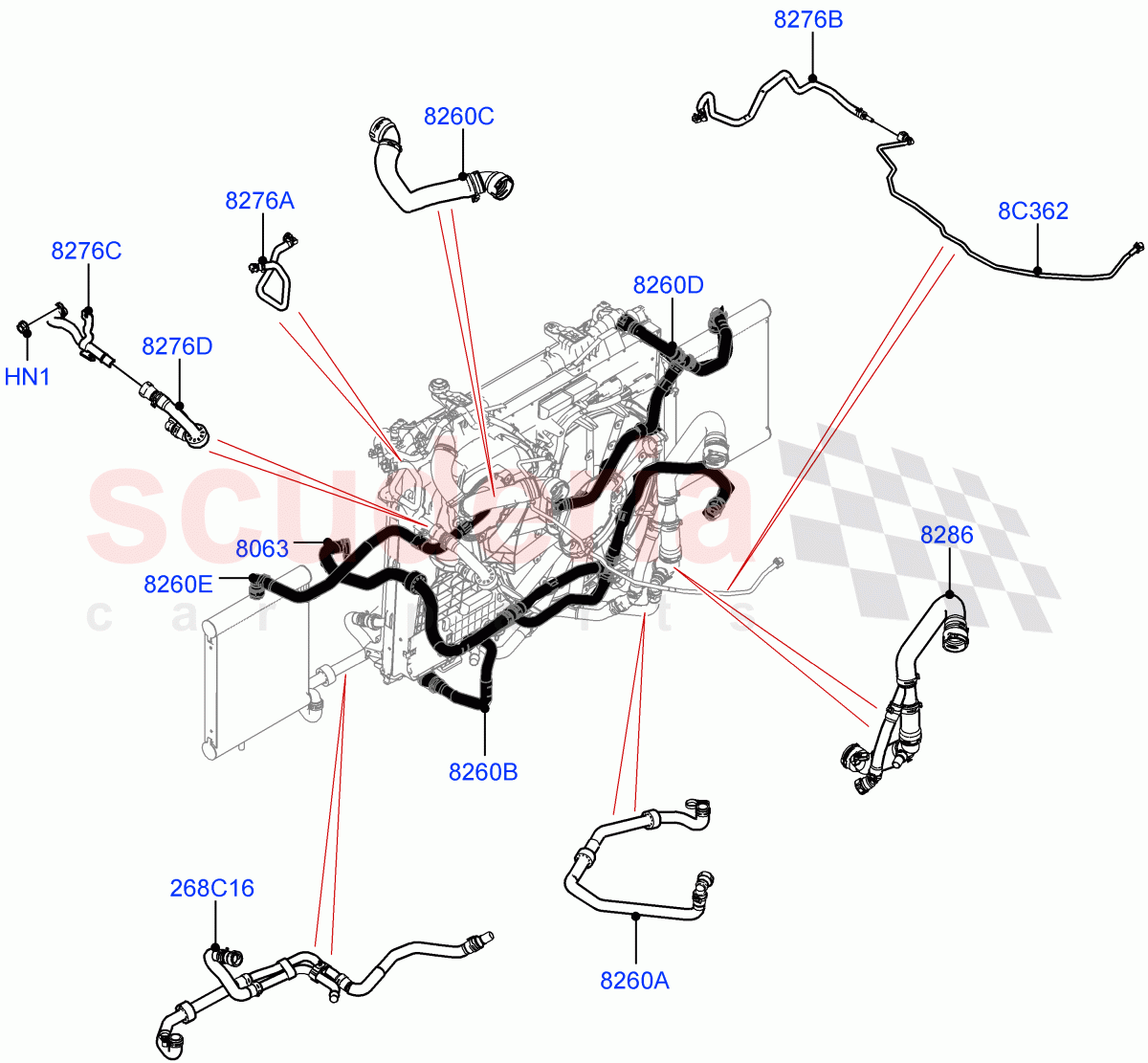

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR116475	HOSE - WATER	$160.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100083	HOSE - RADIATOR	$159.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108580	HOSE - WATER	$40.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095815	HOSE - HEATER WATER	$67.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100081	HOSE - RADIATOR	$72.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100137	HOSE - WATER	$106.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100138	HOSE - WATER	$66.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081658	HOSE - RADIATOR TO ENG. VENT ELBOW	$65.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100552	HOSE - COOLANT BLEED	$61.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100553	HOSE - WATER	$79.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100129	HOSE - WATER	$55.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100554	HOSE - COOLANT BLEED	$53.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100136	HOSE - WATER	$254.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.47	1
8C362	LR100554	HOSE - COOLANT BLEED	LR100554 HOSE - COOLANT BLEED From Engine To Expansion Tank / From: KA000001	$53.97	1
268C16	LR100136	HOSE - WATER	LR100136 HOSE - WATER LH, Auxiliary Radiator / From: KA000001	$254.63	1
8063	LR116475	HOSE - WATER	LR116475 HOSE - WATER From Engine To Expansion Tank / From: KA000001	$160.84	1
8260A	LR108580	HOSE - WATER	LR108580 HOSE - WATER RH, Auxiliary Radiator, Outlet / From: KA000001	$40.64	1
8260B	LR095815	HOSE - HEATER WATER	LR095815 HOSE - HEATER WATER From Transmission Oil Cooler To Radiator / From: KA000001	$67.01	1
8260C	LR100081	HOSE - RADIATOR	LR100081 HOSE - RADIATOR Radiator, Top / From: KA000001	$72.88	1
8260D	LR100137	HOSE - WATER	LR100137 HOSE - WATER RH, Auxiliary Radiator, Feed / From: KA000001	$106.21	1
8260E	LR100138	HOSE - WATER	LR100138 HOSE - WATER LH, Auxiliary Radiator, Feed / From: KA000001	$66.43	1
8276A	LR081658	HOSE - RADIATOR TO ENG. VENT ELBOW	LR081658 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator Degas Line / From: KA000001	$65.53	1
8276B	LR100552	HOSE - COOLANT BLEED	LR100552 HOSE - COOLANT BLEED To Expansion Tank / From: KA000001	$61.16	1
8276C	LR100553	HOSE - WATER	LR100553 HOSE - WATER Water Charge Air Cooler / From: KA000001	$79.66	1
8276D	LR100129	HOSE - WATER	LR100129 HOSE - WATER Intercooler Inlet / From: KA000001	$55.71	1
8286	LR100083	HOSE - RADIATOR	LR100083 HOSE - RADIATOR Lower, Radiator / From: KA000001	$159.48	1
