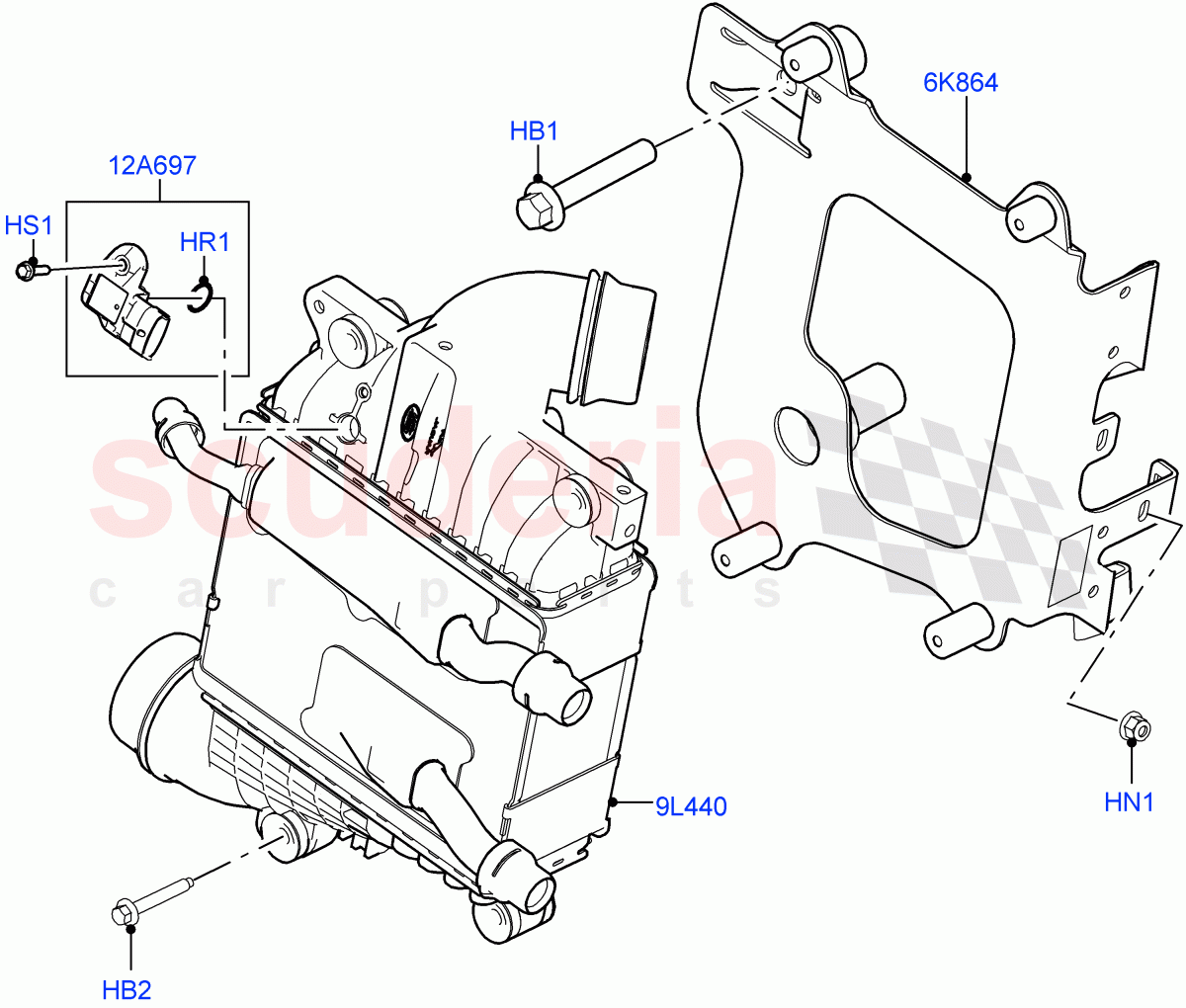

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092322	BOLT	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	$1.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082394	BRACKET - CHARGE AIR COOLER	$39.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092321	COOLER - ENGINE CHARGE AIR	$522.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$140.06	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR092322	BOLT	LR092322 BOLT Hexagonal Head, M12 X 70MM / From: JA000001	$4.43	2
HB2	LR001080	BOLT IN STOCK	LR001080 BOLT Hexagonal Head, Intercooler, M6 X 40MM / From: JA000001 IN STOCK	$1.37	4
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Bracket, Hexagonal Head, M6 / From: JA000001 IN STOCK	$0.60	1
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, With Air Charge Temperature Sensor / From: JA000001 IN STOCK	$4.68	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor - Air Charge Temperature / From: JA000001	$0.63	1
6K864	LR082394	BRACKET - CHARGE AIR COOLER	LR082394 BRACKET - CHARGE AIR COOLER From: JA000001	$39.66	1
9L440	LR092321	COOLER - ENGINE CHARGE AIR	LR092321 COOLER - ENGINE CHARGE AIR From: JA000001	$522.02	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE From: JA000001	$140.06	1
