Heater Hoses (Nitra Plant Build) (3.0L Aj20D6 Diesel High, Fuel Heater W/Pk Heat With Remote, With...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Heater Hoses (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Fuel Heater W/Pk Heat With Remote, With...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.45 IN STOCK
Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR137494 PUMP - WATER $186.57 To Order
LR148083 PUMP - WATER $208.03 To Order
Photo Part No Description Price (each) Stock
LR100018 HOSE - HEATER WATER $55.76 To Order
Photo Part No Description Price (each) Stock
LR125229 TUBE - HEATER WATER $290.65 To Order
Photo Part No Description Price (each) Stock
LR134992 BRACKET - PUMP SUPPORT $14.43 To Order
Photo Part No Description Price (each) Stock
LR125240 HOSE - WATER $125.09 To Order
View All

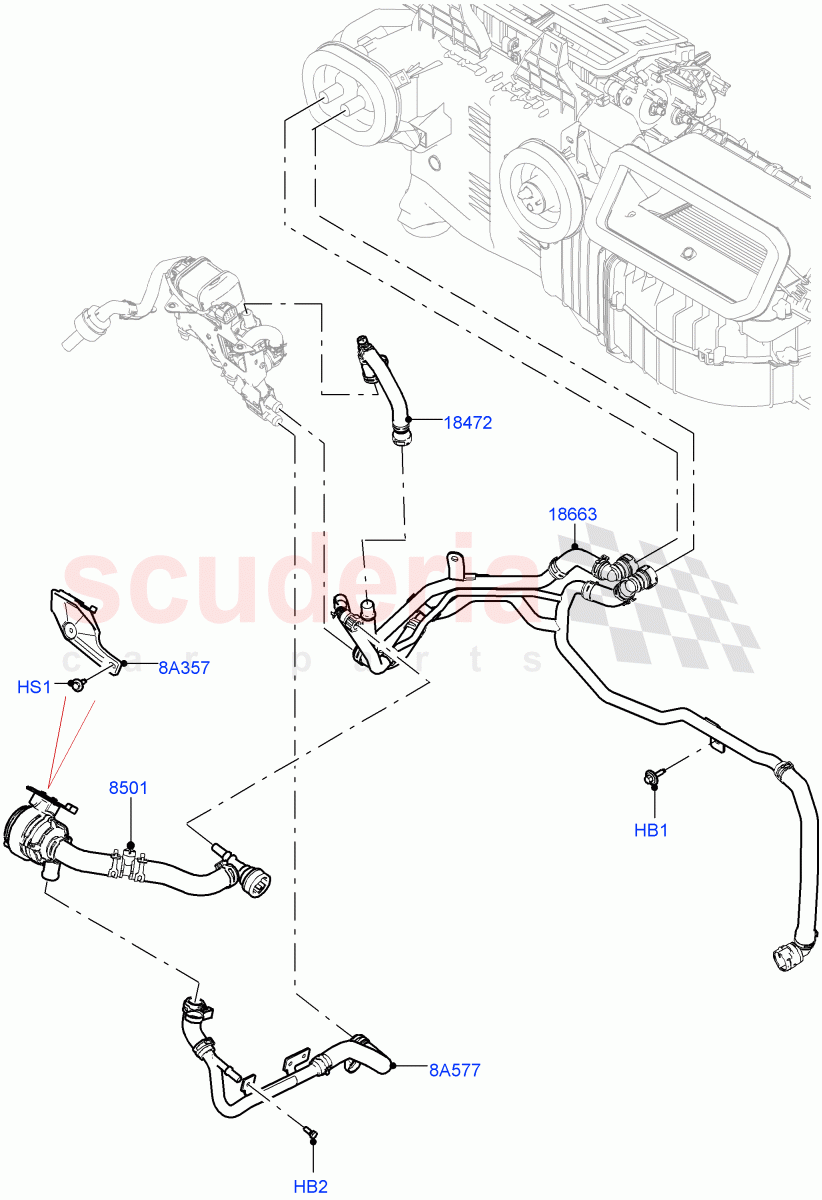

Heater Hoses (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Fuel Heater W/Pk Heat With Remote, With Air Conditioning - Front/Rear, With Front Comfort Air Con (IHKA), Fuel Fired Heater With Park Heat) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: M2000001
IN STOCK 		$1.45 3
HB2 RYG500800
BOLT
Hexagonal Head, M6 X 16MM / From: M2000001 		$0.52 2
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		$1.04 2
8A357 LR134992
BRACKET - PUMP SUPPORT
Water Pump / From: M2000001 		$14.43 1
8A577 LR125240
HOSE - WATER
Pump To Valve / From: M2000001 		$125.09 1
8501 LR137494
PUMP - WATER
With Hose / From: M2000001 / To: N2457014 		$186.57 1
8501 LR148083
PUMP - WATER
With Hose / From: N2457015 		$208.03 1
18472 LR100018
HOSE - HEATER WATER
To Fuel Fired Heater / From: M2000001 		$55.76 1
18663 LR125229
TUBE - HEATER WATER
From: M2000001 		$290.65 1
