Anti-Lock Braking System (Solihull Plant Build, Abs/Speed Sensor) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Anti-Lock Braking System (Solihull Plant Build, ABS/Speed Sensor) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.95 IN STOCK
Photo Part No Description Price (each) Stock
FS106126M BOLT $1.18 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.72 IN STOCK
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.76 IN STOCK
Photo Part No Description Price (each) Stock
LR081609 SENSOR - ABS $177.70 To Order
Photo Part No Description Price (each) Stock
LR081610 SENSOR - ABS $74.17 To Order
Photo Part No Description Price (each) Stock
LR033463 BRACKET - ABS SENSOR MOUNTING $11.24 To Order
LR033465 BRACKET - ABS SENSOR MOUNTING $11.24 To Order
Photo Part No Description Price (each) Stock
LR033458 BRACKET - SENSOR MOUNTING $59.96 To Order
LR033459 BRACKET - SENSOR MOUNTING $59.96 To Order
Photo Part No Description Price (each) Stock
LR033304 BRACKET - ABS SENSOR MOUNTING $6.94 To Order
View All

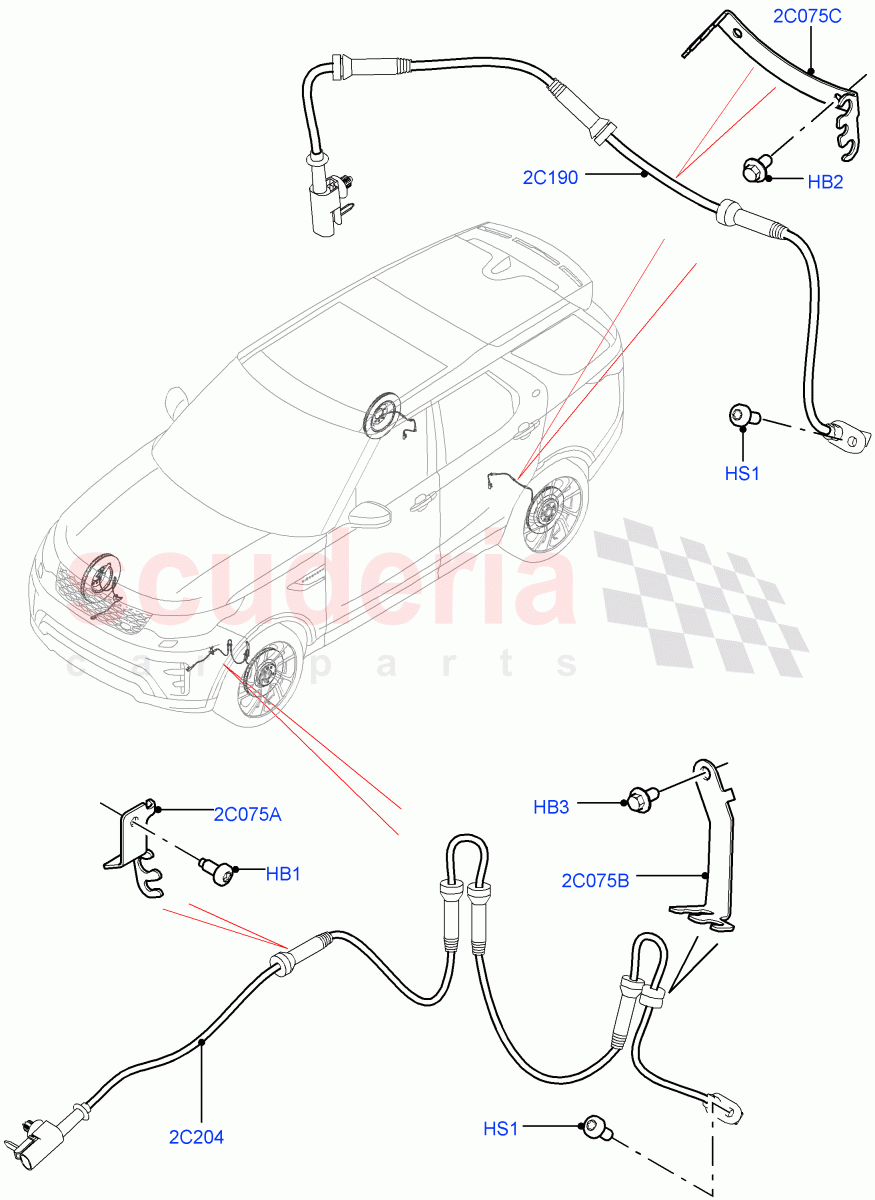

Anti-Lock Braking System (Solihull Plant Build, ABS/Speed Sensor) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 XYG500160
BOLT
M6 x 12MM, Torx
IN STOCK 		$0.95 2
HB2 FS106126M
BOLT
Hexagonal Head, M6 x 12MM 		$1.18 4
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.72 2
HS1 RYP500920
SCREW
M6 X 14MM, Torx
IN STOCK 		$0.76 4
2C075A LR033463
BRACKET - ABS SENSOR MOUNTING
LH, Front, Inner 		$11.24 1
2C075A LR033465
BRACKET - ABS SENSOR MOUNTING
RH, Front, Inner 		$11.24 1
2C075B LR033458
BRACKET - SENSOR MOUNTING
LH, Front, Outer 		$59.96 1
2C075B LR033459
BRACKET - SENSOR MOUNTING
RH, Front, Outer 		$59.96 1
2C075C LR033304
BRACKET - ABS SENSOR MOUNTING
Rear, RH/LH 		$6.94 2
2C190 LR081609
SENSOR - ABS
ABS, Rear 		$177.70 2
2C204 LR081610
SENSOR - ABS 		$74.17 2

Haven't found what you're looking for?
