Name: Cylinder Head (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)
Rating: 4.5 (1 reviews)

Cylinder Head (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Cylinder Head (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) ((V)...

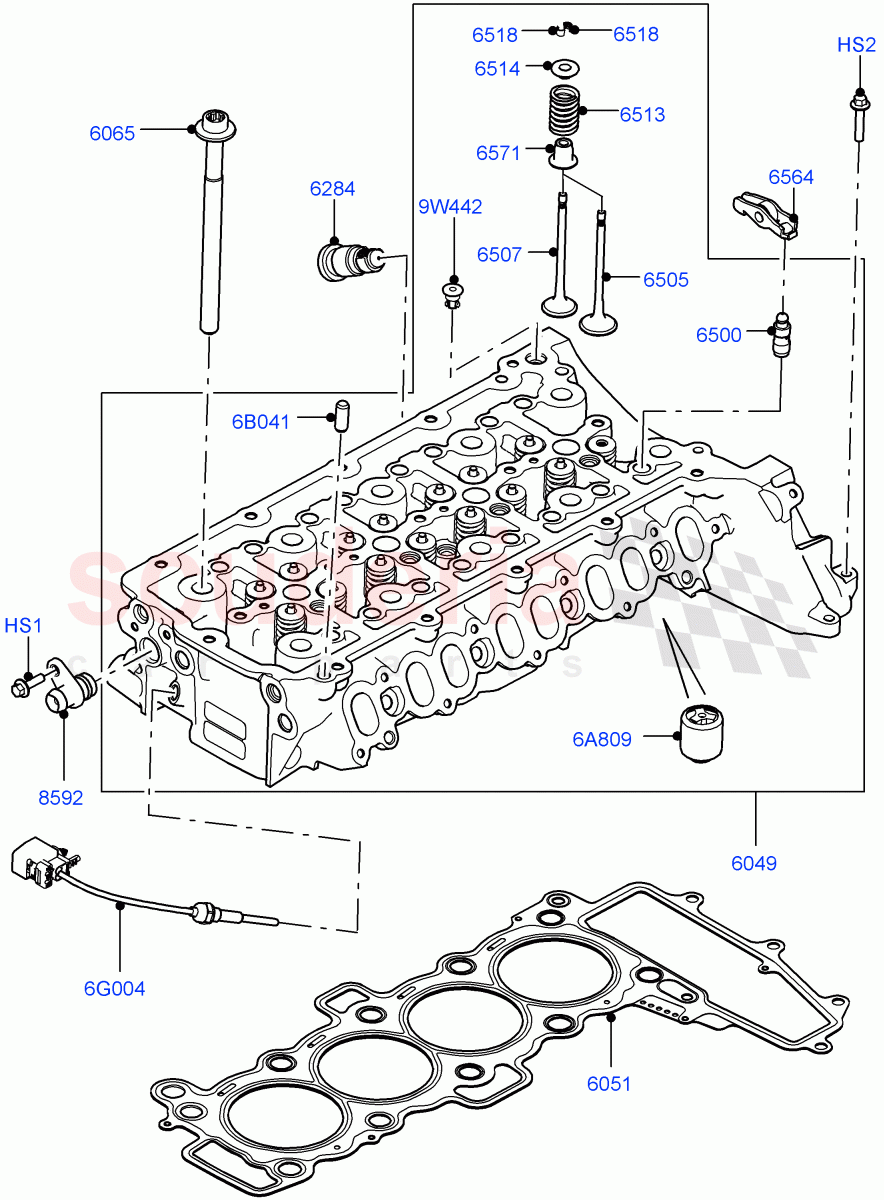

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073645	CYLINDER HEAD	$3,383.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073638	GASKET - CYLINDER HEAD	$137.44	To Order
	LR073639	GASKET - CYLINDER HEAD	$137.44	To Order
	LR073640	GASKET-CYLINDER HEAD	$137.44	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073643	BOLT - HEX.HEAD	$7.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084294	TENSIONER - TIMING BELT	$145.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	$50.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073779	VALVE - EXHAUST	$27.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073780	VALVE - INLET	$27.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073772	SPRING - VALVE	$13.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073773	RETAINER - VALVE SPRING - UPPER	$20.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073775	ARM - VALVE ROCKER	$53.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073776	SEAL - VALVE STEM	$8.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073690	TUBE - WATER OUTLET	$9.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	$9.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073651	DOWEL - PIN	$3.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	$63.23	To Order
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	$49.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	$24.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM, Outlet pipe IN STOCK	$1.60	1
HS2	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM IN STOCK	$2.66	4
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK	$9.65	1
6B041	LR073651	DOWEL - PIN	LR073651 DOWEL - PIN 8 x 19MM	$3.83	2
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / To: JA051993	$63.23	1
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature / From: JA051994	$49.91	1
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain	$24.78	1
6049	LR073645	CYLINDER HEAD	LR073645 CYLINDER HEAD With Valves	$3,383.10	1
6051	LR073638	GASKET - CYLINDER HEAD	LR073638 GASKET - CYLINDER HEAD 1.30MM, Grade 1	$137.44	1
6051	LR073639	GASKET - CYLINDER HEAD	LR073639 GASKET - CYLINDER HEAD 1.40MM, Grade 2	$137.44	1
6051	LR073640	GASKET-CYLINDER HEAD	LR073640 GASKET-CYLINDER HEAD 1.50MM, Grade 3	$137.44	1
6051	LR073641	GASKET - CYLINDER HEAD	LR073641 GASKET - CYLINDER HEAD 1.60MM, Grade 4	$137.44	1
6051	LR073642	GASKET - CYLINDER HEAD	LR073642 GASKET - CYLINDER HEAD 1.70MM, Grade 5	$137.44	1
6065	LR073643	BOLT - HEX.HEAD	LR073643 BOLT - HEX.HEAD	$7.29	10
6284	LR084294	TENSIONER - TIMING BELT IN STOCK	LR084294 TENSIONER - TIMING BELT Secondary IN STOCK	$145.40	1
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE	$50.96	16
6505	LR073779	VALVE - EXHAUST	LR073779 VALVE - EXHAUST	$27.16	8
6507	LR073780	VALVE - INLET	LR073780 VALVE - INLET	$27.52	8
6513	LR073772	SPRING - VALVE	LR073772 SPRING - VALVE	$13.15	16
6514	LR073773	RETAINER - VALVE SPRING - UPPER	LR073773 RETAINER - VALVE SPRING - UPPER	$20.23	16
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER	$3.33	32
6564	LR073775	ARM - VALVE ROCKER	LR073775 ARM - VALVE ROCKER	$53.93	16
6571	LR073776	SEAL - VALVE STEM	LR073776 SEAL - VALVE STEM	$8.16	16
8592	LR073690	TUBE - WATER OUTLET	LR073690 TUBE - WATER OUTLET	$9.53	1
