Fuel Tank & Related Parts (2.2L Cr Di 16V Diesel)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Fuel Tank & Related Parts (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT $1.98 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $1.01 To Order
LR115125 RETAINER - RIVET $1.02 To Order
Photo Part No Description Price (each) Stock
LR060829 TANK - FUEL $1,192.81 To Order
LR072675 TANK - FUEL $1,192.81 To Order
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER $36.08 To Order
LR107022 CAP - FUEL TANK FILLER $35.80 To Order
LR112190 CAP - FUEL TANK FILLER $35.11 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060851 PIPE - FUEL FILLER $163.09 To Order
LR060850 PIPE - FUEL FILLER $164.05 To Order
LR072672 PIPE - FUEL FILLER $152.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061054 HOSE - FILLER PIPE $48.30 To Order
LR061055 HOSE - FILLER PIPE $48.28 To Order
Photo Part No Description Price (each) Stock
LR060352 HOSE - VENT $72.51 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.54 IN STOCK
Photo Part No Description Price (each) Stock
LR060831 STRAP - FUEL TANK $89.65 To Order
Photo Part No Description Price (each) Stock
LR063940 STRAP - FUEL TANK $89.65 To Order
Photo Part No Description Price (each) Stock
LR068231 HEAT SHIELD - PROPSHAFT BEARING $29.30 To Order
LR077096 HEAT SHIELD - PROPSHAFT BEARING $69.37 To Order
Photo Part No Description Price (each) Stock
LR076312 SHIELD - FUEL TANK $193.42 To Order
Photo Part No Description Price (each) Stock
LR038796 Ring - Retaining Enquire To Order
Photo Part No Description Price (each) Stock
LR063975 MOULDING - FUEL TANK PROTECTION $16.86 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $26.20 To Order
Photo Part No Description Price (each) Stock
LR060825 FOAM PAD - ENERGY ABSORBING $10.58 To Order
Photo Part No Description Price (each) Stock
LR060826 FOAM PAD - ENERGY ABSORBING $10.58 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $23.32 To Order
View All

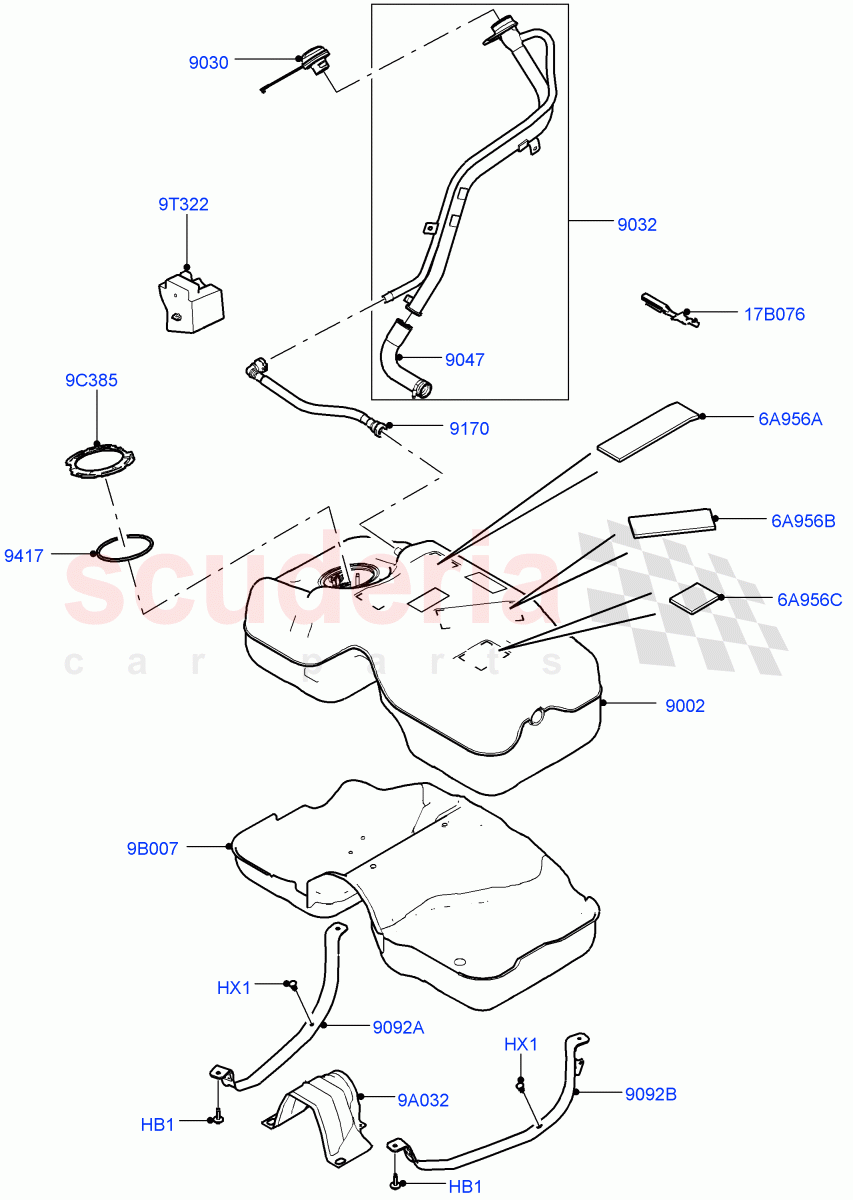

Fuel Tank & Related Parts (2.2L CR DI 16V Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501020
BOLT
Fuel Tank Strap, M8 X 30MM
IN STOCK 		$1.98 4
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / To: JH762920 		$1.01 2
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH762921 		$1.02 2
6A956A LR060825
FOAM PAD - ENERGY ABSORBING 		$10.58 1
6A956B LR060826
FOAM PAD - ENERGY ABSORBING 		$10.58 1
6A956C LR025789
FOAM PAD - ENERGY ABSORBING 		$23.32 1
9A032 LR068231
HEAT SHIELD - PROPSHAFT BEARING
To: FH543634 		$29.30 1
9A032 LR077096
HEAT SHIELD - PROPSHAFT BEARING
From: FH543635 		$69.37 1
9B007 LR076312
SHIELD - FUEL TANK
Bottom, Fuel Tank 		$193.42 1
9C385 LR038796
Ring - Retaining 		- 1 Enquire
9T322 LR063975
MOULDING - FUEL TANK PROTECTION 		$16.86 1
17B076 LR014047
RESTRICTOR - FUEL 		$26.20 1
9002 LR060829
TANK - FUEL
To: FH511118 		$1,192.81 1
9002 LR072675
TANK - FUEL
From: FH511119 		$1,192.81 1
9030 LR021560
CAP - FUEL TANK FILLER
To: FH500396 		$36.08 1
9030 LR107022
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: JH000001 / To: KH802728 		$35.80 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KH802729 / To: MH889842 		$35.11 1
9030 LR053666
CAP - FUEL TANK FILLER
From: FH500397 / To: HH999999 		$27.95 1
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: JH000001 		$27.95 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: MH889843 		$39.22 1
9032 LR060851
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / To: FH502158 		$163.09 1
9032 LR060850
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / To: FH502158 		$164.05 1
9032 LR072672
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: FH502159 		$152.29 1
9032 LR072673
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: FH502159 		$168.38 1
9032 LR083729
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: GH000001 		$279.34 1
9047 LR061054
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL 		$48.30 1
9047 LR061055
HOSE - FILLER PIPE
Fuel Tank Filler Neck - All Nozzles 		$48.28 1
9092A LR060831
STRAP - FUEL TANK
RH 		$89.65 1
9092B LR063940
STRAP - FUEL TANK
LH 		$89.65 1
9170 LR060352
HOSE - VENT 		$72.51 1
9417 LR117476
GASKET
O-Ring
IN STOCK 		$10.54 1
