Turbocharger (2.2L Cr Di 16V Diesel) ((V) Frombh000001)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Turbocharger (2.2L CR DI 16V Diesel) ((V) FROMBH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR021746 BOLT - HEX.HEAD $5.11 To Order
Photo Part No Description Price (each) Stock
LR006812 BOLT - BANJO $12.95 To Order
Photo Part No Description Price (each) Stock
LR019628 BOLT - HEX.HEAD $1.78 To Order
Photo Part No Description Price (each) Stock
LR002839 BOLT $1.81 To Order
Photo Part No Description Price (each) Stock
LR002853 BOLT - HEX.HEAD $5.85 To Order
Photo Part No Description Price (each) Stock
LR023174 BOLT $7.29 To Order
Photo Part No Description Price (each) Stock
LR019985 STUD $6.01 To Order
Photo Part No Description Price (each) Stock
LR019984 NUT - HEX. $4.32 To Order
Photo Part No Description Price (each) Stock
LR025919 TUBE - WATER OUTLET $146.05 To Order
Photo Part No Description Price (each) Stock
LR013022 RING - SEALING $13.68 To Order
Photo Part No Description Price (each) Stock
LR045473 PIPE - OIL FEED $87.79 To Order
Photo Part No Description Price (each) Stock
LR065510 TURBOCHARGER $2,303.11 To Order
LR065511 TURBOCHARGER $1,542.26 To Order
Photo Part No Description Price (each) Stock
LR023208 GASKET - TURBOCHARGER $8.85 IN STOCK
Photo Part No Description Price (each) Stock
LR069003 BRACKET - TURBOCHARGER $68.28 To Order
Photo Part No Description Price (each) Stock
LR023175 WASHER - BANJO BOLT $12.19 IN STOCK
Photo Part No Description Price (each) Stock
LR025920 GASKET - EXHAUST MANIFOLD $23.20 To Order
Photo Part No Description Price (each) Stock
LR016682 FILTER - TURBOCHARGER OIL FEED $54.55 To Order
Photo Part No Description Price (each) Stock
LR022101 HOSE - OIL RETURN $180.44 To Order
Photo Part No Description Price (each) Stock
LR009341 HOSE - CONNECTING $22.59 To Order
View All

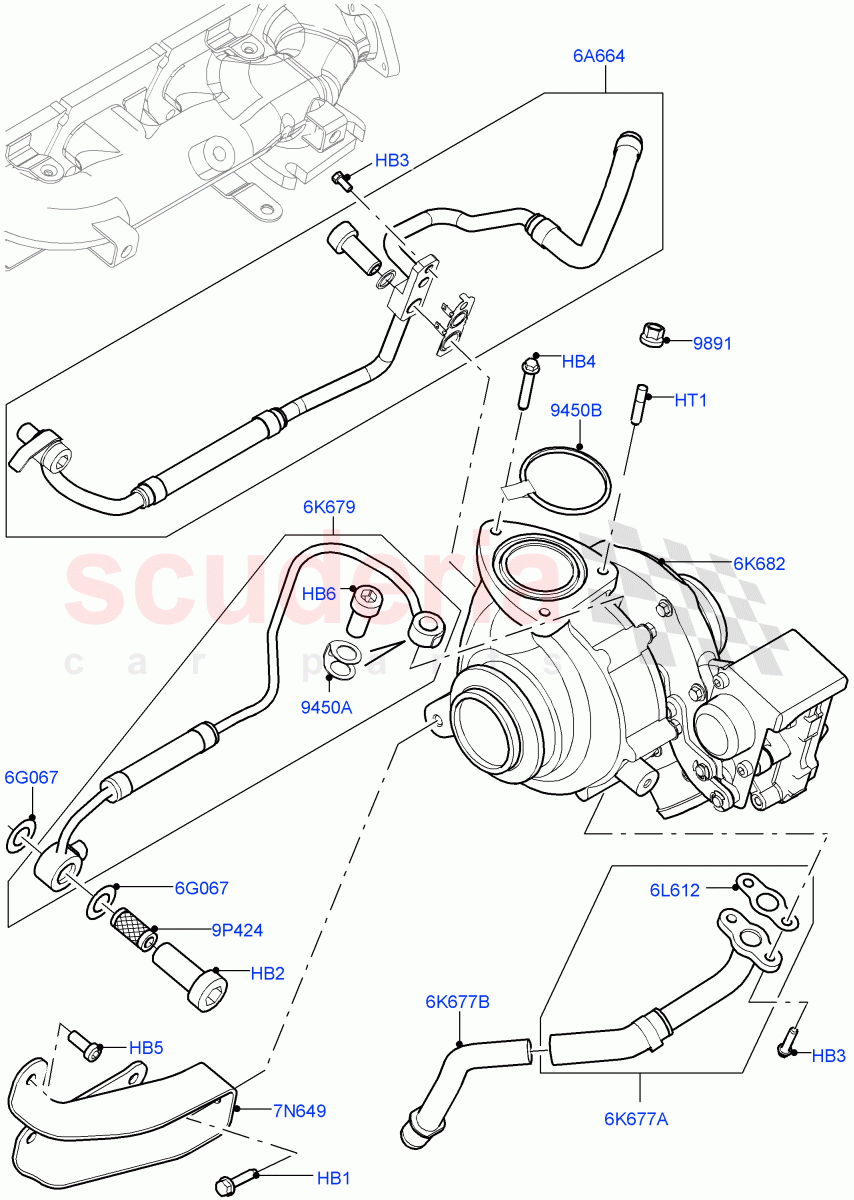

Turbocharger (2.2L CR DI 16V Diesel) ((V) FROMBH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR021746
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M8 x 50MM, Turbocharger Assembly 		$5.11 1
HB2 LR006812
BOLT - BANJO
Banjo Bolt 		$12.95 1
HB3 LR019628
BOLT - HEX.HEAD
Hexagonal Head, M6 X 16MM 		$1.78 3
HB4 LR002839
BOLT
M8 X 35MM, Turbocharger Assembly 		$1.81 1
HB5 LR002853
BOLT - HEX.HEAD
Bracket, M8 X 20MM(TORX) 		$5.85 3
HB6 LR023174
BOLT
Feed, Hose Assy 		$7.29 1
HT1 LR019985
STUD
M8 x 10MM, M8 X 25MM, Turbocharger Assembly 		$6.01 2
6A664 LR025919
TUBE - WATER OUTLET
Cooling For Turbocharger 		$146.05 1
6G067 LR013022
RING - SEALING
Filter - Turbocharger Oil Feed Hose 		$13.68 2
6K677A LR022101
HOSE - OIL RETURN
Upper 		$180.44 1
6K677B LR009341
HOSE - CONNECTING
Lower 		$22.59 1
6K679 LR045473
PIPE - OIL FEED 		$87.79 1
6K682 LR065510
TURBOCHARGER
New Part-Please Check For Reman Version 		$2,303.11 1
6K682 LR065511
TURBOCHARGER
Remanufactured Part 		$1,542.26 1
6L612 LR023208
GASKET - TURBOCHARGER
Oil - Drain
IN STOCK 		$8.85 1
7N649 LR069003
BRACKET - TURBOCHARGER 		$68.28 1
9P424 LR016682
FILTER - TURBOCHARGER OIL FEED 		$54.55 1
9450A LR023175
WASHER - BANJO BOLT
Turbocharger Oil Feed
IN STOCK 		$12.19 1
9450B LR025920
GASKET - EXHAUST MANIFOLD
Exhaust Manifold 		$23.20 1
9891 LR019984
NUT - HEX.
Turbocharger Assembly 		$4.32 2
