| Photo | Part No | Description | Price (each) | Stock |
 |
LR024636 | CLAMP - HOSE | $15.55 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
FX108046 | NUT - LOCKING | $0.40 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
 |
FS106166 | SCREW | $1.24 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
RYP500810 | SCREW | $0.63 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR063942 | DUCT - AIR | $598.15 | To Order |
|
LR110361 | DUCT - AIR | $607.12 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR063944 | HOSE - INTERCOOLER | $108.30 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR031466 | INTERCOOLER | $244.42 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR021587 | SENSOR - AIR TEMPERATURE & PRESSURE | $65.01 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR066436 | HOSE - INTERCOOLER | $203.66 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR024632 | HOSE - TURBOCHARGER INLET | $165.40 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HD1 |
LR024636 CLAMP - HOSE 50-70MM |
$15.55 | 2 | |
| HN1 |
FX108046 NUT - LOCKING M8 IN STOCK |
$0.40 | 1 | |
| HS1 |
FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK |
$1.24 | 3 | |
| HS2 |
RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor |
$0.63 | 1 | |
| 6C646 |
LR063942 DUCT - AIR Turbocharger To Intercooler / To: GH561842 |
$598.15 | 1 | |
| 6C646 |
LR110361 DUCT - AIR Turbocharger To Intercooler / From: GH561843 / To: GH999999 |
$607.12 | 1 | |
| 6K683A |
LR066436 HOSE - INTERCOOLER |
$203.66 | 1 | |
| 6K683B |
LR024632 HOSE - TURBOCHARGER INLET Connection, Turbocharger Outlet |
$165.40 | 1 | |
| 9B613 |
LR063944 HOSE - INTERCOOLER Connection, Intercooler Inlet |
$108.30 | 1 | |
| 9L440 |
LR031466 INTERCOOLER |
$244.42 | 1 | |
| 12A697 |
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure |
$65.01 | 1 |
Haven't found what you're looking for?

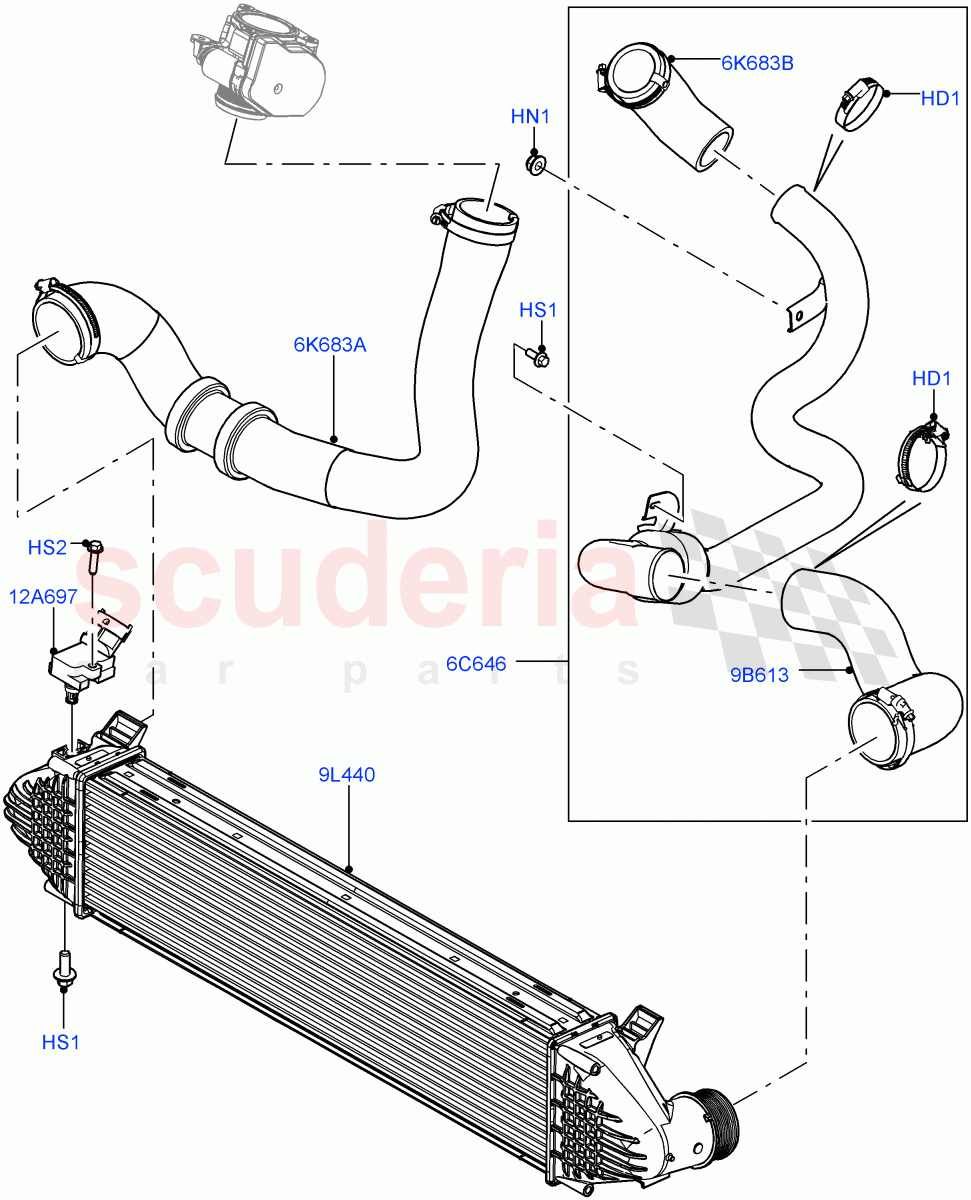

![Intercooler/Air Ducts And Hoses (2.2L CR DI 16V Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]](/images/diagrams/landrover/4UUQHMP9T4H8S6SEN292.gif)
