Pulleys And Drive Belts (2.2L Cr Di 16V Diesel)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Pulleys And Drive Belts (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000067 BOLT - HEX.HEAD $1.16 To Order
Photo Part No Description Price (each) Stock
LR013188 SPACER - WASHER $15.30 To Order
Photo Part No Description Price (each) Stock
LR060071 BELT - ACCESSORY DRIVE $58.07 To Order
Photo Part No Description Price (each) Stock
LR003651 PULLEY - TENSION $135.63 To Order
Photo Part No Description Price (each) Stock
LR000645 BOLT - HEX.HEAD $10.05 To Order
Photo Part No Description Price (each) Stock
LR022091 PULLEY - CRANKSHAFT $200.63 To Order
Photo Part No Description Price (each) Stock
LR022656 TRIGGER WHEEL - CAMSHAFT TIMING $71.32 To Order
Photo Part No Description Price (each) Stock
LR028875 INSULATOR - ENGINE COMPARTMENT $30.06 To Order
Photo Part No Description Price (each) Stock
LR033968 SEALANT - ADHESIVE $62.84 To Order
Photo Part No Description Price (each) Stock
LR033969 SEALANT - ADHESIVE $183.69 To Order
Photo Part No Description Price (each) Stock
STC50550 SEALER - ADHESIVE PAN/ENGINE $19.83 To Order
View All

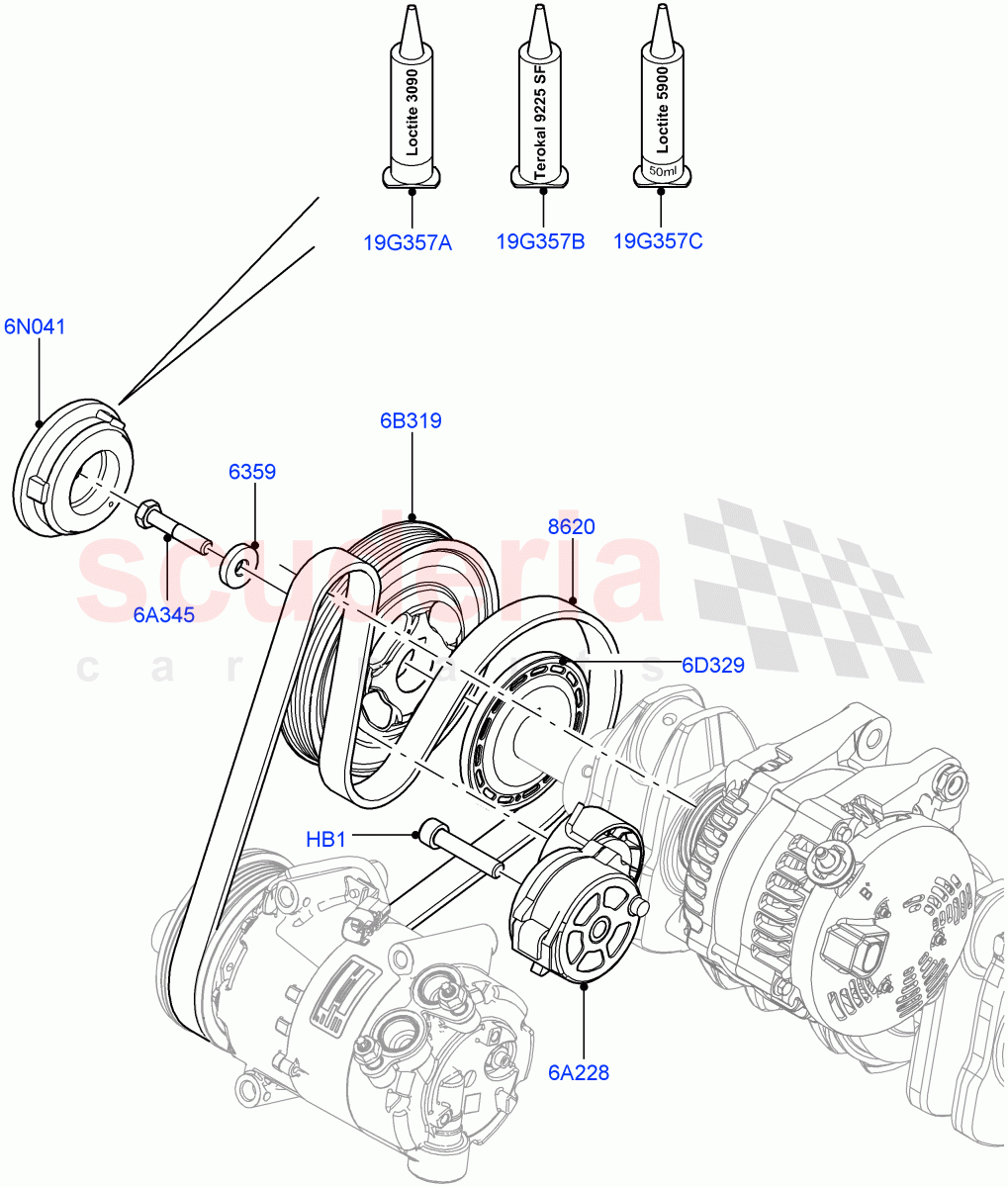

Pulleys And Drive Belts (2.2L CR DI 16V Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000067
BOLT - HEX.HEAD
M10 X 50MM, Torx 		$1.16 2
6A228 LR003651
PULLEY - TENSION
Drive Belt Dynamic Tensioner 		$135.63 1
6A345 LR000645
BOLT - HEX.HEAD
M14 X 150MM, Pulley - Crankshaft 		$10.05 1
6B319 LR022091
PULLEY - CRANKSHAFT 		$200.63 1
6D329 LR022656
TRIGGER WHEEL - CAMSHAFT TIMING
CPS - Trigger Pulley 		$71.32 1
6N041 LR028875
INSULATOR - ENGINE COMPARTMENT
2.2L CR DI 16V Diesel / Engine, NVH Bung - Crankshaft Vibration Damper 		$30.06 1
19G357A LR033968
SEALANT - ADHESIVE
10 G, Loctite 3090 Adhesive, NVH Bung - Crankshaft Vibration Damper 		$62.84 1
19G357B LR033969
SEALANT - ADHESIVE
50 ML, NVH Bung - Crankshaft Vibration Damper, Terokal-9225 SF Adhesive 		$183.69 1
19G357C STC50550
SEALER - ADHESIVE PAN/ENGINE
50 ML, For Professional Use Only, Loctite 5900, NVH Bung - Crankshaft Vibration Damper 		$19.83 1
6359 LR013188
SPACER - WASHER 		$15.30 1
8620 LR060071
BELT - ACCESSORY DRIVE 		$58.07 1
