Name: Rear Seat Base (Halewood (UK), Third Row Dual Individual Seat, With 3rd Row Double Seat)
Rating: 4.3 (1 reviews)

View All

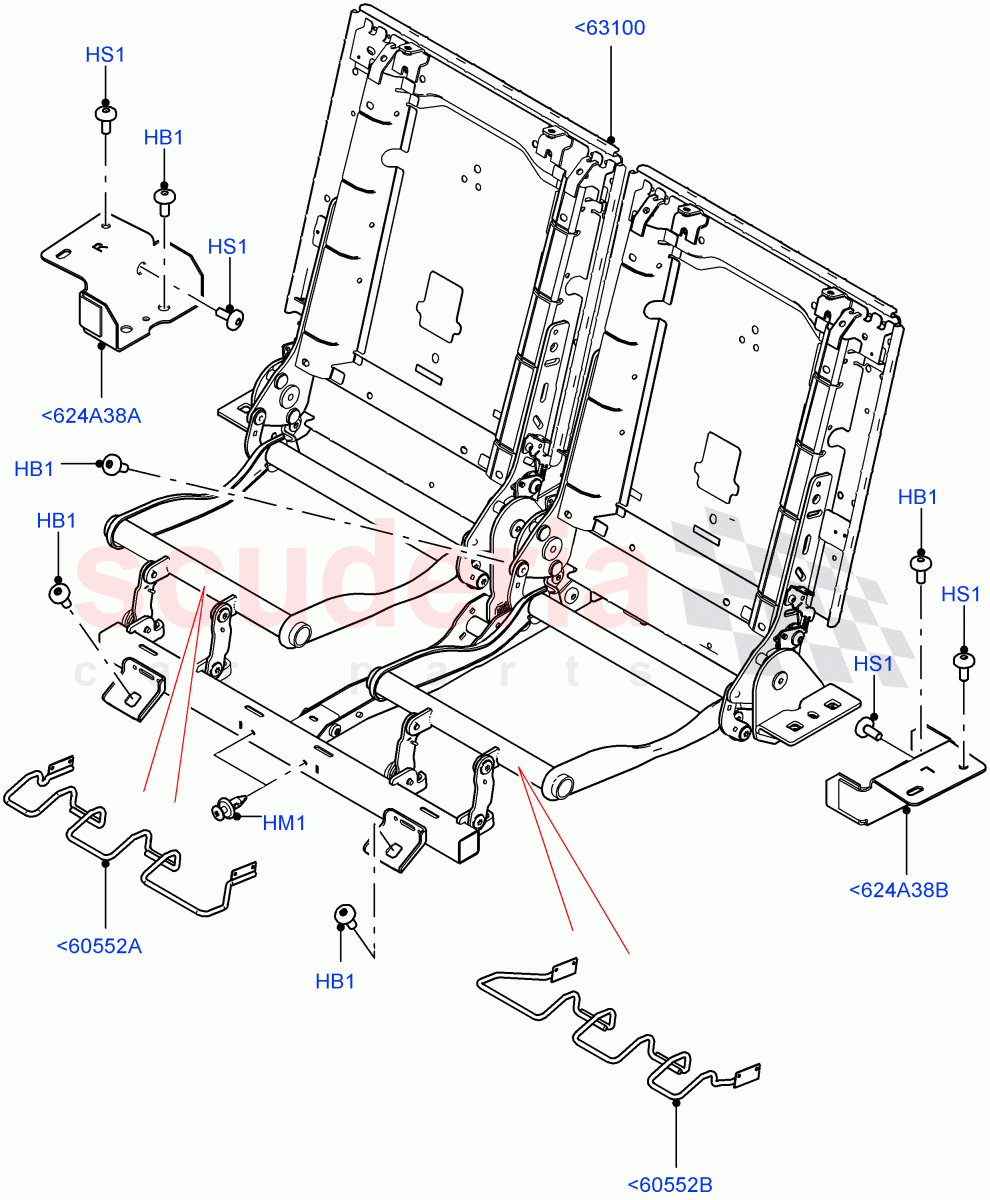

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001920	BOLT	$2.02	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500220	SCREW	$1.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060752	FRAME - REAR SEAT BACK RETAINING	$1,260.77	To Order
	LR077387	FRAME - REAR SEAT BACK RETAINING	$1,287.39	To Order
	LR078861	FRAME - REAR SEAT BACK RETAINING	$1,293.25	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR065790	SUPPORT - REAR SEAT CUSHION	$63.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065811	SUPPORT - REAR SEAT CUSHION	$63.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060753	BRACKET - SEAT MOUNTING	$33.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060754	BRACKET - SEAT MOUNTING	$34.56	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<624A38A	LR060753	BRACKET - SEAT MOUNTING	LR060753 BRACKET - SEAT MOUNTING RH	$33.42	1
<624A38B	LR060754	BRACKET - SEAT MOUNTING	LR060754 BRACKET - SEAT MOUNTING LH	$34.56	1
<60552A	LR065790	SUPPORT - REAR SEAT CUSHION	LR065790 SUPPORT - REAR SEAT CUSHION RH	$63.64	1
<60552B	LR065811	SUPPORT - REAR SEAT CUSHION	LR065811 SUPPORT - REAR SEAT CUSHION LH	$63.64	1
<63100	LR060752	FRAME - REAR SEAT BACK RETAINING	LR060752 FRAME - REAR SEAT BACK RETAINING To: FH526849	$1,260.77	1
<63100	LR077387	FRAME - REAR SEAT BACK RETAINING	LR077387 FRAME - REAR SEAT BACK RETAINING From: FH526850 / To: GH546104	$1,287.39	1
<63100	LR078861	FRAME - REAR SEAT BACK RETAINING	LR078861 FRAME - REAR SEAT BACK RETAINING From: GH546105 / To: HH697827	$1,293.25	1
<63100	LR096017	FRAME - REAR SEAT BACK RETAINING	LR096017 FRAME - REAR SEAT BACK RETAINING From: HH697828	$1,122.09	1
HB1	LR001920	BOLT	LR001920 BOLT M10 X 25MM	$2.02	10
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER 6.25 x 1.6/6MM / From: LH000001 IN STOCK	$0.61	2
HS1	RYP500220	SCREW	RYP500220 SCREW M10 X 25MM	$1.98	6

Rear Seat Base (Halewood (Uk), Third Row Dual Individual Seat, With 3Rd Row Double Seat)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]
