Front Brake Discs And Calipers (Halewood (Uk), Disc And Caliper Size-Frt 18/Rr 17, Disc And Caliper...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Brake Discs And Calipers (Halewood (UK), Disc And Caliper Size-Frt 18/RR 17, Disc And Caliper...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR131782 BOLT - HEX. HEAD - FLANGED $1.89 To Order
LR139520 BOLT $1.72 To Order
Photo Part No Description Price (each) Stock
LR090697 BOLT $3.54 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR115006 DISC - BRAKE - VENTED $203.33 To Order
LR161912 DISC - BRAKE - VENTED $210.96 IN STOCK
Photo Part No Description Price (each) Stock
LR091308 BRAKE PADS - LESS SPRINGS $256.77 To Order
LR140696 BRAKE PADS - WITH SPRINGS $256.01 To Order
LR160477 BRAKE PADS - WITH SPRINGS $272.94 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.74 IN STOCK
LR140694 SCREW - BLEED $5.44 To Order
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $24.72 To Order
LR140733 COVER - DUST $24.72 To Order
Photo Part No Description Price (each) Stock
LR090821 GREASE - CHASSIS LUBRICATION $8.32 To Order
Photo Part No Description Price (each) Stock
LR091302 CALIPER - BRAKE - LESS PADS $532.21 To Order
LR091303 CALIPER - BRAKE - LESS PADS $532.21 To Order
LR133945 CALIPER - BRAKE - LESS PADS $286.43 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114030 BRACKET - BRAKE CALIPER $151.05 To Order
LR114034 BRACKET - BRAKE CALIPER $143.02 To Order
LR133942 BRACKET - BRAKE CALIPER $222.50 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091306 KIT - LOCATING PIN BOLTS $21.57 To Order
LR140649 KIT - LOCATING PIN BOLTS $21.01 To Order
Photo Part No Description Price (each) Stock
LR118812 SHIELD - SPLASH $63.80 To Order
LR118811 SHIELD - SPLASH $63.80 To Order
Photo Part No Description Price (each) Stock
LR140731 CAP - BLEED SCREW $4.48 To Order
STC1913 CAP - BLEED SCREW $6.16 IN STOCK
Photo Part No Description Price (each) Stock
LR086604 KIT - CALIPER BRAKE PAD MTG PARTS $30.73 To Order
LR140732 KIT - CALIPER BRAKE PAD MTG PARTS $34.42 To Order
Photo Part No Description Price (each) Stock
LR115018 WIRE - BRAKE PAD WEAR WARNING $40.17 To Order
Photo Part No Description Price (each) Stock
LR091307 BRACKET - WIRING $32.38 To Order
Photo Part No Description Price (each) Stock
LR115017 BRACKET - WIRING $25.28 To Order
LR115016 BRACKET - WIRING $26.55 To Order
View All

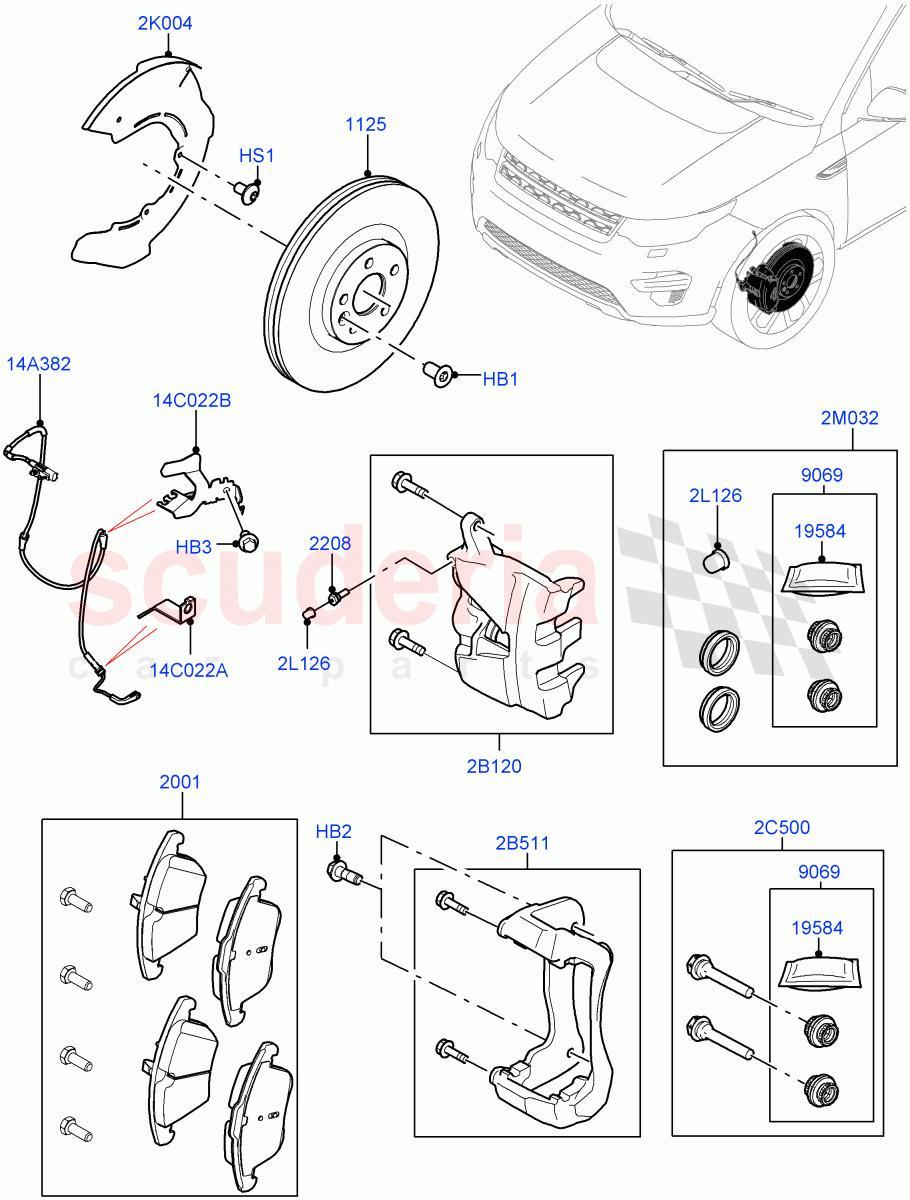

Front Brake Discs And Calipers (Halewood (UK), Disc And Caliper Size-Frt 18/RR 17, Disc And Caliper Size-Frt 18/RR 16) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR131782
BOLT - HEX. HEAD - FLANGED
M8 X 12, Torx / From: LH000001 / To: LH869038 		$1.89 2
HB1 LR139520
BOLT
M8 X 12, Torx / From: LH869039 		$1.72 2
HB2 LR090697
BOLT
Hexagonal Head, M14 X 43mm / From: LH000001 		$3.54 4
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: LH000001
IN STOCK 		$0.68 2
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: LH000001
IN STOCK 		$1.24 6
2B120 LR091302
CALIPER - BRAKE - LESS PADS
With Non Painted Brake Calipers / RH, For 18" Brakes / From: LH000001 / To: LH999999 		$532.21 1
2B120 LR091303
CALIPER - BRAKE - LESS PADS
With Non Painted Brake Calipers / LH, For 18" Brakes / From: LH000001 / To: LH999999 		$532.21 1
2B120 LR133945
CALIPER - BRAKE - LESS PADS
Brake Calipers - Red / LH, For 18" Brakes / From: LH000001 / To: LH999999 		$286.43 1
2B120 LR133944
CALIPER - BRAKE
Brake Calipers - Red / RH, For 18" Brakes / From: LH000001 / To: LH999999 		$414.97 1
2B120 LR140647
CALIPER - BRAKE
With Non Painted Brake Calipers / LH, For 18" Brakes / From: MH000001 		$395.20 1
2B120 LR140645
CALIPER - BRAKE
With Non Painted Brake Calipers / RH, For 18" Brakes / From: MH000001 		$372.58 1
2B120 LR140646
CALIPER - BRAKE
Brake Calipers - Red / RH, For 18" Brakes / From: MH000001 		$349.72 1
2B120 LR140648
CALIPER - BRAKE
Brake Calipers - Red / LH, For 18" Brakes / From: MH000001 		$395.20 1
2B511 LR114030
BRACKET - BRAKE CALIPER
With Non Painted Brake Calipers / RH / From: LH000001 / To: LH999999 		$151.05 1
2B511 LR114034
BRACKET - BRAKE CALIPER
With Non Painted Brake Calipers / LH / From: LH000001 / To: LH999999 		$143.02 1
2B511 LR133942
BRACKET - BRAKE CALIPER
Brake Calipers - Red / RH / From: LH000001 / To: LH999999 		$222.50 1
2B511 LR133943
BRACKET - BRAKE CALIPER
Brake Calipers - Red / LH / From: LH000001 / To: LH999999 		$201.63 1
2B511 LR140643
BRACKET - BRAKE CALIPER
With Non Painted Brake Calipers / RH/LH / From: MH000001 		$211.71 2
2B511 LR140644
BRACKET - BRAKE CALIPER
Brake Calipers - Red / RH/LH / From: MH000001 		$211.71 2
2C500 LR091306
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / From: LH000001 / To: LH999999 		$21.57 2
2C500 LR140649
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / From: MH000001 		$21.01 2
2K004 LR118812
SHIELD - SPLASH
RH / From: LH000001 		$63.80 1
2K004 LR118811
SHIELD - SPLASH
LH / From: LH000001 		$63.80 1
2L126 LR140731
CAP - BLEED SCREW
From: MH000001 		$4.48 2
2L126 STC1913
CAP - BLEED SCREW
From: LH000001 / To: LH999999
IN STOCK 		$6.16 2
2M032 LR086604
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set / From: LH000001 / To: LH999999 		$30.73 2
2M032 LR140732
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set / From: MH000001 		$34.42 2
14A382 LR115018
WIRE - BRAKE PAD WEAR WARNING
From: LH000001 		$40.17 1
14C022A LR091307
BRACKET - WIRING
Mounted To Caliper / From: LH000001 		$32.38 1
14C022B LR115017
BRACKET - WIRING
LH, Front, Mounted To Damper / From: LH000001 		$25.28 1
14C022B LR115016
BRACKET - WIRING
RH, Front, Mounted To Damper / From: LH000001 		$26.55 1
1125 LR115006
DISC - BRAKE - VENTED
349MM, For 18" Brakes, RH/LH / From: LH000001 / To: MH900491 		$203.33 2
1125 LR161912
DISC - BRAKE - VENTED
349MM, For 18" Brakes, RH/LH / From: MH900492
IN STOCK 		$210.96 2
2001 LR091308
BRAKE PADS - LESS SPRINGS
Axle Set, For 18" Brakes, Less Clips, Standard Performance / From: LH000001 / To: LH879189 		$256.77 1
2001 LR140696
BRAKE PADS - WITH SPRINGS
Axle Set, For 18" Brakes, Less Clips, Standard Performance / From: MH000001 / To: MH902266 		$256.01 1
2001 LR160477
BRAKE PADS - WITH SPRINGS
Axle Set, For 18" Brakes, Less Clips, Standard Performance / From: MH902267 		$272.94 1
2001 LR164029
BRAKE PADS - LESS SPRINGS
Axle Set, For 18" Brakes, Less Clips, Standard Performance / From: LH879190 / To: LH999999 		$256.77 1
2001 LR140729
BRAKE PADS - WITH SPRINGS
Axle Set, Dealer Fit Only, For 18" Brakes, High Performance, Less Clips / From: MH000001 		$317.99 1
2208 LR015523
SCREW - BLEED
From: LH000001 / To: LH999999
IN STOCK 		$6.74 2
2208 LR140694
SCREW - BLEED
From: MH000001 		$5.44 2
9069 LR015525
COVER - DUST
Boot / From: LH000001 / To: LH999999 		$24.72 2
9069 LR140733
COVER - DUST
Boot / From: MH000001 		$24.72 2
19584 LR090821
GREASE - CHASSIS LUBRICATION
From: LH000001 		$8.32 1
