Crankshaft/Pistons And Bearings (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Crankshaft/Pistons And Bearings (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V)...

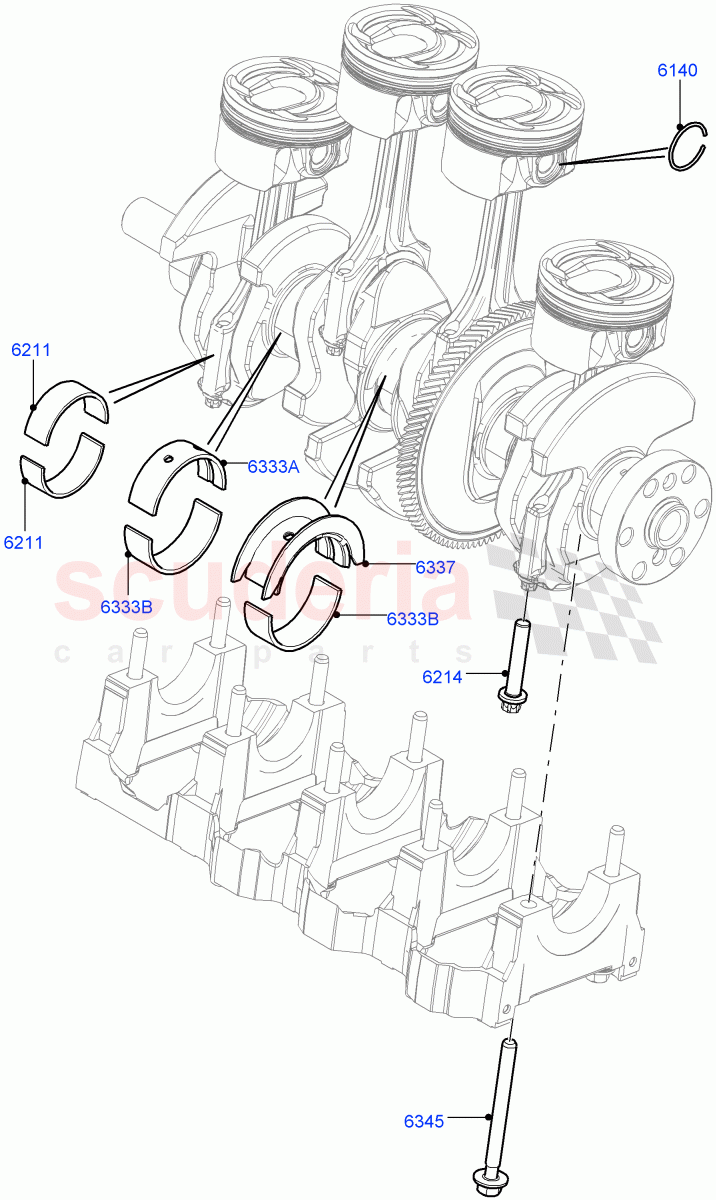

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024980	RETAINER - PISTON PIN	$6.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051455	BEARING - CONNECTING ROD	$14.67	To Order
	LR051456	BEARING - CONNECTING ROD	$15.11	To Order
	LR051459	BEARING - CONNECTING ROD	$15.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028862	BOLT - CONNECTING ROD	$7.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025037	BEARING - CRANKSHAFT MAIN THRUST	$13.97	To Order
	LR025038	BEARING - CRANKSHAFT MAIN THRUST	$13.97	To Order
	LR025039	BEARING - CRANKSHAFT MAIN THRUST	$13.97	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024985	BOLT - BEARING CAP - HEX. HEAD	$2.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR053418	BEARING - CRANKSHAFT MAIN	$13.50	To Order
	LR053419	BEARING - CRANKSHAFT MAIN	$13.50	To Order
	LR053420	BEARING - CRANKSHAFT MAIN	$13.50	IN STOCK

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR057282	BEARING - CRANKSHAFT MAIN	$13.69	To Order
	LR057283	BEARING - CRANKSHAFT MAIN	$13.50	To Order
	LR057284	BEARING - CRANKSHAFT MAIN	$13.50	IN STOCK

...and 4 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6140	LR024980	RETAINER - PISTON PIN	LR024980 RETAINER - PISTON PIN From: FG000001	$6.13	8
6211	LR051455	BEARING - CONNECTING ROD	LR051455 BEARING - CONNECTING ROD Green / From: FG000001	$14.67	-
6211	LR051456	BEARING - CONNECTING ROD	LR051456 BEARING - CONNECTING ROD Blue / From: FG000001	$15.11	-
6211	LR051459	BEARING - CONNECTING ROD	LR051459 BEARING - CONNECTING ROD Red / From: FG000001	$15.11	-
6214	LR028862	BOLT - CONNECTING ROD	LR028862 BOLT - CONNECTING ROD Connecting Rod, M9 X 1.0 X 40 / From: FG000001	$7.08	8
6333A	LR053418	BEARING - CRANKSHAFT MAIN	LR053418 BEARING - CRANKSHAFT MAIN Green / From: FG000001	$13.50	-
6333A	LR053419	BEARING - CRANKSHAFT MAIN	LR053419 BEARING - CRANKSHAFT MAIN Blue / From: FG000001	$13.50	-
6333A	LR053420	BEARING - CRANKSHAFT MAIN IN STOCK	LR053420 BEARING - CRANKSHAFT MAIN Red / From: FG000001 IN STOCK	$13.50	-
6333A	LR053421	BEARING - CRANKSHAFT MAIN	LR053421 BEARING - CRANKSHAFT MAIN Brown / Brown / From: FG000001	$13.50	-
6333A	LR053422	BEARING - CRANKSHAFT MAIN IN STOCK	LR053422 BEARING - CRANKSHAFT MAIN Yellow / From: FG000001 IN STOCK	$13.50	-
6333A	LR053423	BEARING - CRANKSHAFT MAIN	LR053423 BEARING - CRANKSHAFT MAIN Black / From: FG000001	$13.50	-
6333A	LR053424	BEARING - CRANKSHAFT MAIN	LR053424 BEARING - CRANKSHAFT MAIN Blue / Green / From: FG000001	$13.50	-
6333B	LR057282	BEARING - CRANKSHAFT MAIN	LR057282 BEARING - CRANKSHAFT MAIN Green / From: FG000001	$13.69	-
6333B	LR057283	BEARING - CRANKSHAFT MAIN	LR057283 BEARING - CRANKSHAFT MAIN Blue / From: FG000001	$13.50	-
6333B	LR057284	BEARING - CRANKSHAFT MAIN IN STOCK	LR057284 BEARING - CRANKSHAFT MAIN Red / From: FG000001 IN STOCK	$13.50	-
6333B	LR057285	BEARING - CRANKSHAFT MAIN IN STOCK	LR057285 BEARING - CRANKSHAFT MAIN Brown / Brown / From: FG000001 IN STOCK	$13.50	-
6333B	LR057286	BEARING - CRANKSHAFT MAIN	LR057286 BEARING - CRANKSHAFT MAIN Yellow / From: FG000001	$13.50	-
6333B	LR057287	BEARING - CRANKSHAFT MAIN	LR057287 BEARING - CRANKSHAFT MAIN Black / From: FG000001	$13.50	-
6333B	LR057288	BEARING - CRANKSHAFT MAIN	LR057288 BEARING - CRANKSHAFT MAIN Blue / Green / From: FG000001	$13.50	-
6337	LR025037	BEARING - CRANKSHAFT MAIN THRUST	LR025037 BEARING - CRANKSHAFT MAIN THRUST Green / From: FG000001	$13.97	1
6337	LR025038	BEARING - CRANKSHAFT MAIN THRUST	LR025038 BEARING - CRANKSHAFT MAIN THRUST Blue / From: FG000001	$13.97	1
6337	LR025039	BEARING - CRANKSHAFT MAIN THRUST	LR025039 BEARING - CRANKSHAFT MAIN THRUST Red / From: FG000001	$13.97	1
6337	LR025040	BEARING - CRANKSHAFT MAIN THRUST	LR025040 BEARING - CRANKSHAFT MAIN THRUST Brown / Brown / From: FG000001	$13.97	1
6337	LR025041	BEARING - CRANKSHAFT MAIN THRUST	LR025041 BEARING - CRANKSHAFT MAIN THRUST Yellow / From: FG000001	$13.97	1
6337	LR025043	BEARING - CRANKSHAFT MAIN THRUST	LR025043 BEARING - CRANKSHAFT MAIN THRUST Blue / Green / From: FG000001	$13.97	1
6337	LR025042	BEARING - CRANKSHAFT MAIN THRUST	LR025042 BEARING - CRANKSHAFT MAIN THRUST Black / From: FG000001	$13.97	1
6337	LR045195	BEARING - CRANKSHAFT MAIN THRUST	LR045195 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Green / From: FG000001	$19.87	1
6337	LR045196	BEARING - CRANKSHAFT MAIN THRUST	LR045196 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Blue / From: FG000001	$19.87	1
6337	LR045197	BEARING - CRANKSHAFT MAIN THRUST	LR045197 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Red / From: FG000001	$15.25	1
6337	LR045198	BEARING - CRANKSHAFT MAIN THRUST	LR045198 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Brown / Brown / From: FG000001	$19.87	1
6337	LR045199	BEARING - CRANKSHAFT MAIN THRUST	LR045199 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Yellow / From: FG000001	$19.87	1
6337	LR045200	BEARING - CRANKSHAFT MAIN THRUST	LR045200 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Black / From: FG000001	$18.46	1
6337	LR045201	BEARING - CRANKSHAFT MAIN THRUST	LR045201 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Blue / Green / From: FG000001	$19.87	1
6345	LR024985	BOLT - BEARING CAP - HEX. HEAD IN STOCK	LR024985 BOLT - BEARING CAP - HEX. HEAD M10 X 1.25 X 106 / From: FG000001 IN STOCK	$2.71	10

Crankshaft/Pistons And Bearings (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V)...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Crankshaft/Pistons And Bearings (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V)...
