Heater/Air Cond.external Components (Main Unit) (Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Heater/Air Cond.External Components (Main Unit) (Halewood (UK)) ((V) TOKH999999)

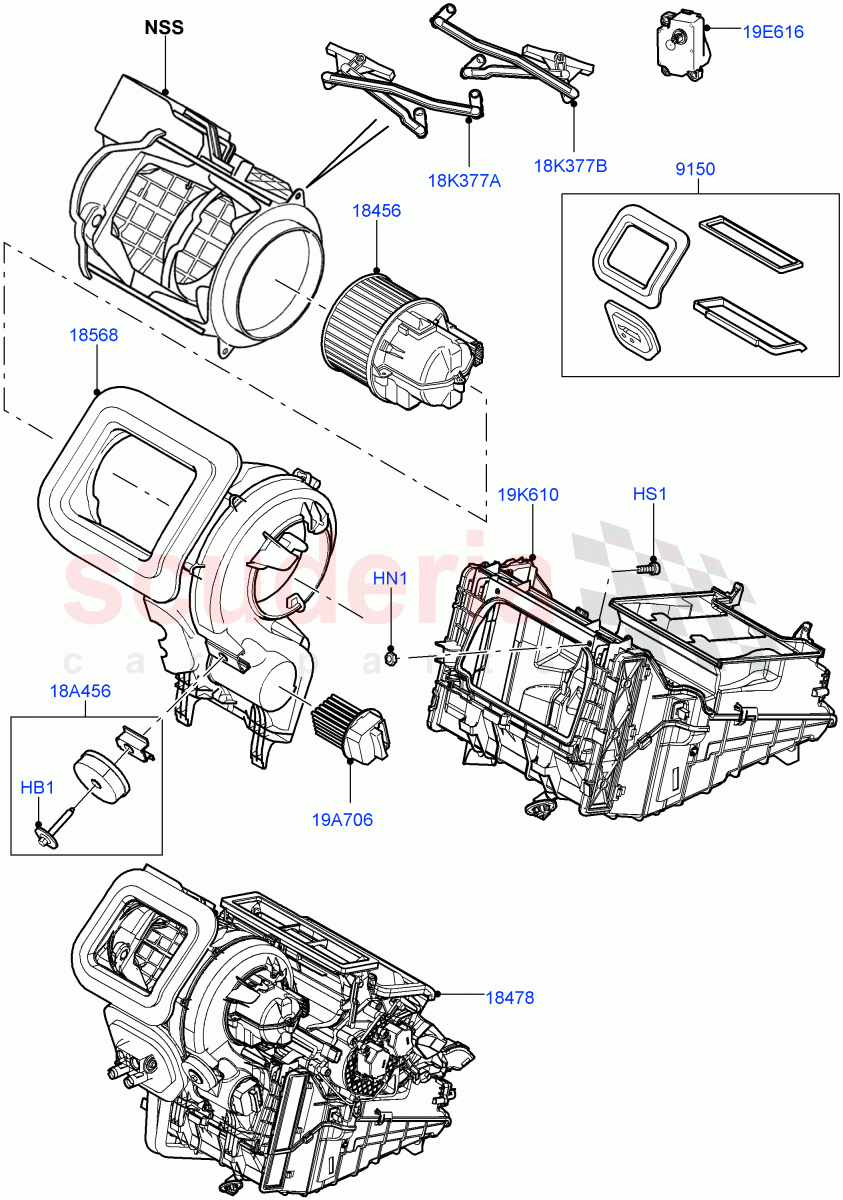

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005381 BOLT AND WASHER - HEX.HEAD $1.38 To Order
Photo Part No Description Price (each) Stock
LR001088 NUT $3.93 To Order
Photo Part No Description Price (each) Stock
LR001090 SCREW $4.13 To Order
Photo Part No Description Price (each) Stock
LR066930 KIT - SEAL $39.30 To Order
LR084756 KIT - SEAL $33.50 To Order
Photo Part No Description Price (each) Stock
LR066917 MOTOR AND FAN - BLOWER $137.57 To Order
LR066918 MOTOR AND FAN - BLOWER $157.76 To Order
Photo Part No Description Price (each) Stock
LR094335 HEATER & EVAPORATOR UNIT $1,465.37 To Order
LR094336 HEATER & EVAPORATOR UNIT $1,596.48 To Order
LR094337 HEATER & EVAPORATOR UNIT $1,361.07 To Order
...and 41 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR066920 HOUSING - HEATER BLOWER $124.22 To Order
LR066921 HOUSING - HEATER BLOWER $112.21 To Order
Photo Part No Description Price (each) Stock
LR003561 BRACKET - HEATER MOUNTING $23.66 To Order
Photo Part No Description Price (each) Stock
LR066932 RESISTOR - HEATER BLOWER MOTOR $422.90 To Order
LR094345 RESISTOR - HEATER BLOWER MOTOR $422.90 To Order
Photo Part No Description Price (each) Stock
LR066927 STEPPER MOTOR - HEATER $94.88 To Order
LR066927 STEPPER MOTOR - HEATER $94.88 To Order
LR115829 STEPPER MOTOR - HEATER $147.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR066928 HOUSING - A/C EVAPORATOR AND BLOWER $99.82 To Order
LR066929 HOUSING - A/C EVAPORATOR AND BLOWER $112.24 To Order
Photo Part No Description Price (each) Stock
LR003173 LEVER - CONTROL - AIR DISTRIBUTION $6.85 To Order
Photo Part No Description Price (each) Stock
LR002681 LEVER - CONTROL - AIR DISTRIBUTION $7.10 To Order
View All
Heater/Air Cond.External Components (Main Unit) (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005381
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 X 40MM 		$1.38 1
HN1 LR001088
NUT
3.5MM, With Spring Nut 		$3.93 2
HS1 LR001090
SCREW
3.5 x 16MM, Torx 		$4.13 2
18A456 LR003561
BRACKET - HEATER MOUNTING
Service Kit 		$23.66 1
18K377A LR003173
LEVER - CONTROL - AIR DISTRIBUTION
LHD 		$6.85 1
18K377B LR002681
LEVER - CONTROL - AIR DISTRIBUTION
RHD 		$7.10 1
19A706 LR066932
RESISTOR - HEATER BLOWER MOTOR
Blower Motor / To: HH999999 		$422.90 1
19A706 LR094345
RESISTOR - HEATER BLOWER MOTOR
Blower Motor / From: JH000001 		$422.90 1
19E616 LR066927
STEPPER MOTOR - HEATER
ATC Air Conditioning / To: JH774170 		$94.88 5
19E616 LR066927
STEPPER MOTOR - HEATER
With Manual Air Conditioning / To: JH774170 		$94.88 3
19E616 LR115829
STEPPER MOTOR - HEATER
ATC Air Conditioning / From: JH774171 		$147.82 5
19E616 LR115829
STEPPER MOTOR - HEATER
With Manual Air Conditioning / From: JH774171 		$147.82 3
19K610 LR066928
HOUSING - A/C EVAPORATOR AND BLOWER
LHD / Heater Assy 		$99.82 1
19K610 LR066929
HOUSING - A/C EVAPORATOR AND BLOWER
RHD / Heater Assy 		$112.24 1
9150 LR066930
KIT - SEAL
Set Of 4 Pieces / To: HH642781 		$39.30 1
9150 LR084756
KIT - SEAL
Set Of 4 Pieces / From: HH642782 		$33.50 1
18456 LR066917
MOTOR AND FAN - BLOWER
LHD 		$137.57 1
18456 LR066918
MOTOR AND FAN - BLOWER
RHD 		$157.76 1
18478 LR094335
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With Manual Air Conditioning / From: JH000001 / To: JH761654 		$1,465.37 1
18478 LR094336
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With Manual Air Conditioning / From: JH000001 / To: JH761654 		$1,596.48 1
18478 LR094337
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, Less Air Purifier Sensor, Less Pollution Sensor / From: JH000001 / To: JH761654 		$1,361.07 1
18478 LR094338
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With Front Comfort Air Con (IHKA) / From: JH000001 / To: JH761654 		$1,494.64 1
18478 LR094339
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, With Air Purifier Sensor, With Pollution Sensor / From: JH000001 / To: JH761654 		$1,596.48 1
18478 LR094340
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, RHD, With Air Purifier Sensor, With Pollution Sensor / From: JH000001 / To: JH761654 		$2,209.62 1
18478 LR094341
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With ATC Air Con & Row 2 Vents / From: JH000001 / To: JH761654 		$1,624.50 1
18478 LR094342
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With ATC Air Con & Row 2 Vents / From: JH000001 / To: JH761654 		$1,584.85 1
18478 LR094343
HEATER & EVAPORATOR UNIT
LHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: JH000001 / To: JH761654 		$1,693.84 1
18478 LR094344
HEATER & EVAPORATOR UNIT
RHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: JH000001 / To: JH761654 		$1,547.09 1
18478 LR112482
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With Manual Air Conditioning / From: JH761655 / To: KH810826 		$1,502.89 1
18478 LR112484
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With Manual Air Conditioning / From: JH761655 / To: KH813979 		$1,502.89 1
18478 LR112485
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, Less Air Purifier Sensor, Less Pollution Sensor / From: JH761655 / To: KH810563 		$1,287.02 1
18478 LR112486
no schedule , will add manual schedule .
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With Front Comfort Air Con (IHKA) / From: JH761655 / To: KH809724 		$1,502.89 1
18478 LR112487
HEATER & EVAPORATOR UNIT
LHD, With Air Purifier Sensor, With Front Comfort Air Con (IHKA), With Pollution Sensor / From: JH761655 / To: KH814183 		$1,502.89 1
18478 LR112491
HEATER & EVAPORATOR UNIT
RHD, With Air Purifier Sensor, With Front Comfort Air Con (IHKA), With Pollution Sensor / From: JH761655 / To: KH806019 		$1,925.98 1
18478 LR112495
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With ATC Air Con & Row 2 Vents / From: JH761655 / To: KH810563 		$1,465.46 1
18478 LR112499
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With ATC Air Con & Row 2 Vents / From: JH761655 / To: KH810563 		$1,774.62 1
18478 LR112500
HEATER & EVAPORATOR UNIT
LHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: JH761655 / To: KH810563 		$1,302.98 1
18478 LR112503
HEATER & EVAPORATOR UNIT
RHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: JH761655 / To: KH810136 		$1,505.40 1
18478 LR123791
HEATER & EVAPORATOR UNIT
LHD, Less Pollution Sensor, Less Rear Compartment Duct, With Manual Air Conditioning / To: HH999999 		$1,532.93 1
18478 LR123792
HEATER & EVAPORATOR UNIT
Less Pollution Sensor, Less Rear Compartment Duct, RHD, With Manual Air Conditioning / To: HH999999 		$1,392.41 1
18478 LR123794
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, Less Pollution Sensor, Less Rear Compartment Duct, RHD / To: HH999999 		$1,541.21 1
18478 LR123795
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, Less Rear Compartment Duct, With Pollution Sensor / To: HH999999 		$1,551.99 1
18478 LR123797
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, Less Rear Compartment Duct, RHD, With Pollution Sensor / To: HH999999 		$1,551.99 1
18478 LR123798
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, Less Pollution Sensor, With Rear Duct / B-Pillar / To: HH999999 		$1,477.33 1
18478 LR123799
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, Less Pollution Sensor, RHD, With Rear Duct / B-Pillar / To: HH999999 		$1,882.62 1
18478 LR123802
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, With Pollution Sensor, With Rear Duct / B-Pillar / To: HH999999 		$1,988.79 1
18478 LR123803
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, RHD, With Pollution Sensor, With Rear Duct / B-Pillar / To: HH999999 		$2,048.73 1
18478 LR123793
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, Less Pollution Sensor, Less Rear Compartment Duct / To: HH999999 		$1,614.68 1
18478 LR124807
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, Less Air Purifier Sensor, Less Pollution Sensor / From: KH810564 		$1,502.89 1
18478 LR124808
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, Less Air Purifier Sensor, Less Pollution Sensor, RHD / From: KH809725 		$1,281.72 1
18478 LR124811
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With ATC Air Con & Row 2 Vents / From: KH810564 / To: KH828564 		$1,462.22 1
18478 LR124812
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With ATC Air Con & Row 2 Vents / From: KH810564 / To: KH828564 		$1,462.22 1
18478 LR124813
HEATER & EVAPORATOR UNIT
LHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: KH810564 / To: KH828564 		$1,656.96 1
18478 LR124814
HEATER & EVAPORATOR UNIT
RHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: KH810137 / To: KH829136 		$1,656.96 1
18478 LR124805
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With Manual Air Conditioning / From: KH810827 		$1,502.89 1
18478 LR124806
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With Manual Air Conditioning / From: KH813980 		$1,502.89 1
18478 LR124809
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD, With Air Purifier Sensor, With Pollution Sensor / From: KH814184 		$1,444.73 1
18478 LR124810
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, RHD, With Air Purifier Sensor, With Pollution Sensor / From: KH806020 		$2,080.06 1
18478 LR149323
HEATER & EVAPORATOR UNIT
RHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: KH829137 		$1,475.66 1
18478 LR149810
HEATER & EVAPORATOR UNIT
LHD, Less Air Purifier Sensor, Less Pollution Sensor, With ATC Air Con & Row 2 Vents / From: KH828565 		$1,536.19 1
18478 LR149811
HEATER & EVAPORATOR UNIT
Less Air Purifier Sensor, Less Pollution Sensor, RHD, With ATC Air Con & Row 2 Vents / From: KH828565 		$1,536.19 1
18478 LR149812
HEATER & EVAPORATOR UNIT
LHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor, With Pollution Sensor / From: KH828565 		$1,660.59 1
18568 LR066920
HOUSING - HEATER BLOWER
LHD 		$124.22 1
18568 LR066921
HOUSING - HEATER BLOWER
RHD 		$112.21 1
