Rear Brake Discs And Calipers (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Brake Discs And Calipers (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.18 IN STOCK
Photo Part No Description Price (each) Stock
LR042690 BOLT $6.05 IN STOCK
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.74 IN STOCK
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
LR061096 SCREW - BLEED $7.04 To Order
Photo Part No Description Price (each) Stock
LR061392 SHIELD - BRAKE DISC SPLASH $211.24 To Order
LR061393 SHIELD - BRAKE DISC SPLASH $223.32 To Order
LR061392 SHIELD - BRAKE DISC SPLASH $211.24 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR113706 CALIPER - BRAKE $433.08 To Order
LR061381 CALIPER - BRAKE $387.94 To Order
LR113706 CALIPER - BRAKE $433.08 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR062657 SPRING - BRAKE CALIPER $10.92 IN STOCK
Photo Part No Description Price (each) Stock
LR061379 BRACKET - BRAKE CALIPER $116.08 To Order
LR061379 BRACKET - BRAKE CALIPER $116.08 To Order
LR090706 BRACKET $95.21 To Order
Photo Part No Description Price (each) Stock
LR061388 DISC - BRAKE $128.56 IN STOCK
LR061388 DISC - BRAKE $128.56 IN STOCK
LR090699 DISC - BRAKE $162.57 To Order
Photo Part No Description Price (each) Stock
LR027312 CAP - BLEED SCREW $1.31 IN STOCK
Photo Part No Description Price (each) Stock
LR062659 BOOT - BRAKE CALIPER $29.86 To Order
Photo Part No Description Price (each) Stock
LR061385 BRAKE PADS - LESS SPRINGS $104.85 To Order
Photo Part No Description Price (each) Stock
LR000751 KIT - CALIPER REPAIR $33.41 IN STOCK
Photo Part No Description Price (each) Stock
LR003977 KIT - RETAINING PIN $27.17 IN STOCK
Photo Part No Description Price (each) Stock
LR092060 WIRE - BRAKE PAD WEAR WARNING $40.57 To Order
LR072544 WIRE - BRAKE PAD WEAR WARNING $37.26 IN STOCK
Photo Part No Description Price (each) Stock
LR061399 BRACKET - WIRING $14.57 To Order
LR061401 BRACKET - WIRING $14.62 To Order
Photo Part No Description Price (each) Stock
LR072543 BRACKET - WIRING $9.06 To Order
LR072542 BRACKET - WIRING $90.37 To Order
LR092058 BRACKET - WIRING $10.92 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061398 BRACKET - WIRING $13.07 To Order
Photo Part No Description Price (each) Stock
LR066162 BRACKET - WIRING $12.74 To Order
LR066163 BRACKET - WIRING $12.83 To Order
View All

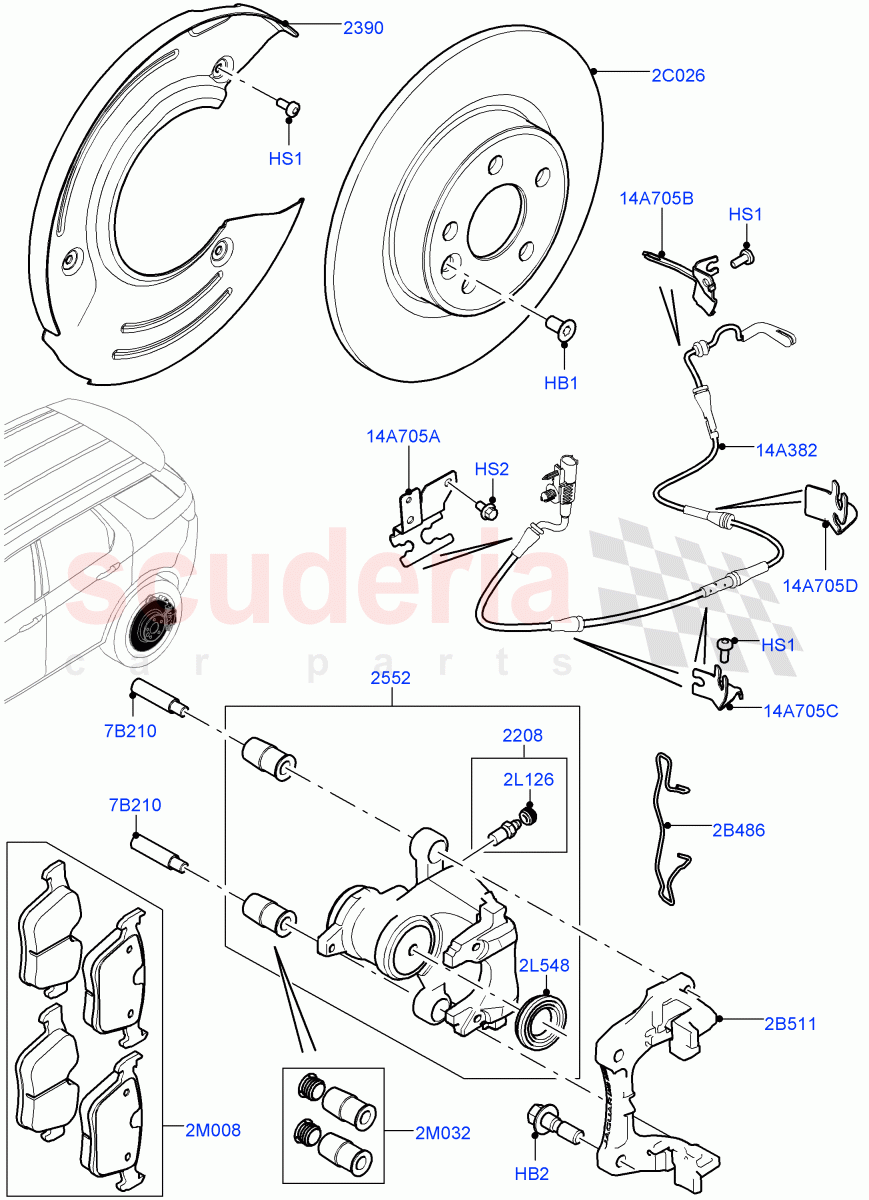

Rear Brake Discs And Calipers (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: GT000001
IN STOCK 		$3.18 2
HB2 LR042690
BOLT
M12 x 36MM / From: GT000001
IN STOCK 		$6.05 4
HS1 RYP500920
SCREW
M6 X 14MM, Torx / From: GT000001
IN STOCK 		$0.74 14
HS2 RYP500190
SCREW
Hexagonal Head, M6 x 12MM / From: GT000001
IN STOCK 		$0.65 2
2B486 LR062657
SPRING - BRAKE CALIPER
From: GT000001
IN STOCK 		$10.92 2
2B511 LR061379
BRACKET - BRAKE CALIPER
For 16" Brakes, RH/LH / From: GT000001 / To: HT999999 		$116.08 2
2B511 LR061379
BRACKET - BRAKE CALIPER
Front Disc And Caliper Size 17 / For 16" Brakes, RH/LH / From: JT000001 		$116.08 2
2B511 LR090706
BRACKET
Disc Brake Size Frt 17/RR 17 / For 17" Brakes, RH/LH / From: JT000001 		$95.21 2
2C026 LR061388
DISC - BRAKE
300MM, For 16" Brakes, Rear / From: GT000001 / To: HT999999
IN STOCK 		$128.56 2
2C026 LR061388
DISC - BRAKE
Front Disc And Caliper Size 17 / 300MM, For 16" Brakes, Rear / From: JT000001
IN STOCK 		$128.56 2
2C026 LR090699
DISC - BRAKE
Disc Brake Size Frt 17/RR 17 / 325MM, For 17" Brakes, Rear / From: JT000001 		$162.57 2
2L126 LR027312
CAP - BLEED SCREW
From: GT000001
IN STOCK 		$1.31 2
2L548 LR062659
BOOT - BRAKE CALIPER
Brake Caliper / From: GT000001 		$29.86 2
2M008 LR061385
BRAKE PADS - LESS SPRINGS
Axle Set, Rear / From: GT000001 		$104.85 1
2M032 LR000751
KIT - CALIPER REPAIR
Includes 2 Slide Pin Bushes And 2 Caps / From: GT000001
IN STOCK 		$33.41 2
7B210 LR003977
KIT - RETAINING PIN
Pin - Slide / From: GT000001
IN STOCK 		$27.17 4
14A382 LR092060
WIRE - BRAKE PAD WEAR WARNING
From: JT000001 		$40.57 1
14A382 LR072544
WIRE - BRAKE PAD WEAR WARNING
From: GT000001 / To: HT999999
IN STOCK 		$37.26 1
14A705A LR061399
BRACKET - WIRING
RH / From: GT000001 		$14.57 1
14A705A LR061401
BRACKET - WIRING
LH / From: GT000001 		$14.62 1
14A705B LR072543
BRACKET - WIRING
LH, To Caliper / From: GT000001 / To: HT999999 		$9.06 1
14A705B LR072542
BRACKET - WIRING
RH, To Caliper / From: GT000001 / To: HT999999 		$90.37 1
14A705B LR092058
BRACKET - WIRING
LH, To Caliper / From: JT000001 		$10.92 1
14A705B LR092059
BRACKET - WIRING
RH, To Caliper / From: JT000001 		$10.92 1
14A705C LR061398
BRACKET - WIRING
From: GT000001 		$13.07 4
14A705D LR066162
BRACKET - WIRING
RH / From: GT000001 		$12.74 1
14A705D LR066163
BRACKET - WIRING
LH / From: GT000001 		$12.83 1
2208 LR061096
SCREW - BLEED
With Cap / From: GT000001 		$7.04 2
2390 LR061392
SHIELD - BRAKE DISC SPLASH
RH, For 16" Brakes / From: GT000001 / To: HT999999 		$211.24 1
2390 LR061393
SHIELD - BRAKE DISC SPLASH
LH, For 16" Brakes / From: GT000001 / To: HT999999 		$223.32 1
2390 LR061392
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 17 / RH, For 16" Brakes / From: JT000001 		$211.24 1
2390 LR061393
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 17 / LH, For 16" Brakes / From: JT000001 		$223.32 1
2390 LR090701
SHIELD - BRAKE DISC SPLASH
Disc Brake Size Frt 17/RR 17 / RH, For 17" Brakes / From: JT000001 		$81.66 1
2390 LR090702
SHIELD - BRAKE DISC SPLASH
Disc Brake Size Frt 17/RR 17 / LH, For 17" Brakes / From: JT000001 		$81.66 1
2552 LR113706
CALIPER - BRAKE
RH, For 16" Brakes / From: GT000001 / To: HT999999 		$433.08 1
2552 LR061381
CALIPER - BRAKE
LH, For 16" Brakes / From: GT000001 / To: HT999999 		$387.94 1
2552 LR113706
CALIPER - BRAKE
Front Disc And Caliper Size 17 / RH, For 16" Brakes / From: JT000001 / To: JT203211 		$433.08 1
2552 LR061381
CALIPER - BRAKE
Front Disc And Caliper Size 17 / LH, For 16" Brakes / From: JT000001 / To: JT203211 		$387.94 1
2552 LR090703
CALIPER - BRAKE
Disc Brake Size Frt 17/RR 17 / RH, For 17" Brakes / From: JT000001 		$492.48 1
2552 LR090704
CALIPER - BRAKE
Disc Brake Size Frt 17/RR 17 / LH, For 17" Brakes / From: JT000001 		$492.48 1
2552 LR113708
CALIPER - BRAKE
Front Disc And Caliper Size 17 / LH, For 16" Brakes / From: JT203212 		$441.71 1
2552 LR113706
CALIPER - BRAKE
Front Disc And Caliper Size 17 / RH, For 16" Brakes / From: JT203212 		$433.08 1
