Name: Turbocharger (2.0L I4 Mid DOHC AJ200 Petrol, Itatiaia (Brazil), 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJT000001)
Rating: 4.4 (1 reviews)

Turbocharger (2.0L I4 Mid DOHC AJ200 Petrol, Itatiaia (Brazil), 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Turbocharger (2.0L I4 Mid DOHC AJ200 Petrol, Itatiaia (Brazil), 2.0L I4 Mid AJ200 Petrol E100) ((V)...

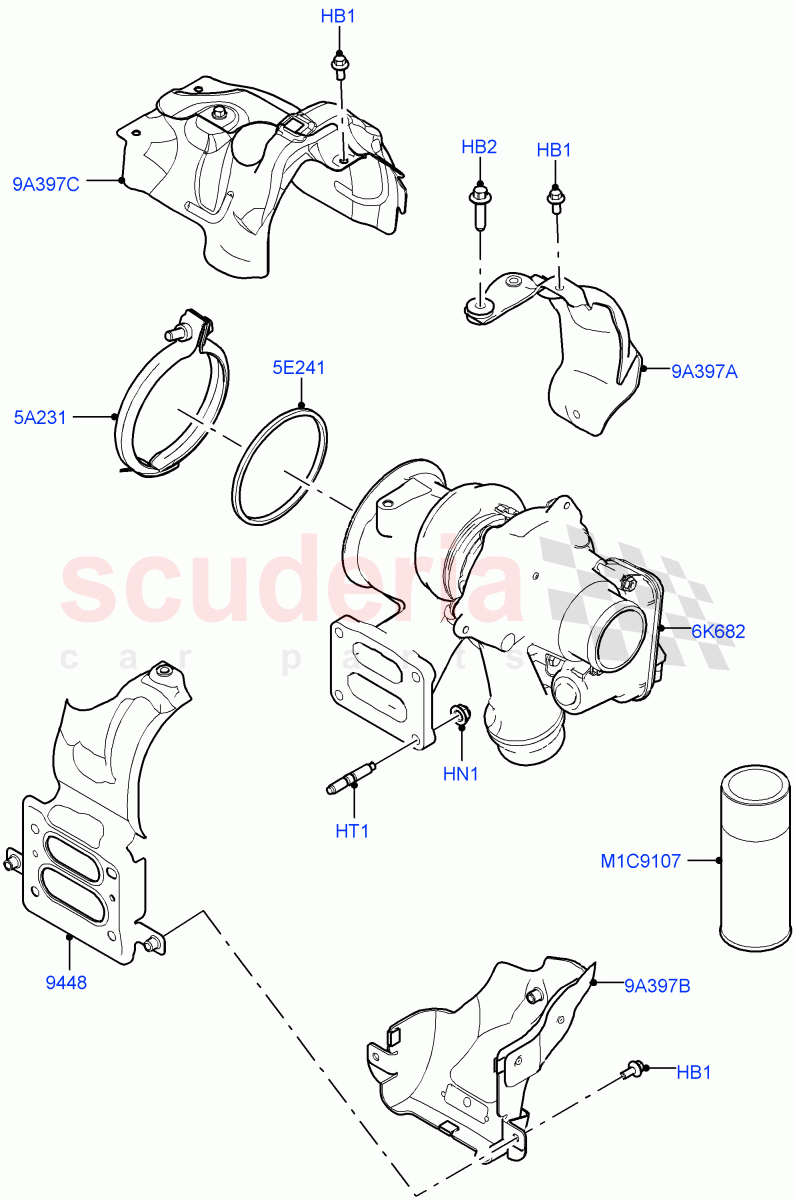

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094452	BOLT - HEX.HEAD	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092112	NUT	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	$3.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094404	GASKET - EXHAUST MANIFOLD	$30.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$38.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113873	TURBOCHARGER	$2,449.29	To Order
	LR112021	TURBOCHARGER	$2,550.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094412	HEAT SHIELD - TURBOCHARGER	$28.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094413	HEAT SHIELD - TURBOCHARGER	$34.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094088	HEAT SHIELD - TURBOCHARGER	$53.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164809	GREASE - HIGH TEMPERATURE	$79.40	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield / From: JT000001	$2.77	6
HB2	LR094452	BOLT - HEX.HEAD	LR094452 BOLT - HEX.HEAD Hi temp, M8 x 30MM / From: JT000001	$2.48	2
HN1	LR092112	NUT	LR092112 NUT M8, Turbocharger / From: JT000001	$2.16	4
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Turbocharger / From: JT000001	$3.59	4
M1C9107	LR164809	GREASE - HIGH TEMPERATURE	LR164809 GREASE - HIGH TEMPERATURE High Temperature, Wastegate Rod / From: JT000001	$79.40	1
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST From: JT000001	$38.52	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER From: JT000001	$20.79	1
6K682	LR113873	TURBOCHARGER	LR113873 TURBOCHARGER 2.0L I4 Mid DOHC AJ200 Petrol / From: JT000001	$2,449.29	1
6K682	LR112021	TURBOCHARGER	LR112021 TURBOCHARGER 2.0L I4 Mid AJ200 Petrol E100 / From: KT000001	$2,550.32	1
9A397A	LR094412	HEAT SHIELD - TURBOCHARGER	LR094412 HEAT SHIELD - TURBOCHARGER Top / From: JT000001	$28.36	1
9A397B	LR094413	HEAT SHIELD - TURBOCHARGER	LR094413 HEAT SHIELD - TURBOCHARGER Lower / From: JT000001	$34.06	1
9A397C	LR094088	HEAT SHIELD - TURBOCHARGER	LR094088 HEAT SHIELD - TURBOCHARGER EXHAUST SIDE, Top / From: JT000001	$53.06	1
9448	LR094404	GASKET - EXHAUST MANIFOLD	LR094404 GASKET - EXHAUST MANIFOLD With Heatshield / From: JT000001	$30.19	1
