Name: Vacuum Control And Air Injection (2.0L I4 Mid DOHC AJ200 Petrol, LHD, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001)
Rating: 4.4 (1 reviews)

Vacuum Control And Air Injection (2.0L I4 Mid DOHC AJ200 Petrol, LHD, 2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid AJ200 Petrol E100) ((V) FROMJH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Vacuum Control And Air Injection (2.0L I4 Mid DOHC AJ200 Petrol, LHD, 2.0L I4 High DOHC AJ200...

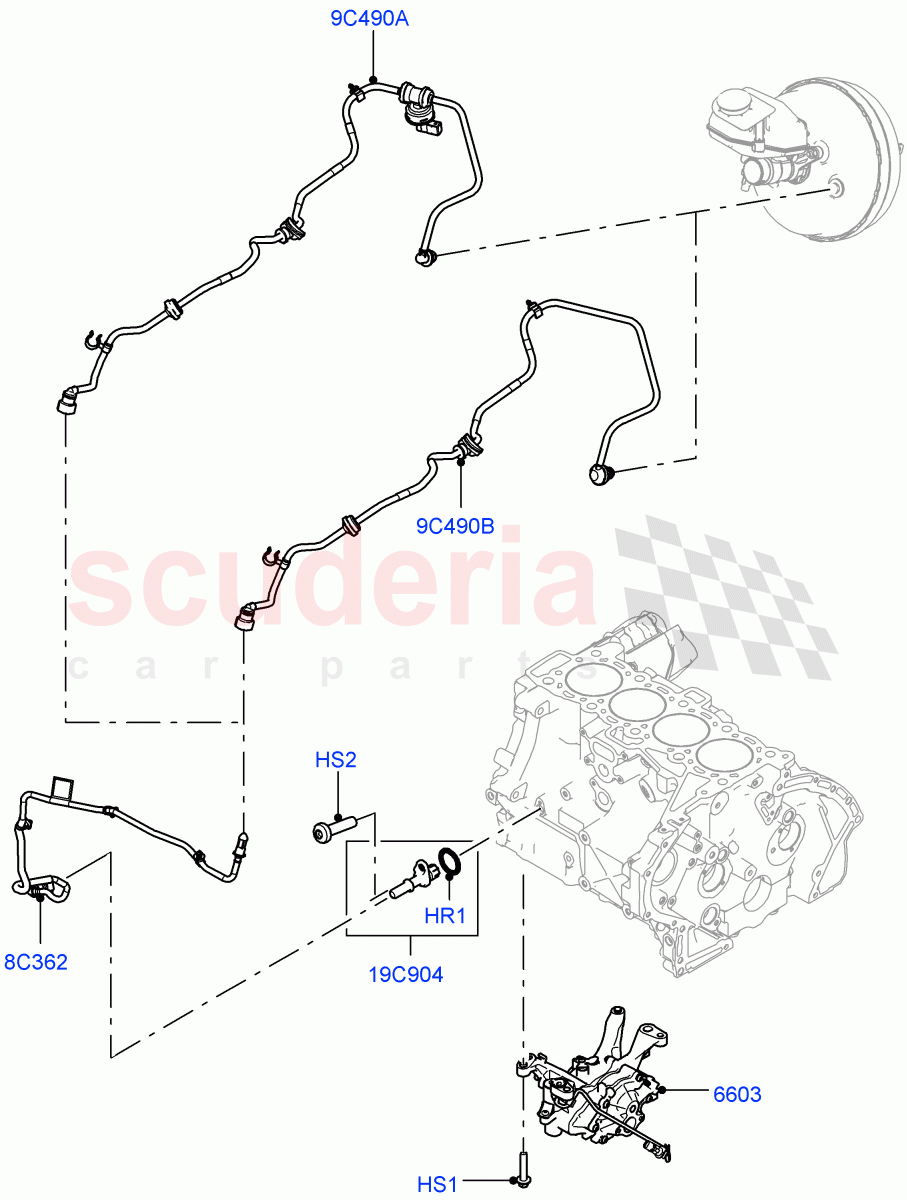

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR106648	O-RING	$6.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087668	PUMP - OIL & VACUUM	$556.18	To Order
	LR110501	PUMP - OIL & VACUUM	$607.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094405	HOSE - VACUUM	$103.79	To Order
	LR138595	HOSE - VACUUM CONTROL HARNESS	$99.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148195	CONNECTOR - VACUUM TUBE	$27.93	To Order
	LR148195	CONNECTOR - VACUUM TUBE	$27.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092065	MANIFOLD - VACUUM SUPPLY	$133.54	To Order
	LR118817	MANIFOLD - VACUUM SUPPLY	$118.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092066	MANIFOLD - VACUUM SUPPLY	$90.47	To Order
	LR118818	MANIFOLD - VACUUM SUPPLY	$90.47	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR106648	O-RING	LR106648 O-RING Connector, Vacuum / From: JH000001	$6.11	1
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM, Pump - Vacuum / From: JH000001	$2.52	4
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: JH000001	$1.43	1
8C362	LR094405	HOSE - VACUUM	LR094405 HOSE - VACUUM From: JH000001 / To: LH846068	$103.79	1
8C362	LR138595	HOSE - VACUUM CONTROL HARNESS	LR138595 HOSE - VACUUM CONTROL HARNESS From: LH846069	$99.24	1
9C490A	LR092065	MANIFOLD - VACUUM SUPPLY	LR092065 MANIFOLD - VACUUM SUPPLY Starter - Stop/Start System / From: JH000001 / To: KH790577	$133.54	1
9C490A	LR118817	MANIFOLD - VACUUM SUPPLY	LR118817 MANIFOLD - VACUUM SUPPLY Starter - Stop/Start System / From: KH790578	$118.77	1
9C490B	LR092066	MANIFOLD - VACUUM SUPPLY	LR092066 MANIFOLD - VACUUM SUPPLY Standard Electric Starter Motor / From: JH000001 / To: KH790577	$90.47	1
9C490B	LR118818	MANIFOLD - VACUUM SUPPLY	LR118818 MANIFOLD - VACUUM SUPPLY Standard Electric Starter Motor / From: KH790578	$90.47	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: JH000001 / To: LH878225	$27.93	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: LH878226	$27.93	1
6603	LR087668	PUMP - OIL & VACUUM	LR087668 PUMP - OIL & VACUUM From: JH000001 / To: JH745851	$556.18	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JH745852	$607.48	1
