Name: Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol E100 PTA)
Rating: 5.0 (1 reviews)

Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol E100 PTA) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol...

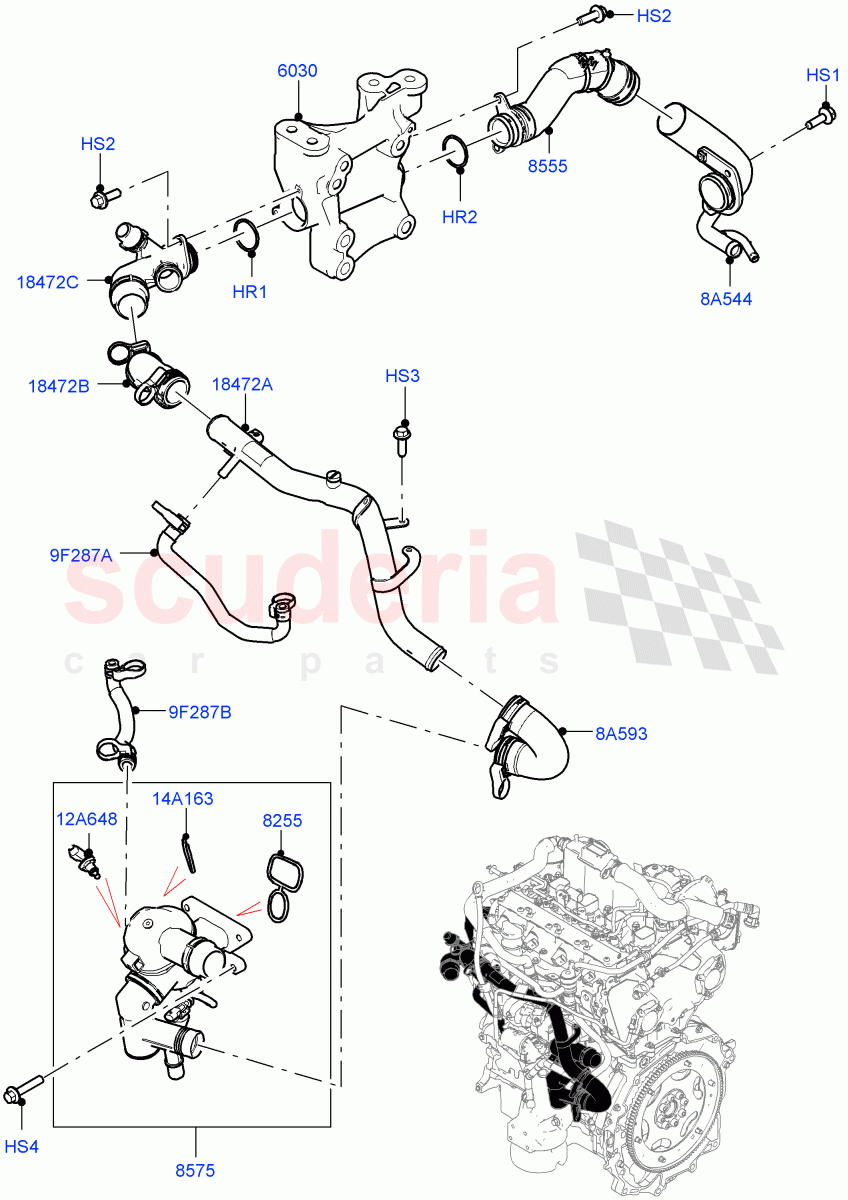

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096841	O-RING	$5.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096840	O-RING	$12.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117682	SUPPORT - ENGINE MOUNTING - FRONT	$176.98	To Order
	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	$176.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	$8.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR184620	TUBE	$92.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115275	THERMOSTAT	$142.11	To Order
	LR140107	THERMOSTAT	$142.11	To Order
	LR171745	THERMOSTAT	$138.47	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR118386	TUBE - CONNECTING	$54.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174183	Hose - Heater Water	$42.42	To Order
	LR174183	Hose - Heater Water	$42.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$36.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR169925	TUBE - BY-PASS	$54.88	To Order
	LR169925	TUBE - BY-PASS	$54.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122716	HOSE - WATER BY-PASS	$68.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115276	TUBE - BY-PASS	$53.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115232	HOSE - BY-PASS	$43.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093484	HOSE - BYPASS VALVE	$60.88	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR096841	O-RING	LR096841 O-RING	$5.93	1
HR2	LR096840	O-RING	LR096840 O-RING	$12.64	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: LH000001	$2.36	2
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM / From: LH000001 IN STOCK	$0.69	4
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: LH000001	$2.31	3
HS4	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: LH000001 IN STOCK	$2.67	4
8A544	LR118386	TUBE - CONNECTING	LR118386 TUBE - CONNECTING Inlet, Water Pump, With O-Ring / From: LH000001	$54.08	1
8A593	LR174183	Hose - Heater Water	LR174183 Hose - Heater Water Outlet / From: LH000001 / To: NH913891	$42.42	1
8A593	LR174183	Hose - Heater Water	LR174183 Hose - Heater Water Outlet / From: NH913892	$42.42	1
9F287A	LR115232	HOSE - BY-PASS	LR115232 HOSE - BY-PASS Outlet, Throttle Air By - Pass / From: LH000001	$43.98	1
9F287B	LR093484	HOSE - BYPASS VALVE	LR093484 HOSE - BYPASS VALVE Inlet, Throttle Air By - Pass / From: LH000001	$60.88	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: LH000001	$36.27	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: LH000001	$4.71	1
6030	LR117682	SUPPORT - ENGINE MOUNTING - FRONT	LR117682 SUPPORT - ENGINE MOUNTING - FRONT From: LH000001 / To: LH854748	$176.98	1
6030	LR140267	SUPPORT - ENGINE MOUNTING - FRONT	LR140267 SUPPORT - ENGINE MOUNTING - FRONT From: LH854849	$176.98	1
8255	LR105592	SEAL - THERMOSTAT	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy / From: LH000001	$8.66	1
8555	LR184620	TUBE	LR184620 TUBE Rear, To Engine / From: LH000001	$92.15	1
8575	LR115275	THERMOSTAT	LR115275 THERMOSTAT From: LH000001 / To: LH861635	$142.11	1
8575	LR140107	THERMOSTAT	LR140107 THERMOSTAT From: LH861636 / To: NH999999	$142.11	1
8575	LR171745	THERMOSTAT	LR171745 THERMOSTAT 2.0L AJ20P4 Petrol E100 PTA / From: PH000001	$138.47	1
8575	LR171746	THERMOSTAT	LR171746 THERMOSTAT 2.0L AJ20P4 Petrol High PTA / From: PH000001	$138.47	1
18472A	LR169925	TUBE - BY-PASS	LR169925 TUBE - BY-PASS Main / From: LH000001 / To: NH907936	$54.88	1
18472A	LR169925	TUBE - BY-PASS	LR169925 TUBE - BY-PASS Main / From: NH907937	$54.88	1
18472B	LR122716	HOSE - WATER BY-PASS	LR122716 HOSE - WATER BY-PASS Middle / From: LH000001	$68.76	1
18472C	LR115276	TUBE - BY-PASS	LR115276 TUBE - BY-PASS EGR Cooler / From: LH000001	$53.17	1
