Fuel Lines (Under Floor) (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Fuel Lines (Under Floor) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE $0.61 To Order
Photo Part No Description Price (each) Stock
LR144377 CLIP $1.62 To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR133032 SHIELD - FUEL TUBES $80.36 To Order
Photo Part No Description Price (each) Stock
LR139951 PIPE - FUEL $187.83 To Order
Photo Part No Description Price (each) Stock
LR139954 PIPE - FUEL $125.52 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.60 To Order
View All

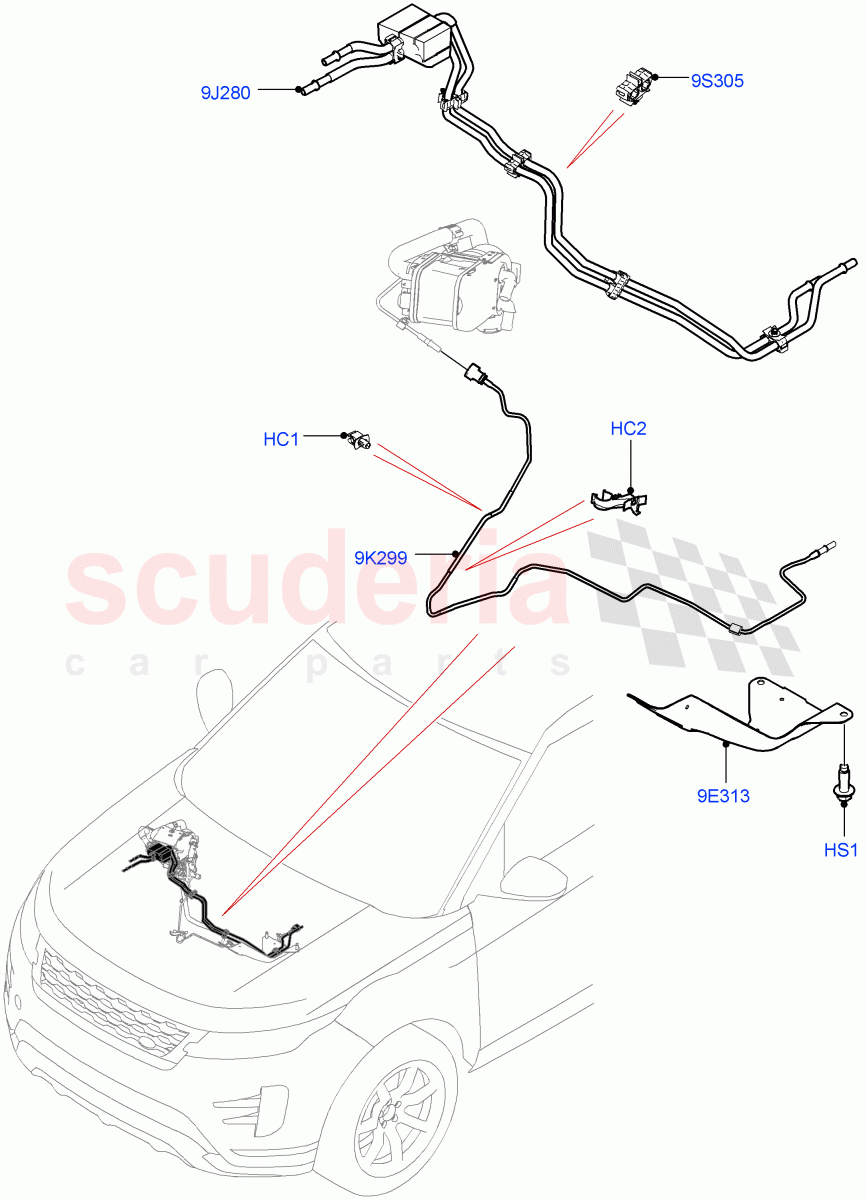

Fuel Lines (Under Floor) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR113126
CLIP - BRAKE PIPE
Fuel Heater W/Pk Heat With Remote / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: MH000001 		$0.61 3
HC2 LR144377
CLIP
Fuel Heater W/Pk Heat With Remote, Less Emission Tank / Double, Fuel Fired Heater Pipe / From: MH000001 		$1.62 1
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM, Shield / From: MH000001 		$0.61 3
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: MH000001 		$80.36 1
9J280 LR139951
PIPE - FUEL
Fuel Supply And Fuel Return / From: MH000001 		$187.83 1
9K299 LR139954
PIPE - FUEL
Fuel Heater W/Pk Heat With Remote / To Fuel Fired Heater / From: MH000001 		$125.52 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: MH000001 		$3.60 3
