Back Door/Tailgate Trim Panels (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Back Door/Tailgate Trim Panels (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001080 BOLT $1.37 IN STOCK
Photo Part No Description Price (each) Stock
LR140069 BOLT $1.13 IN STOCK
Photo Part No Description Price (each) Stock
LR001790 CLIP $0.67 To Order
Photo Part No Description Price (each) Stock
LR013135 CLIP - TRIM $1.76 IN STOCK
Photo Part No Description Price (each) Stock
LR123788 CLIP $1.59 IN STOCK
Photo Part No Description Price (each) Stock
LR146846 CLIP - LANTERN $1.72 To Order
Photo Part No Description Price (each) Stock
LR109136 CLIP - LANTERN $1.47 To Order
Photo Part No Description Price (each) Stock
LR114151 NUT $1.39 IN STOCK
LR089535 NUT - EXPANSION $1.41 To Order
Photo Part No Description Price (each) Stock
LR061124 SCREW $4.89 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR137725 DAMPER - DAMPING MASS $220.54 To Order
LR139501 DAMPER - DAMPING MASS $220.54 To Order
Photo Part No Description Price (each) Stock
LR075114 COVER - TAILGATE HANDLE $49.09 To Order
LR075113 COVER - TAILGATE HANDLE $55.17 To Order
Photo Part No Description Price (each) Stock
LR075424 PANEL - TAILGATE FINISH $252.01 To Order
LR075425 PANEL - TAILGATE FINISH $252.01 To Order
LR077433 PANEL - TAILGATE FINISH $225.10 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR075112 HANDLE - TAILGATE $52.42 To Order
LR075109 HANDLE - TAILGATE $52.62 To Order
Photo Part No Description Price (each) Stock
LR127771 COVER WARNING TRIANGLE - TAILGATE $186.41 To Order
Photo Part No Description Price (each) Stock
LR077095 PANEL - DOOR TRIM - UPPER $21.40 To Order
LR077098 PANEL - DOOR TRIM - UPPER $22.28 To Order
LR077094 PANEL - DOOR TRIM - UPPER $22.48 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR075409 MOULDING - TAILGATE $116.48 To Order
LR090575 MOULDING - TAILGATE $99.63 To Order
Photo Part No Description Price (each) Stock
LR075410 MOULDING - TAILGATE $100.48 To Order
LR090574 MOULDING - TAILGATE $96.95 To Order
Photo Part No Description Price (each) Stock
LR076667 COVER - HINGE $20.78 To Order
LR076668 COVER - HINGE $22.28 To Order
LR076669 COVER - HINGE $23.98 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR076670 COVER - HINGE $20.78 To Order
LR076671 COVER - HINGE $21.84 To Order
LR076673 COVER - HINGE $23.98 To Order
...and 4 more part variants. See table on right for more details.
View All

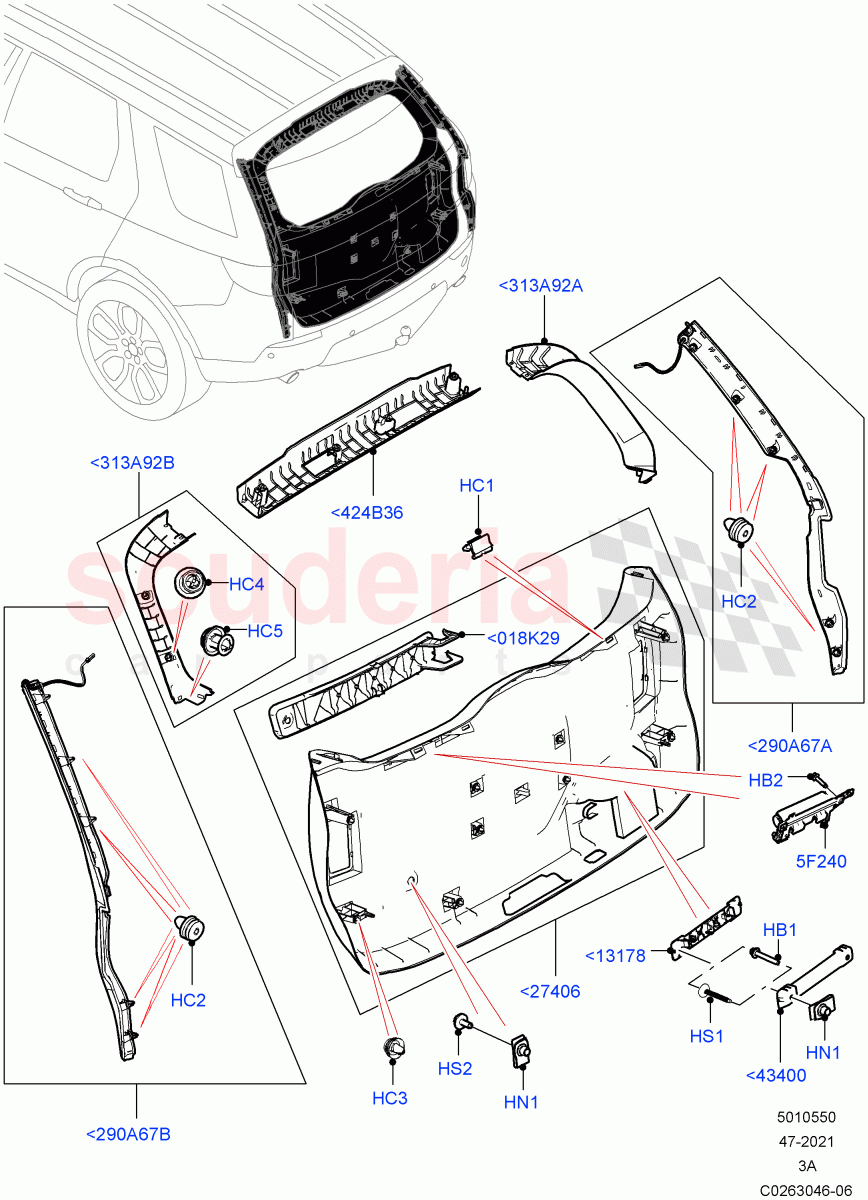

Back Door/Tailgate Trim Panels (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018K29 LR127771
COVER WARNING TRIANGLE - TAILGATE
Tailgate-Powered Upper / From: KG446857 		$186.41 1
<290A67A LR075409
MOULDING - TAILGATE
Tailgate - Hands Free / RH / From: FG000001 / To: JG395100 		$116.48 1
<290A67A LR090575
MOULDING - TAILGATE
Tailgate - Hands Free / RH / From: JG395101 		$99.63 1
<290A67B LR075410
MOULDING - TAILGATE
Tailgate - Hands Free / LH / From: FG000001 / To: JG395100 		$100.48 1
<290A67B LR090574
MOULDING - TAILGATE
Tailgate - Hands Free / LH / From: JG395101 		$96.95 1
<313A92A LR076667
COVER - HINGE
Cirrus Headliner / RH, Upper Tailgate / From: FG000001 		$20.78 1
<313A92A LR076668
COVER - HINGE
Ivory Headliner / RH, Upper Tailgate / From: FG000001 		$22.28 1
<313A92A LR076669
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / From: FG000001 / To: KG446856 		$23.98 1
<313A92A LR127257
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / From: KG446857 / To: MG140568 		$72.80 1
<313A92A LR127254
COVER - HINGE
Light Oyster Headliner / RH, Upper Tailgate / From: KG446857 / To: MG140568 		$77.38 1
<313A92A LR146859
COVER - HINGE
Light Oyster Headliner / RH, Upper Tailgate / From: MG140569 		$77.38 1
<313A92A LR146860
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / From: MG140569 		$77.38 1
<313A92B LR076670
COVER - HINGE
Cirrus Headliner / LH, Upper Tailgate / From: FG000001 		$20.78 1
<313A92B LR076671
COVER - HINGE
Ivory Headliner / LH, Upper Tailgate / From: FG000001 		$21.84 1
<313A92B LR076673
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / From: FG000001 / To: KG446856 		$23.98 1
<313A92B LR127259
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / From: KG446857 / To: MG140568 		$77.38 1
<313A92B LR127258
COVER - HINGE
Light Oyster Headliner / LH, Upper Tailgate / From: KG446857 / To: MG140568 		$77.38 1
<313A92B LR146857
COVER - HINGE
Light Oyster Headliner / LH, Upper Tailgate / From: MG140569 		$77.92 1
<313A92B LR146858
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / From: MG140569 		$77.38 1
<424B36 LR077095
PANEL - DOOR TRIM - UPPER
Cirrus Headliner / Upper Tailgate / From: FG000001 		$21.40 1
<424B36 LR077098
PANEL - DOOR TRIM - UPPER
Ivory Headliner / Upper Tailgate / From: FG000001 		$22.28 1
<424B36 LR077094
PANEL - DOOR TRIM - UPPER
Ebony Headliner / Upper Tailgate / From: FG000001 / To: KG446856 		$22.48 1
<424B36 LR127261
COVER - HINGE
Ebony Headliner / Upper Tailgate / From: KG446857 		$85.48 1
<424B36 LR127260
COVER - HINGE
Light Oyster Headliner / Upper Tailgate / From: KG446857 		$85.48 1
<13178 LR075114
COVER - TAILGATE HANDLE
I/P Facia Contrast - Lunar/Glacia / Handle / From: FG000001 		$49.09 1
<13178 LR075113
COVER - TAILGATE HANDLE
I/P Facia Contrast - Ebony/Ivory / Handle / From: FG000001 		$55.17 1
<27406 LR075424
PANEL - TAILGATE FINISH
I/P Facia Contrast - Lunar/Glacia, Tailgate-Powered Upper / From: FG000001 / To: KG446856 		$252.01 1
<27406 LR075425
PANEL - TAILGATE FINISH
I/P Facia Contrast - Ebony/Cirrus, Tailgate-Powered Upper / From: FG000001 / To: KG446856 		$252.01 1
<27406 LR077433
PANEL - TAILGATE FINISH
I/P Facia Contrast - Cirrus/Lunar, With Conventional Tailgate / From: FG000001 / To: KG446856 		$225.10 1
<27406 LR077432
PANEL - TAILGATE FINISH
I/P Facia Cntr-Ebony Black/Almond, With Conventional Tailgate / From: FG000001 / To: KG446856 		$233.44 1
<27406 LR127269
PANEL - TAILGATE FINISH
Tailgate-Powered Upper / From: KG446857 / To: MG136101 		$829.24 1
<27406 LR127268
PANEL - TAILGATE FINISH
With Conventional Tailgate / From: KG446857 		$272.16 1
<27406 LR159588
PANEL - TAILGATE FINISH
Tailgate - Hands Free / From: MG136102 		$848.06 1
<43400 LR075112
HANDLE - TAILGATE
I/P Facia Contrast - Lunar/Glacia / From: FG000001 		$52.42 1
<43400 LR075109
HANDLE - TAILGATE
I/P Facia Contrast - Ebony/Ivory / From: FG000001 		$52.62 1
HB1 LR001080
BOLT
Hexagonal Head, M6 X 40MM / From: FG000001
IN STOCK 		$1.37 2
HB2 LR140069
BOLT
From: MG130862
IN STOCK 		$1.13 4
HC1 LR001790
CLIP
Tailgate Panel / From: FG000001 		$0.67 3
HC2 LR013135
CLIP - TRIM
8.5 X 0.8 - 2.2 / From: KG446857
IN STOCK 		$1.76 5
HC3 LR123788
CLIP
7.8 X 0.65+2.55 / From: KG446857
IN STOCK 		$1.59 -
HC4 LR146846
CLIP - LANTERN
From: MG140569 		$1.72 -
HC5 LR109136
CLIP - LANTERN
8.5 x 0.7-1.6 + 2.5 Plastic / From: MG140569 		$1.47 4
HN1 LR114151
NUT
5 X 8 X 8 X 0.8-1.2 / From: FG000001 / To: HG351310
IN STOCK 		$1.39 2
HN1 LR089535
NUT - EXPANSION
M6 / From: HG351311 		$1.41 2
HS1 LR061124
SCREW
5 X 37.5MM / From: FG000001 / To: HG351310 		$4.89 2
HS2 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: KG446857 		$0.61 2
5F240 LR137725
DAMPER - DAMPING MASS
From: KG446857 / To: MG133471 		$220.54 1
5F240 LR139501
DAMPER - DAMPING MASS
From: MG133472 		$220.54 1
