Electrical Wiring - Body And Rear (Tailgate) (Halewood (Uk))

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Electrical Wiring - Body And Rear (Tailgate) (Halewood (UK))

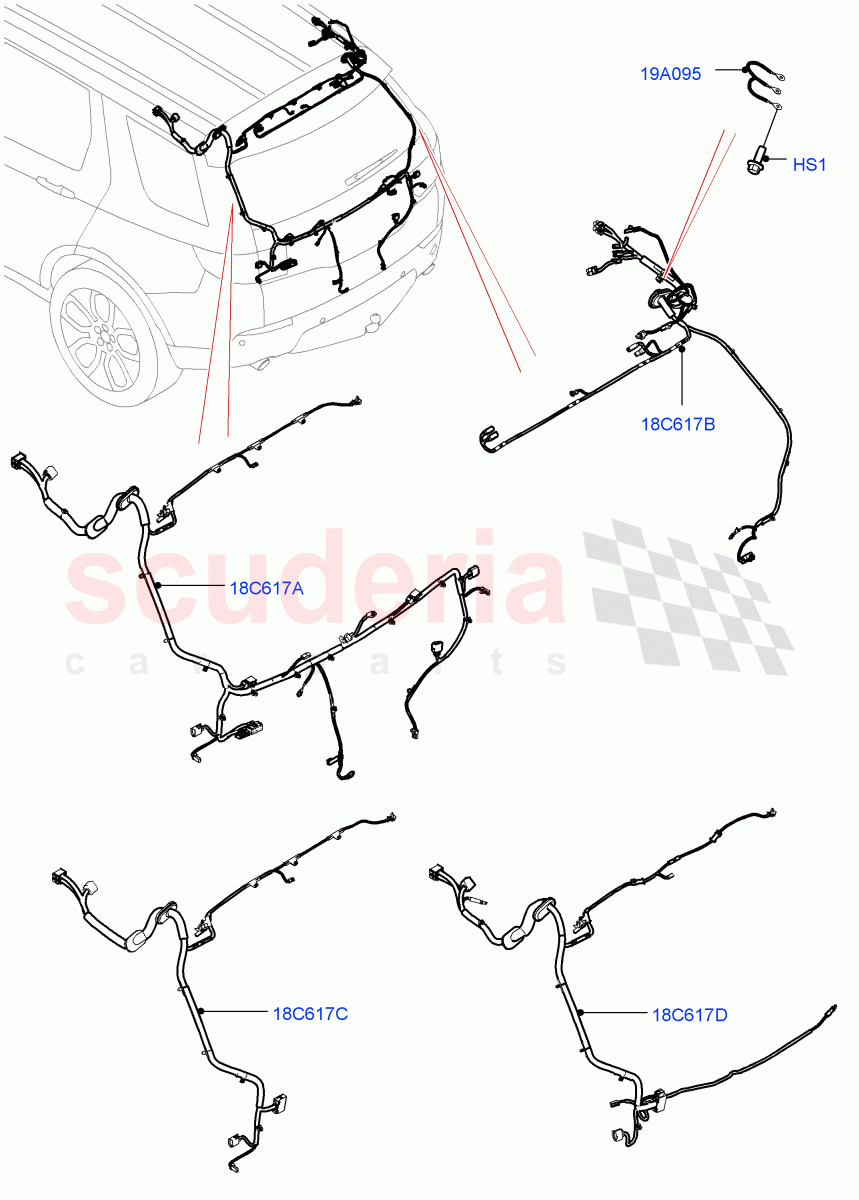

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR072966 SCREW $1.88 To Order
Photo Part No Description Price (each) Stock
LR066061 WIRE - EARTH $54.74 To Order
LR079581 WIRE - EARTH $49.87 To Order
Photo Part No Description Price (each) Stock
LR065983 WIRING - TAILGATE $249.32 To Order
LR065984 WIRING - TAILGATE $231.61 To Order
LR097678 WIRING - TAILGATE $224.21 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065999 WIRING - TAILGATE $256.41 To Order
LR066001 WIRING - TAILGATE $249.32 To Order
LR066004 WIRING - TAILGATE $249.32 To Order
...and 60 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068329 WIRING - TAILGATE $250.70 To Order
LR097675 WIRING - TAILGATE $253.82 To Order
Photo Part No Description Price (each) Stock
LR134327 WIRING - TAILGATE $239.70 To Order
LR134328 WIRING - TAILGATE $221.94 To Order
LR162464 WIRING - TAILGATE $252.36 To Order
...and 3 more part variants. See table on right for more details.
View All
Electrical Wiring - Body And Rear (Tailgate) (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR072966
SCREW
M6 x 12MM / From: FH511704 		$1.88 2
18C617A LR065983
WIRING - TAILGATE
With Conventional Tailgate / To: HH999999 		$249.32 1
18C617A LR065984
WIRING - TAILGATE
Tailgate - Hands Free / To: HH999999 		$231.61 1
18C617A LR097678
WIRING - TAILGATE
With Conventional Tailgate / From: JH000001 / To: KH999999 		$224.21 1
18C617A LR097679
WIRING - TAILGATE
Tailgate-Powered Upper / From: JH000001 / To: KH999999 		$252.37 1
18C617A LR134323
WIRING - TAILGATE
H/Lamp Operation FM VSS 108 Pattern, With Conventional Tailgate / From: LH000001 / To: MH999999 		$239.70 1
18C617A LR134324
WIRING - TAILGATE
H/Lamp Operation FM VSS 108 Pattern, Tailgate-Powered Upper / From: LH000001 / To: MH999999 		$230.45 1
18C617A LR134326
WIRING - TAILGATE
H/Lamp Operation LHD-Right Justify, Tailgate-Powered Upper / From: LH000001 / To: MH999999 		$230.45 1
18C617A LR134325
WIRING - TAILGATE
H/Lamp Operation RHD - Left Justify, With Conventional Tailgate / From: LH000001 / To: MH999999 		$221.94 1
18C617A LR162460
WIRING - TAILGATE
H/Lamp Operation FM VSS 108 Pattern, With Conventional Tailgate / From: NH000001 / To: NH999999 		$252.36 1
18C617A LR162461
WIRING - TAILGATE
H/Lamp Operation FM VSS 108 Pattern, Tailgate-Powered Upper / From: NH000001 / To: NH999999 		$252.36 1
18C617A LR162462
WIRING - TAILGATE
H/Lamp Operation RHD - Left Justify, With Conventional Tailgate / From: NH000001 / To: NH999999 		$252.36 1
18C617A LR162463
WIRING - TAILGATE
H/Lamp Operation LHD-Right Justify, Tailgate-Powered Upper / From: NH000001 / To: NH999999 		$233.67 1
18C617A LR173730
Wiring - Tailgate
H/Lamp Operation FM VSS 108 Pattern, With Conventional Tailgate / From: PH000001 		$218.31 1
18C617A LR173729
Wiring - Tailgate
H/Lamp Operation FM VSS 108 Pattern, Tailgate-Powered Upper / From: PH000001 		$218.31 1
18C617A LR173728
Wiring - Tailgate
H/Lamp Operation LHD-Right Justify, With Conventional Tailgate / From: PH000001 		$218.31 1
18C617A LR173727
Wiring - Tailgate
H/Lamp Operation RHD - Left Justify, Tailgate-Powered Upper / From: PH000001 		$206.94 1
18C617B LR065999
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Less Camera System, With Navigation Preparation / To: FH514708 		$256.41 1
18C617B LR066001
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Navigation Centre - Row, Rear View Camera-Fixed / To: FH516280 		$249.32 1
18C617B LR066004
WIRING - TAILGATE
HD Radio Broadcast, Navigation Centre - Asia, Surround Camera System / To: FH516280 		$249.32 1
18C617B LR066005
WIRING - TAILGATE
Digital Audio Broadcast, Less Camera System, Navigation Centre - Row / To: FH516280 		$249.32 1
18C617B LR066006
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, Rear View Camera-Fixed / To: FH516280 		$231.61 1
18C617B LR066007
WIRING - TAILGATE
Digital Audio Broadcast, Surround Camera System, With Navigation Preparation / To: FH516280 		$249.32 1
18C617B LR076210
WIRING - TAILGATE
HD Radio Broadcast, Rear View Camera-Fixed / From: FH516281 / To: GH584816 		$238.47 1
18C617B LR076211
WIRING - TAILGATE
Less Navigation System, Satellite Digital Broadcast, Surround Camera System / From: FH516281 / To: GH584816 		$249.46 1
18C617B LR076212
WIRING - TAILGATE
Digital Audio Broadcast, Less Camera System, Navigation Centre - Asia / From: FH516281 / To: GH584816 		$249.46 1
18C617B LR076213
WIRING - TAILGATE
Digital Audio Broadcast, Rear View Camera-Fixed / From: FH516281 / To: GH584816 		$249.46 1
18C617B LR076209
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Less Camera System, With Navigation Preparation / From: FH514709 / To: GH584816 		$249.46 1
18C617B LR084231
WIRING - TAILGATE
HD Radio Broadcast, Less Camera System, With Navigation Preparation / From: GH584817 / To: GH999999 		$266.56 1
18C617B LR084232
WIRING - TAILGATE
Analogue Audio Broadcast, Rear View Camera-Fixed / From: GH584817 / To: GH999999 		$256.30 1
18C617B LR084233
WIRING - TAILGATE
Analogue Audio Broadcast, Navigation Centre - Europe, Surround Camera System / From: GH584817 / To: GH999999 		$266.56 1
18C617B LR084234
WIRING - TAILGATE
Digital Audio Broadcast, Less Camera System, With Colour Nav. System NAS / From: GH584817 / To: GH999999 		$266.56 1
18C617B LR084235
WIRING - TAILGATE
Digital Audio Broadcast, Rear View Camera-Fixed / From: GH584817 / To: GH999999 		$235.83 1
18C617B LR076214
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, Surround Camera System / From: FH516281 / To: GH584816 		$249.46 1
18C617B LR084236
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, Surround Camera System / From: GH584817 / To: GH999999 		$266.56 1
18C617B LR085492
WIRING - TAILGATE
Less Camera System, Less Navigation System, Satellite Digital Broadcast / From: HH000001 / To: HH999999 		$224.87 1
18C617B LR085493
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Navigation Centre - China, Surround Camera System / From: HH000001 / To: HH999999 		$232.34 1
18C617B LR085494
WIRING - TAILGATE
Analogue Audio Broadcast, Infotainment Head Unit Level C, Less Navigation System, Rear View Camera-Fixed / From: HH000001 / To: HH999999 		$256.30 1
18C617B LR085495
WIRING - TAILGATE
Digital Audio Broadcast, Less Camera System, Navigation - SD Card / From: HH000001 / To: HH999999 		$266.56 1
18C617B LR085496
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, NGI Head Unit, Rear View Camera-Fixed / From: HH000001 / To: HH999999 		$257.52 1
18C617B LR085497
WIRING - TAILGATE
Digital Audio Broadcast, Infotainment Head Unit Level C, Less Navigation System, Rear View Camera-Fixed / From: HH000001 / To: HH999999 		$258.03 1
18C617B LR085498
WIRING - TAILGATE
Analogue Audio Broadcast, Less Camera System, Nav System/Dynmc Route Guide-VICS / From: HH000001 / To: HH999999 		$244.09 1
18C617B LR085499
WIRING - TAILGATE
Analogue Audio Broadcast, NGI Head Unit, Nav System/Dynmc Route Guide-VICS, Rear View Camera-Fixed / From: HH000001 / To: HH999999 		$266.56 1
18C617B LR097923
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Less Camera System, Less Navigation System / From: JH000001 / To: KH999999 		$255.43 1
18C617B LR097924
WIRING - TAILGATE
Analogue Audio Broadcast, Less Navigation System, Surround Camera System / From: JH000001 / To: KH999999 		$255.43 1
18C617B LR097925
WIRING - TAILGATE
Analogue Audio Broadcast, Infotainment Head Unit Level B, Less Navigation System, Rear View Camera-Fixed / From: JH000001 / To: KH999999 		$243.26 1
18C617B LR097926
WIRING - TAILGATE
Digital Audio Broadcast, Less Camera System, Less Navigation System / From: JH000001 / To: KH999999 		$243.26 1
18C617B LR097927
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, Surround Camera System / From: JH000001 / To: KH999999 		$244.31 1
18C617B LR097928
WIRING - TAILGATE
Digital Audio Broadcast, Infotainment Head Unit Level C, Less Navigation System, Rear View Camera-Fixed / From: JH000001 / To: KH999999 		$225.94 1
18C617B LR097929
WIRING - TAILGATE
Analogue Audio Broadcast, Less Camera System, NGI Head Unit, Nav System/Dynmc Route Guide-VICS / From: JH000001 / To: KH999999 		$255.43 1
18C617B LR097933
WIRING - TAILGATE
Analogue Audio Broadcast, NGI Head Unit, Nav System/Dynmc Route Guide-VICS, Rear View Camera-Fixed / From: JH000001 / To: KH999999 		$259.21 1
18C617B LR097930
WIRING - TAILGATE
Analogue Audio Broadcast, NGI Head Unit, Nav System/Dynmc Route Guide-VICS, Surround Camera System / From: JH000001 / To: KH999999 		$255.43 1
18C617B LR097932
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, NGI Head Unit, Rear View Camera-Fixed / From: JH000001 / To: KH999999 		$268.09 1
18C617B LR097931
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Less Navigation System, NGI Head Unit, Rear View Camera-Fixed / From: JH000001 / To: KH999999 		$236.10 1
18C617B LR134329
WIRING - TAILGATE
Analogue Audio Broadcast, Less Camera System, Less Navigation System / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134330
WIRING - TAILGATE
Digital Audio Broadcast, Less Camera System, Less Navigation System / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134331
WIRING - TAILGATE
Analogue Audio Broadcast, Less Camera System, Nav System/Dynmc Route Guide-VICS / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134332
WIRING - TAILGATE
HD And Sirius Radio Broadcast, Less Navigation System, Rear View Camera-Fixed / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134333
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, Rear View Camera-Fixed / From: LH000001 / To: LH999999 		$213.35 1
18C617B LR134334
WIRING - TAILGATE
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, Rear View Camera-Fixed / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134335
WIRING - TAILGATE
Analogue Audio Broadcast, Less Navigation System, Surround Camera System / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134336
WIRING - TAILGATE
Digital Audio Broadcast, Less Navigation System, Surround Camera System / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR134337
WIRING - TAILGATE
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, Surround Camera System / From: LH000001 / To: LH999999 		$239.70 1
18C617B LR143869
WIRING - TAILGATE
Digital Audio Broadcast, PIVI High / From: MH000001 / To: MH999999 		$243.28 1
18C617B LR143870
WIRING - TAILGATE
Digital Audio Broadcast, PIVI Mid, TCU Module - Russia / From: MH000001 / To: MH999999 		$243.28 1
18C617B LR143871
WIRING - TAILGATE
Analogue Audio Broadcast, Less Multi Media/Telematics System, Less Navigation System, PIVI Mid / From: MH000001 / To: MH999999 		$243.28 1
18C617B LR143873
WIRING - TAILGATE
Analogue Audio Broadcast, Less Multi Media/Telematics System, Nav System/Dynmc Route Guide-VICS, PIVI Mid / From: MH000001 / To: MH999999 		$243.28 1
18C617B LR143874
WIRING - TAILGATE
Analogue Audio Broadcast, Less Navigation System, PIVI Mid, TCU Module - China / From: MH000001 / To: MH999999 		$243.28 1
18C617B LR143875
WIRING - TAILGATE
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, PIVI Mid, TCU Module - ROW / From: MH000001 / To: MH999999 		$243.28 1
18C617B LR162466
WIRING - TAILGATE
Digital Audio Broadcast, PIVI Silver / From: NH000001 / To: NH999999 		$252.36 1
18C617B LR162467
WIRING - TAILGATE
Digital Audio Broadcast, PIVI Mid / From: NH000001 / To: NH999999 		$252.36 1
18C617B LR162468
WIRING - TAILGATE
Analogue Audio Broadcast, PIVI High, With Navigation System / From: NH000001 / To: NH999999 		$252.36 1
18C617B LR162469
WIRING - TAILGATE
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, PIVI Silver / From: NH000001 / To: NH999999 		$252.36 1
18C617B LR162470
WIRING - TAILGATE
Analogue Audio Broadcast, Navigation Centre - S. Korea, PIVI Mid / From: NH000001 / To: NH999999 		$252.36 1
18C617B LR162471
WIRING - TAILGATE
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, PIVI Mid / From: NH000001 / To: NH999999 		$252.36 1
18C617B LR173726
Wiring - Tailgate
Digital Audio Broadcast, PIVI Silver / From: PH000001 		$218.31 1
18C617B LR173724
Wiring - Tailgate
Analogue Audio Broadcast, Navigation Centre - S. Korea, PIVI Silver / From: PH000001 		$218.31 1
18C617B LR173723
Wiring - Tailgate
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, PIVI Silver / From: PH000001 		$218.31 1
18C617B LR173722
Wiring - Tailgate
HD And Sirius Radio Broadcast, Navigation Centre - S. Korea, PIVI Mid / From: PH000001 		$218.31 1
18C617B LR173721
Wiring - Tailgate
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS, PIVI Mid / From: PH000001 		$218.31 1
18C617C LR068329
WIRING - TAILGATE
Tailgate-Powered Upper / Tailgate Power Link Lead / To: HH999999 		$250.70 1
18C617C LR097675
WIRING - TAILGATE
Tailgate - Hands Free / Tailgate Power Link Lead / From: JH000001 		$253.82 1
18C617D LR134327
WIRING - TAILGATE
H/Lamp Operation FM VSS 108 Pattern, Tailgate-Powered Upper / Tailgate Power Link Lead / From: LH000001 / To: MH999999 		$239.70 1
18C617D LR134328
WIRING - TAILGATE
H/Lamp Operation RHD - Left Justify, Tailgate-Powered Upper / Tailgate Power Link Lead / From: LH000001 / To: MH999999 		$221.94 1
18C617D LR162464
WIRING - TAILGATE
H/Lamp Operation FM VSS 108 Pattern, Tailgate-Powered Upper / Tailgate Power Link Lead / From: NH000001 / To: NH999999 		$252.36 1
18C617D LR162465
WIRING - TAILGATE
H/Lamp Operation LHD-Right Justify, Tailgate-Powered Upper / Tailgate Power Link Lead / From: NH000001 / To: NH999999 		$233.67 1
18C617D LR173809
Wiring - Tailgate
H/Lamp Operation FM VSS 108 Pattern, Tailgate-Powered Upper / Tailgate Power Link Lead / From: PH000001 		$218.31 1
18C617D LR173810
Wiring - Tailgate
H/Lamp Operation LHD-Right Justify, Tailgate-Powered Upper / Tailgate Power Link Lead / From: PH000001 		$218.31 1
19A095 LR066061
WIRE - EARTH
To: GH586489 		$54.74 1
19A095 LR079581
WIRE - EARTH
From: GH586490 		$49.87 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
