Oil Pan/Oil Level Indicator (2.0L Aj20D4 Diesel High Pta, Halewood (Uk), 2.0L Aj20D4 Diesel Mid...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074127 O-RING $5.17 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.35 To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW $3.44 To Order
Photo Part No Description Price (each) Stock
LR074137 SCREW $1.95 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW $2.29 To Order
Photo Part No Description Price (each) Stock
LR073724 SCREW $2.05 To Order
Photo Part No Description Price (each) Stock
LR089234 STUD $5.08 To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $3.04 To Order
Photo Part No Description Price (each) Stock
LR087669 PAN - ENGINE OIL $558.16 To Order
LR140954 PAN - ENGINE OIL $613.95 To Order
LR154106 PAN - ENGINE OIL $766.89 To Order
Photo Part No Description Price (each) Stock
LR154091 PLUG - OIL DRAIN $14.72 To Order
Photo Part No Description Price (each) Stock
LR117522 TUBE - OIL LEVEL INDICATOR $52.97 To Order
LR117523 TUBE - OIL LEVEL INDICATOR $44.10 To Order
LR140666 TUBE - OIL LEVEL INDICATOR $49.85 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073634 TRAY - WINDAGE $495.82 To Order
LR137476 TRAY - WINDAGE $394.71 To Order
Photo Part No Description Price (each) Stock
LR124586 INSULATOR - OIL SUMP $114.64 To Order
View All

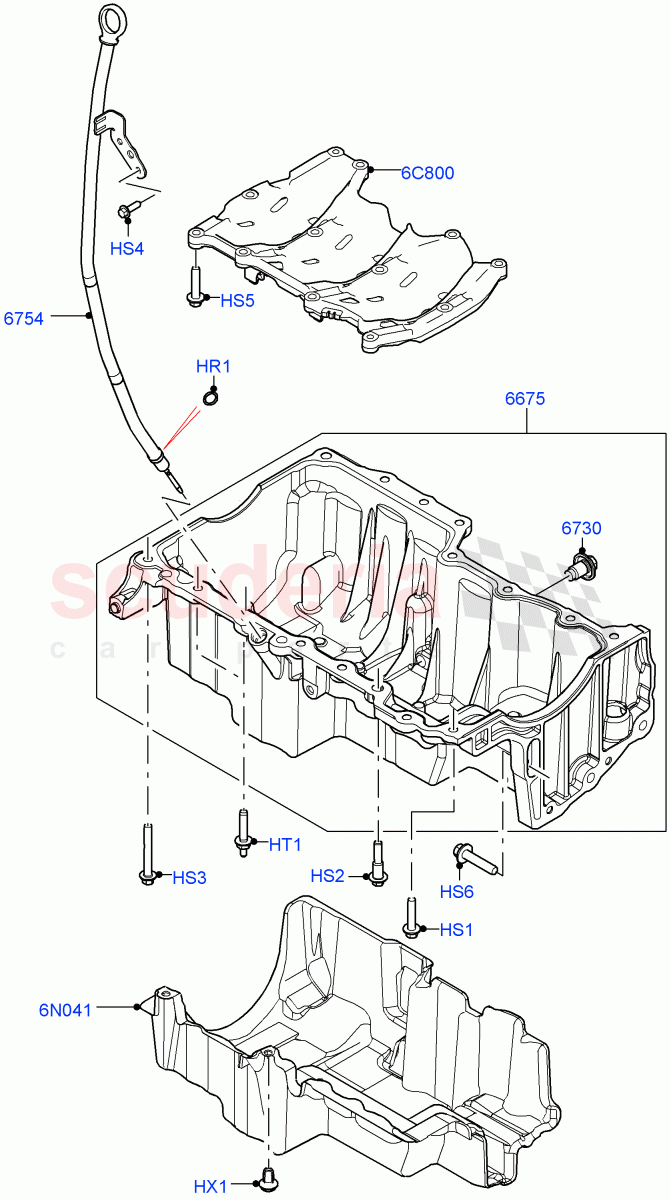

Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator / From: LH000001 		$5.17 1
HS1 LR073676
SCREW
M8 x 35mm / From: LH000001 		$2.35 11
HS2 LR073677
SCREW
M8 x 42mm / From: LH000001 		$3.44 2
HS3 LR074137
SCREW
M8 x 60mm / From: LH000001 		$1.95 1
HS4 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LH000001 		$2.31 1
HS5 LR073635
SCREW
M6 x 35MM, Windage Tray / From: LH000001 		$2.29 12
HS6 LR073724
SCREW
M8 X 25MM, Timing Chain Lower Cover / From: LH000001 		$2.05 1
HT1 LR089234
STUD
M8 X 35 + M6 X 12 / From: LH000001 		$5.08 2
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: LH000001 		$3.04 3
6C800 LR073634
TRAY - WINDAGE
From: LH000001 / To: LH840665 		$495.82 1
6C800 LR137476
TRAY - WINDAGE
From: LH840666 		$394.71 1
6N041 LR124586
INSULATOR - OIL SUMP
Oil Pan / From: LH000001 		$114.64 1
6675 LR087669
PAN - ENGINE OIL
From: LH000001 / To: LH869720 		$558.16 1
6675 LR140954
PAN - ENGINE OIL
From: LH869721 / To: MH883305 		$613.95 1
6675 LR154106
PAN - ENGINE OIL
From: MH883306 		$766.89 1
6730 LR154091
PLUG - OIL DRAIN
From: LH000001 		$14.72 1
6754 LR117522
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel Mid PTA / From: LH000001 / To: LH867940 		$52.97 1
6754 LR117523
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel High PTA / From: LH000001 / To: LH867940 		$44.10 1
6754 LR140666
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel High PTA / From: LH867941 		$49.85 1
6754 LR140665
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel Mid PTA / From: LH867941 		$50.44 1
