Name: Timing Gear Covers (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA)
Rating: 4.1 (1 reviews)

Timing Gear Covers (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Timing Gear Covers (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA, 2.0L...

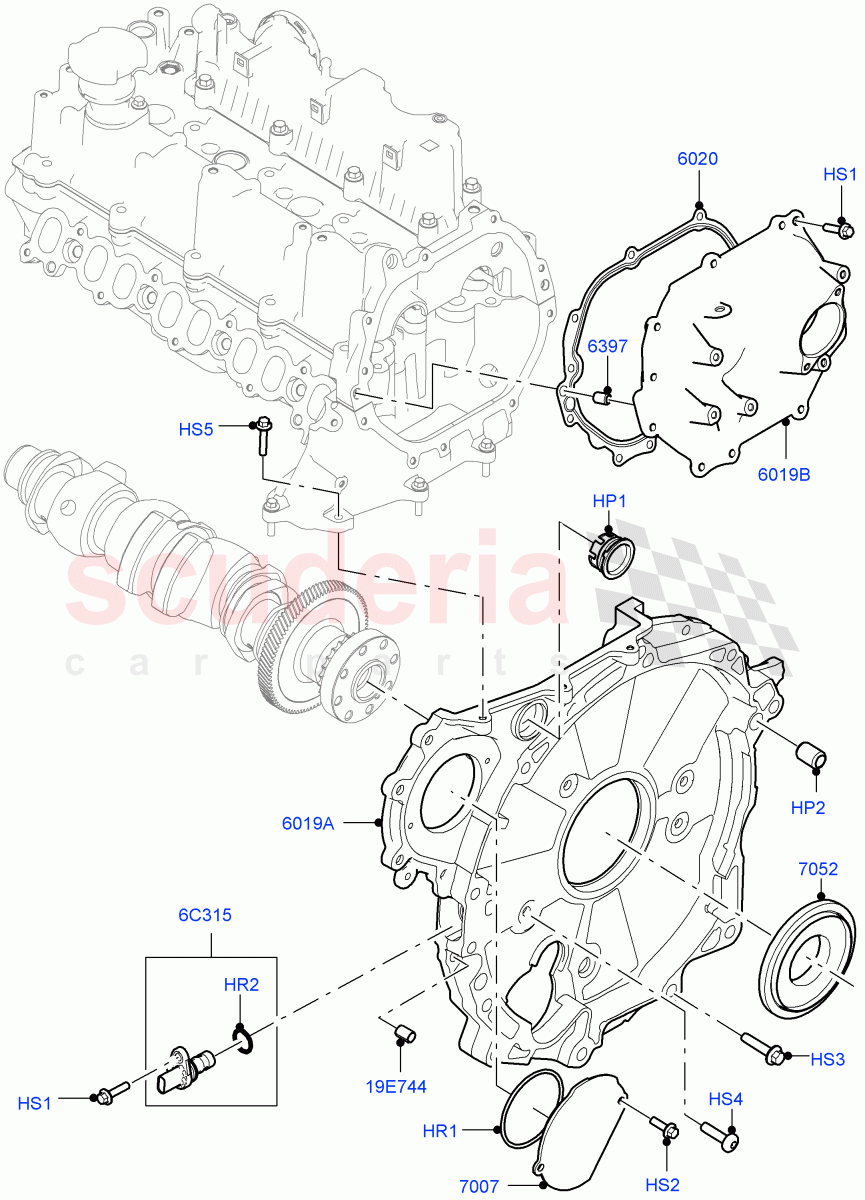

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR183648	PLUG - BLANKING	$11.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073794	RING - SEALING	$27.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	$4.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.31	To Order
	LR071842	SCREW AND WASHER - HEX HEAD	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082346	BOLT	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073816	GASKET - COVER	$31.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000335	DOWEL - PIN	$12.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073795	PLATE - BLANKING	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084639	SEAL - CRANKSHAFT OIL - REAR	$48.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096457	COVER - CYLINDER BLOCK REAR	$422.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079592	COVER - CYLINDER HEAD	$280.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	$148.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.35	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	LR183648	PLUG - BLANKING	LR183648 PLUG - BLANKING Blanking, Chain Drive, Includes O'Ring / From: LH000001	$11.19	1
HP2	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell / From: LH000001	$4.15	2
HR1	LR073794	RING - SEALING	LR073794 RING - SEALING From: LH000001	$27.49	1
HR2	LR095782	O-RING IN STOCK	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP) / From: LH000001 IN STOCK	$4.80	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, Timing Chain Cover / From: LH000001	$1.31	10
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM / From: LH000001	$1.31	1
HS2	LR082346	BOLT	LR082346 BOLT M6 X 20MM, Plate - Blanking / From: LH000001	$1.60	2
HS3	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: LH000001	$2.40	10
HS4	LR073786	SCREW	LR073786 SCREW M8 X 30MM / From: LH000001	$2.25	4
HS5	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: LH000001 IN STOCK	$2.63	3
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS From: LH000001	$148.59	1
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN IN STOCK	$3.35	2
6019A	LR096457	COVER - CYLINDER BLOCK REAR	LR096457 COVER - CYLINDER BLOCK REAR Lower, Timing Chain Cover / From: LH000001	$422.35	1
6019B	LR079592	COVER - CYLINDER HEAD	LR079592 COVER - CYLINDER HEAD Timing Chain Cover, Upper / From: LH000001	$280.09	1
6020	LR073816	GASKET - COVER	LR073816 GASKET - COVER Timing Chain Cover, Upper / From: LH000001	$31.30	1
6397	LR000335	DOWEL - PIN	LR000335 DOWEL - PIN	$12.29	2
7007	LR073795	PLATE - BLANKING	LR073795 PLATE - BLANKING Access Hole Cover / From: LH000001	$17.18	1
7052	LR084639	SEAL - CRANKSHAFT OIL - REAR	LR084639 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear / From: LH000001	$48.91	1
