Name: Intercooler/Air Ducts And Hoses (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

View All

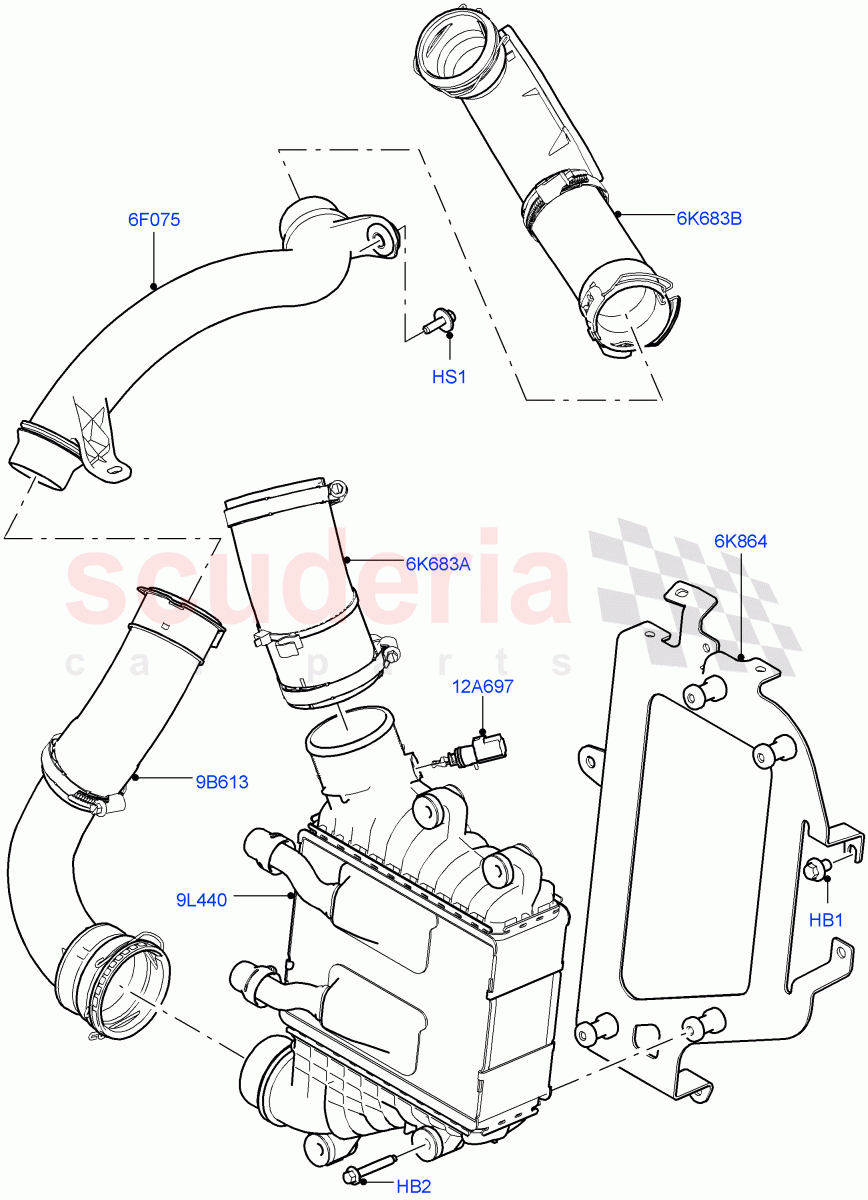

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	$1.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001925	SCREW AND WASHER	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072140	DUCT - AIR	$51.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071924	BRACKET - CHARGE AIR COOLER	$49.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072142	HOSE - INTERCOOLER	$82.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072118	COOLER - ENGINE CHARGE AIR	$596.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071745	SENSOR - AIR CHARGE TEMPERATURE	$48.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071998	HOSE - AIR	$29.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072134	DUCT - AIR INTAKE	$253.49	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: GT000001 IN STOCK	$0.68	4
HB2	LR001080	BOLT IN STOCK	LR001080 BOLT Hexagonal Head, M6 X 40MM / From: GT000001 IN STOCK	$1.37	4
HS1	LR001925	SCREW AND WASHER	LR001925 SCREW AND WASHER M6 X 20MM / From: GT000001	$1.15	2
6F075	LR072140	DUCT - AIR	LR072140 DUCT - AIR From: GT000001	$51.66	1
6K683A	LR071998	HOSE - AIR	LR071998 HOSE - AIR From: GT000001	$29.61	1
6K683B	LR072134	DUCT - AIR INTAKE	LR072134 DUCT - AIR INTAKE From: GT000001	$253.49	1
6K864	LR071924	BRACKET - CHARGE AIR COOLER	LR071924 BRACKET - CHARGE AIR COOLER From: GT000001	$49.32	1
9B613	LR072142	HOSE - INTERCOOLER	LR072142 HOSE - INTERCOOLER From: GT000001	$82.52	1
9L440	LR072118	COOLER - ENGINE CHARGE AIR	LR072118 COOLER - ENGINE CHARGE AIR From: GT000001	$596.62	1
12A697	LR071745	SENSOR - AIR CHARGE TEMPERATURE	LR071745 SENSOR - AIR CHARGE TEMPERATURE From: GT000001	$48.66	1

Intercooler/Air Ducts And Hoses (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]
