Name: Inlet Manifold (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V) FROMJT000001)
Rating: 5.0 (1 reviews)

View All

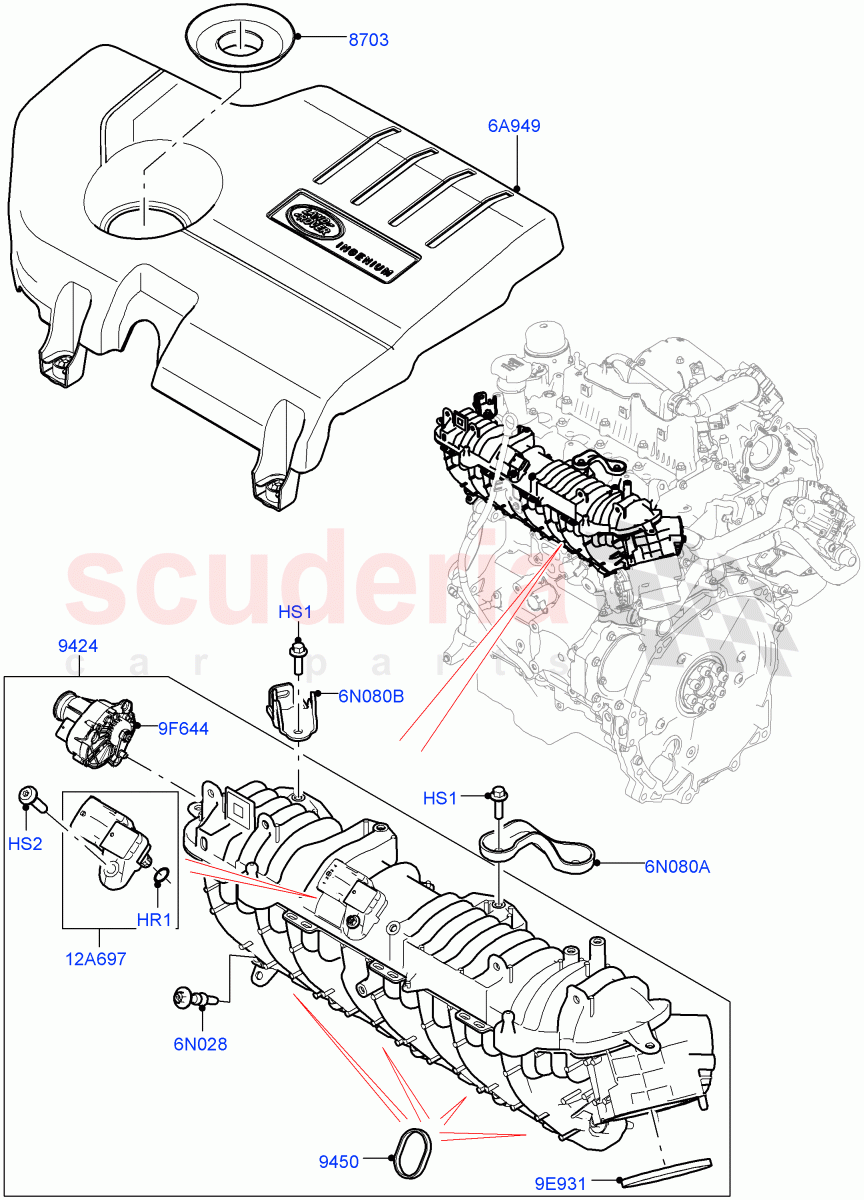

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$13.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094513	MANIFOLD - INLET	$630.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074070	GASKET - INTAKE MANIFOLD	$11.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094606	COVER - ENGINE TOP	$321.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$5.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085941	ACTUATOR - VARIABLE INTAKE SYSTEM	$222.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	$125.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073653	BRACKET - MANIFOLD	$19.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073654	BRACKET - MANIFOLD	$15.82	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: JT000001 IN STOCK	$4.67	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: JT000001 IN STOCK	$1.60	4
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor / From: JT000001	$0.63	1
6A949	LR094606	COVER - ENGINE TOP	LR094606 COVER - ENGINE TOP From: JT000001	$321.09	1
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: JT000001	$5.04	9
6N080A	LR073653	BRACKET - MANIFOLD	LR073653 BRACKET - MANIFOLD LH / From: JT000001	$19.98	1
6N080B	LR073654	BRACKET - MANIFOLD	LR073654 BRACKET - MANIFOLD RH / From: JT000001	$15.82	1
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: JT000001	$15.98	1
9F644	LR085941	ACTUATOR - VARIABLE INTAKE SYSTEM	LR085941 ACTUATOR - VARIABLE INTAKE SYSTEM From: JT000001	$222.80	1
12A697	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Pressure, Temperature / From: JT000001	$125.42	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: JT000001	$13.40	1
9424	LR094513	MANIFOLD - INLET	LR094513 MANIFOLD - INLET From: JT000001	$630.74	1
9450	LR074070	GASKET - INTAKE MANIFOLD	LR074070 GASKET - INTAKE MANIFOLD Inlet Manifold / From: JT000001	$11.26	8

Inlet Manifold (2.0L I4 Dsl High Dohc Aj200, Itatiaia (Brazil)) ((V) Fromjt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]
