Glove Box (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Glove Box (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006604 NUT - SPRING $1.02 IN STOCK
Photo Part No Description Price (each) Stock
LR006214 NUT $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR027849 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR000695 SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
RYP500700 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
LR006211 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR059873 SWITCH - GLOVE COMPARTMENT LIGHT $17.39 To Order
Photo Part No Description Price (each) Stock
LR060675 LATCH - GLOVEBOX $65.62 To Order
LR060678 LATCH - GLOVEBOX $65.91 To Order
LR060679 LATCH - GLOVEBOX $65.62 To Order
Photo Part No Description Price (each) Stock
LR073425 COMPARTMENT - GLOVE - CO-DRIVER $566.32 To Order
LR073427 COMPARTMENT - GLOVE - CO-DRIVER $615.64 To Order
LR073430 COMPARTMENT - GLOVE - CO-DRIVER $615.64 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027191 HINGE - STOWAGE BOX $4.22 To Order
Photo Part No Description Price (each) Stock
LR007275 STRIKER - GLOVE COMPARTMENT DOOR $9.63 To Order
LR117764 STRIKER - GLOVE COMPARTMENT DOOR $39.44 To Order
Photo Part No Description Price (each) Stock
LR007268 BUMP STOP $4.96 To Order
LR117756 BUMP STOP - GLOVE BOX $9.40 To Order
Photo Part No Description Price (each) Stock
LR052903 PANEL - GLOVE COMPMNT DOOR INNER $49.09 To Order
LR092767 PANEL - GLOVE COMPMNT DOOR INNER $34.30 To Order
LR117749 PANEL - GLOVE COMPMNT DOOR INNER $63.91 To Order
Photo Part No Description Price (each) Stock
LR117748 BRACKET - SUPPORT $66.21 To Order
LR140309 BRACKET - SUPPORT $65.52 To Order
Photo Part No Description Price (each) Stock
LR117758 STOP PIN $6.07 To Order
Photo Part No Description Price (each) Stock
LR059885 HOLDER - PENCIL $13.80 To Order
Photo Part No Description Price (each) Stock
LR026099 DAMPER - GLOVE BOX DOOR $14.81 To Order
LR117750 DAMPER - GLOVE BOX DOOR $31.58 To Order
Photo Part No Description Price (each) Stock
LR031965 BRACKET - STOWAGE MOUNTING $157.07 To Order
Photo Part No Description Price (each) Stock
LR133996 BRACKET - STOWAGE MOUNTING $35.54 To Order
View All

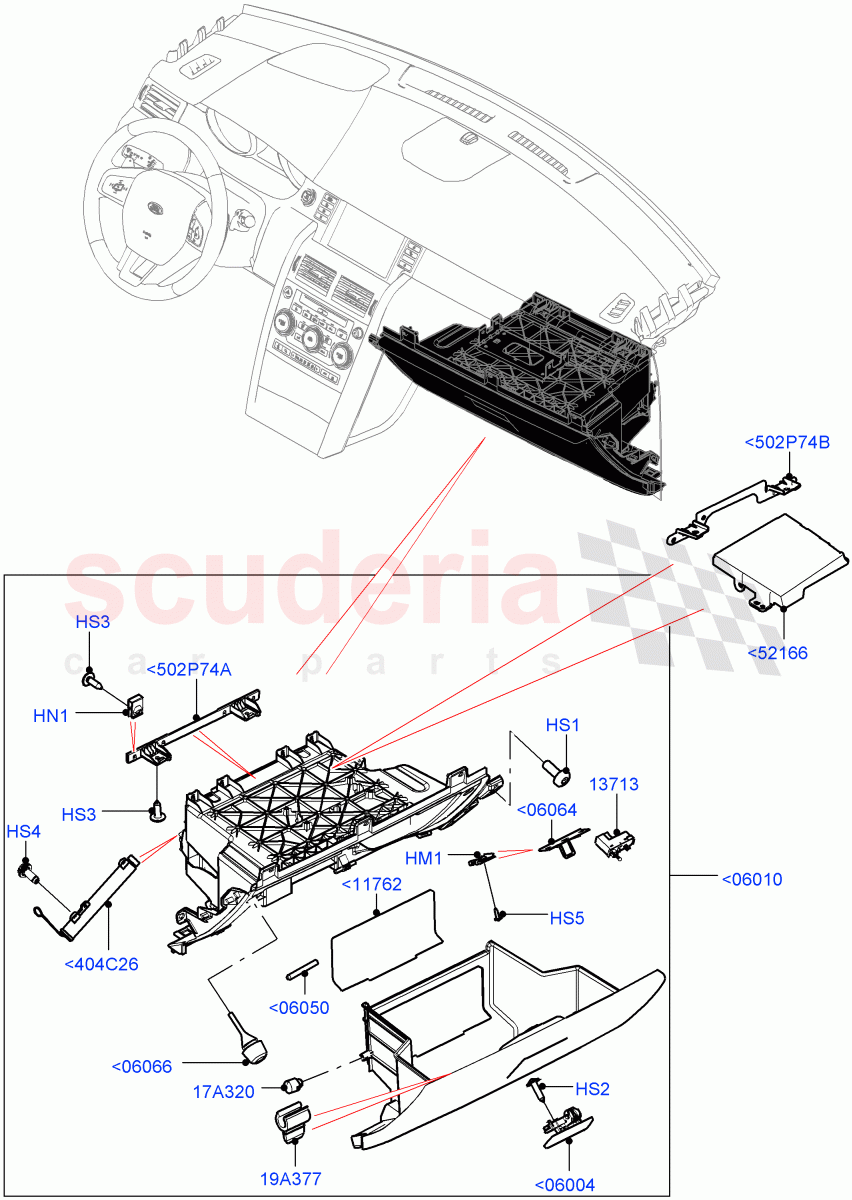

Glove Box (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<404C26 LR026099
DAMPER - GLOVE BOX DOOR
From: FG000001 / To: KG446856 		$14.81 1
<404C26 LR117750
DAMPER - GLOVE BOX DOOR
From: KG446857 		$31.58 1
<502P74A LR031965
BRACKET - STOWAGE MOUNTING
From: FG000001 		$157.07 1
<502P74B LR133996
BRACKET - STOWAGE MOUNTING
From: KG446857 		$35.54 1
<06004 LR060675
LATCH - GLOVEBOX
I/P Facia Contrast - Lunar/Glacia, I/P Glove/Stowage Box Flocked / From: FG000001 		$65.62 1
<06004 LR060678
LATCH - GLOVEBOX
I/P Facia Contrast - Ebony/Lunar / From: FG000001 		$65.91 1
<06004 LR060679
LATCH - GLOVEBOX
I/P Facia Cntr-Ebony Black/Almond, I/P Glove/Stowage Box Flocked / From: FG000001 		$65.62 1
<06010 LR073425
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Ebony Black, I/P Glove/Stowage Box Plastic, With Standard Glove Box / From: FG000001 / To: HG347883 		$566.32 1
<06010 LR073427
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Lunar/Glacia, I/P Glove/Stowage Box Flocked, Infotainment Head Unit Level B / From: FG000001 / To: HG347883 		$615.64 1
<06010 LR073430
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Ebony Black, I/P Glove/Stowage Box Flocked, Infotainment Head Unit Level B / From: FG000001 / To: HG347883 		$615.64 1
<06010 LR073431
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Cntr-Ebony Black/Almond, I/P Glove/Stowage Box Flocked, NGI Head Unit / From: FG000001 / To: HG347883 		$615.64 1
<06010 LR073443
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Lunar/Glacia, I/P Glove/Stowage Box Flocked, Infotainment Gen 2.1 Head Unit / From: FG000001 / To: KG446856 		$633.62 1
<06010 LR073446
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Ebony Black, I/P Glove/Stowage Box Flocked, Infotainment Gen 2.1 Head Unit, With Standard Flocked Glove Box / From: FG000001 / To: KG446856 		$633.62 1
<06010 LR073447
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Cntr-Ebony Black/Almond, I/P Glove/Stowage Box Flocked, Infotainment Gen 2.1 Head Unit, With Standard Flocked Glove Box / From: FG000001 / To: KG446856 		$633.62 1
<06010 LR092299
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Ebony Black, I/P Glove/Stowage Box Plastic, Infotainment Head Unit Level C / From: HG347884 / To: KG446856 		$700.36 1
<06010 LR092301
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Lunar/Glacia, I/P Glove/Stowage Box Flocked, Infotainment Head Unit Level C, With Standard Flocked Glove Box / From: HG347884 / To: KG446856 		$636.71 1
<06010 LR092304
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Contrast - Ebony Black, I/P Glove/Stowage Box Flocked, Infotainment Head Unit Level B, With Standard Flocked Glove Box / From: HG347884 / To: KG446856 		$700.36 1
<06010 LR092305
COMPARTMENT - GLOVE - CO-DRIVER
I/P Facia Cntr-Ebony Black/Almond, I/P Glove/Stowage Box Flocked, Infotainment Head Unit Level C, With Standard Flocked Glove Box / From: HG347884 / To: KG446856 		$615.64 1
<06010 LR134643
COMPARTMENT - GLOVE - CO-DRIVER
From: KG446857 		$462.26 1
<06050 LR027191
HINGE - STOWAGE BOX
From: KG446857 		$4.22 2
<06064 LR007275
STRIKER - GLOVE COMPARTMENT DOOR
From: FG000001 / To: KG446856 		$9.63 1
<06064 LR117764
STRIKER - GLOVE COMPARTMENT DOOR
From: KG446857 		$39.44 1
<06066 LR007268
BUMP STOP
From: FG000001 / To: KG446856 		$4.96 1
<06066 LR117756
BUMP STOP - GLOVE BOX
From: KG446857 		$9.40 1
<11762 LR052903
PANEL - GLOVE COMPMNT DOOR INNER
From: FG000001 / To: HG347883 		$49.09 1
<11762 LR092767
PANEL - GLOVE COMPMNT DOOR INNER
From: HG347884 / To: KG446856 		$34.30 1
<11762 LR117749
PANEL - GLOVE COMPMNT DOOR INNER
From: KG446857 		$63.91 1
<52166 LR117748
BRACKET - SUPPORT
From: KG446857 / To: LG109567 		$66.21 1
<52166 LR140309
BRACKET - SUPPORT
From: LG109567 		$65.52 1
HM1 LR006604
NUT - SPRING
4.2 X 0.5 X 2.0 / From: FG000001
IN STOCK 		$1.02 1
HN1 LR006214
NUT
4.2 X 2.25 - 3 / From: FG000001
IN STOCK 		$1.11 1
HS1 LR027849
SCREW
M6 X 16MM / From: FG000001 		$1.42 1
HS2 LR000695
SCREW
M4 x 10MM / From: FG000001 		$1.18 1
HS3 PYP500140
SCREW
4.2 x 13MM, Torx / From: FG000001
IN STOCK 		$0.77 1
HS4 RYP500700
SCREW
M5 X 12MM, Torx / From: FG000001 		$0.65 1
HS5 LR006211
SCREW
4.2 x 16MM, Torx / From: FG000001
IN STOCK 		$0.52 1
17A320 LR117758
STOP PIN
From: KG446857 		$6.07 2
19A377 LR059885
HOLDER - PENCIL
From: FG000001 		$13.80 1
13713 LR059873
SWITCH - GLOVE COMPARTMENT LIGHT
From: FG000001 		$17.39 1
