Front Brake Discs And Calipers (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Front Brake Discs And Calipers (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.20 IN STOCK
LR131782 BOLT - HEX. HEAD - FLANGED $1.89 To Order
Photo Part No Description Price (each) Stock
LR058339 BOLT $4.47 IN STOCK
LR090697 BOLT $3.54 To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR059122 DISC - BRAKE - VENTED $167.70 IN STOCK
LR115006 DISC - BRAKE - VENTED $203.66 To Order
LR115005 DISC - BRAKE - VENTED $177.17 To Order
Photo Part No Description Price (each) Stock
LR160435 BRAKE PADS - LESS SPRINGS $147.31 To Order
LR091308 BRAKE PADS - LESS SPRINGS $257.18 To Order
Photo Part No Description Price (each) Stock
LR061377 SCREW - BLEED $13.50 To Order
Photo Part No Description Price (each) Stock
LR061369 CALIPER - BRAKE $269.03 To Order
LR061370 CALIPER - BRAKE $279.93 To Order
LR091302 CALIPER - BRAKE - LESS PADS $533.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061366 BRACKET - BRAKE CALIPER $88.28 To Order
Photo Part No Description Price (each) Stock
LR061374 SPRING - BRAKE CALIPER $11.69 IN STOCK
Photo Part No Description Price (each) Stock
LR114030 BRACKET - BRAKE CALIPER $151.29 To Order
LR114034 BRACKET - BRAKE CALIPER $143.25 To Order
Photo Part No Description Price (each) Stock
LR057825 SHIELD - BRAKE DISC SPLASH $63.90 To Order
LR057826 SHIELD - BRAKE DISC SPLASH $63.90 To Order
LR118814 SHIELD - BRAKE DISC SPLASH $63.90 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027312 CAP - BLEED SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR061375 KIT - RETAINING PIN $26.36 IN STOCK
Photo Part No Description Price (each) Stock
LR061376 KIT - BUSH $29.21 To Order
Photo Part No Description Price (each) Stock
LR061365 WIRE - BRAKE PAD WEAR WARNING $36.70 To Order
LR121267 WIRE - BRAKE PAD WEAR WARNING $40.46 IN STOCK
LR115018 WIRE - BRAKE PAD WEAR WARNING $40.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR064690 BRACKET - WIRING $8.47 To Order
Photo Part No Description Price (each) Stock
LR061976 BRACKET - WIRING CONNECTOR $14.85 To Order
LR079314 BRACKET - WIRING CONNECTOR $36.78 To Order
LR115017 BRACKET - WIRING $25.32 To Order
...and 1 more part variants. See table on right for more details.
View All

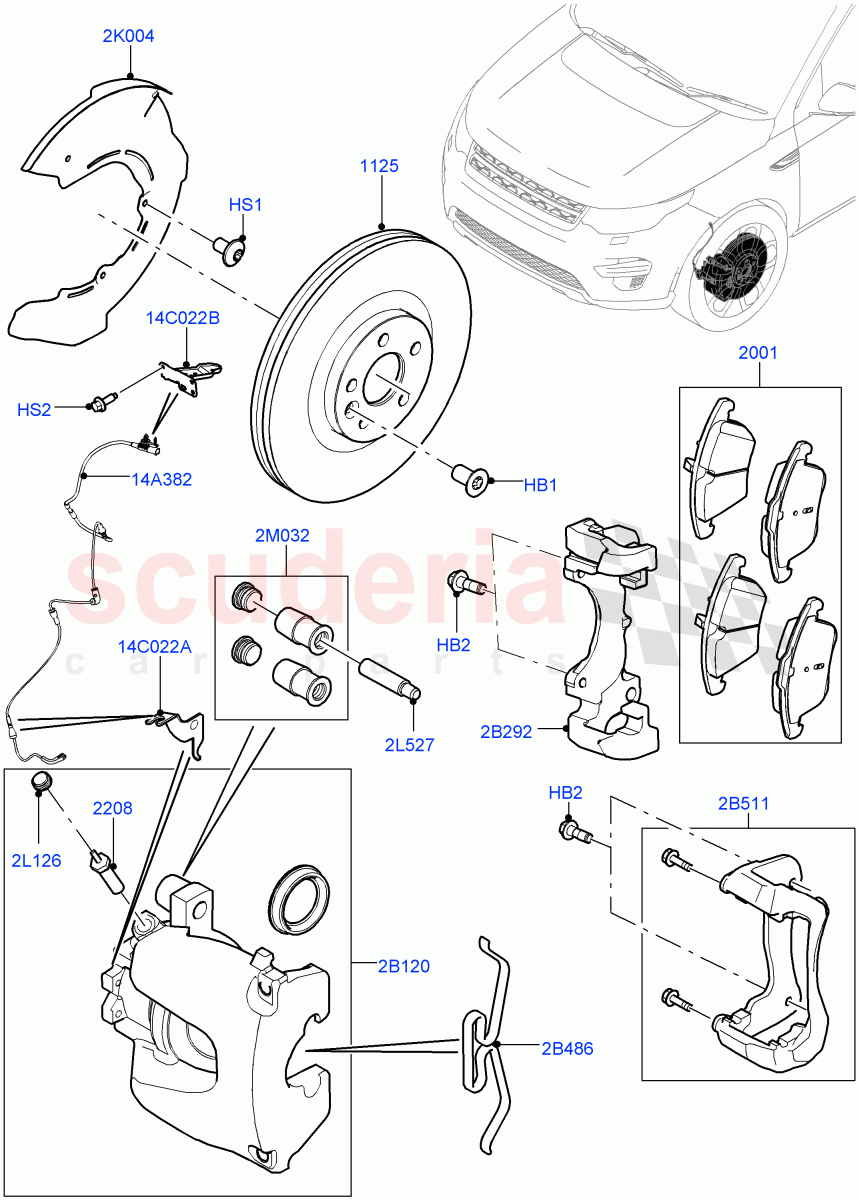

Front Brake Discs And Calipers (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: FG000001 / To: LG106567
IN STOCK 		$3.20 2
HB1 LR131782
BOLT - HEX. HEAD - FLANGED
M8 X 12, Torx / From: LG106567 		$1.89 2
HB2 LR058339
BOLT
M12 X 42MM / From: FG000001 / To: KG446856
IN STOCK 		$4.47 4
HB2 LR090697
BOLT
Hexagonal Head, M14 X 43mm / From: KG446857 		$3.54 4
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: FG000001
IN STOCK 		$1.24 6
HS2 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / From: FG000001
IN STOCK 		$0.73 2
2B120 LR061369
CALIPER - BRAKE
Disc Brake Size Frt 17/RR 17 / RH, For 17" Brakes / From: FG000001 		$269.03 1
2B120 LR061370
CALIPER - BRAKE
Disc Brake Size Frt 17/RR 17 / LH, For 17" Brakes / From: FG000001 		$279.93 1
2B120 LR091302
CALIPER - BRAKE - LESS PADS
Front Disc And Caliper Size 18 / RH, For 18" Brakes 		$533.06 1
2B120 LR091303
CALIPER - BRAKE - LESS PADS
Disc And Caliper Size-Frt 18/RR 17 / LH, For 18" Brakes 		$533.06 1
2B292 LR061366
BRACKET - BRAKE CALIPER
RH/LH, To Caliper / From: FG000001 		$88.28 2
2B486 LR061374
SPRING - BRAKE CALIPER
From: FG000001
IN STOCK 		$11.69 2
2B511 LR114030
BRACKET - BRAKE CALIPER
Disc And Caliper Size-Frt 18/RR 17, With Non Painted Brake Calipers / RH / From: KG446857 		$151.29 1
2B511 LR114034
BRACKET - BRAKE CALIPER
Disc And Caliper Size-Frt 18/RR 17, With Non Painted Brake Calipers / LH / From: KG446857 		$143.25 1
2K004 LR057825
SHIELD - BRAKE DISC SPLASH
RH / From: FG000001 / To: KG446856 		$63.90 1
2K004 LR057826
SHIELD - BRAKE DISC SPLASH
LH / From: FG000001 / To: KG446856 		$63.90 1
2K004 LR118814
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 17 / LH / From: KG446857 		$63.90 1
2K004 LR118813
SHIELD - BRAKE DISC SPLASH
Front Disc And Caliper Size 17 / RH / From: KG446857 		$63.90 1
2K004 LR118811
SHIELD - SPLASH
Disc And Caliper Size-Frt 18/RR 17 / LH / From: KG446857 		$63.90 1
2K004 LR118812
SHIELD - SPLASH
Disc And Caliper Size-Frt 18/RR 17 / RH / From: KG446857 		$63.90 1
2L126 LR027312
CAP - BLEED SCREW
From: FG000001
IN STOCK 		$1.32 2
2L527 LR061375
KIT - RETAINING PIN
Pin - Slide / From: FG000001
IN STOCK 		$26.36 4
2M032 LR061376
KIT - BUSH
Includes 2 Slide Pin Bushes And 2 Caps / From: FG000001 		$29.21 2
14A382 LR061365
WIRE - BRAKE PAD WEAR WARNING
From: FG000001 / To: KG436579 		$36.70 1
14A382 LR121267
WIRE - BRAKE PAD WEAR WARNING
Disc Brake Size Frt 17/RR 17 / From: KG436579 / To: KG446857
IN STOCK 		$40.46 1
14A382 LR115018
WIRE - BRAKE PAD WEAR WARNING
Disc And Caliper Size-Frt 18/RR 17 / From: KG446857 		$40.23 1
14A382 LR115019
WIRE - BRAKE PAD WEAR WARNING
Disc Brake Size Frt 17/RR 17 / From: KG446857 		$40.23 1
14C022A LR064690
BRACKET - WIRING
From: FG000001 		$8.47 2
14C022B LR061976
BRACKET - WIRING CONNECTOR
From: FG000001 / To: HG379387 		$14.85 1
14C022B LR079314
BRACKET - WIRING CONNECTOR
From: HG379388 / To: KG446856 		$36.78 1
14C022B LR115017
BRACKET - WIRING
LH, Front, Mounted To Damper / From: KG446857 		$25.32 1
14C022B LR115016
BRACKET - WIRING
RH, Front, Mounted To Damper / From: KG446857 		$26.60 1
1125 LR059122
DISC - BRAKE - VENTED
325MM, RH/LH / From: FG000001 / To: KG446856
IN STOCK 		$167.70 2
1125 LR115006
DISC - BRAKE - VENTED
Disc And Caliper Size-Frt 18/RR 17 / 349MM, RH/LH / From: KG446857 		$203.66 2
1125 LR115005
DISC - BRAKE - VENTED
Disc Brake Size Frt 17/RR 17 / 325MM, RH/LH / From: KG446857 		$177.17 2
2001 LR160435
BRAKE PADS - LESS SPRINGS
Disc Brake Size Frt 17/RR 16 / Less Clips / From: FG000001 		$147.31 1
2001 LR091308
BRAKE PADS - LESS SPRINGS
Disc And Caliper Size-Frt 18/RR 16 / Axle Set, For 18" Brakes, Less Clips, Standard Performance 		$257.18 1
2208 LR061377
SCREW - BLEED
With Cap / From: FG000001 		$13.50 2
