Name: Transmission External Components (9 Speed Auto AWD, Halewood (UK)) ((V) FROMEH000001)
Rating: 5.0 (1 reviews)

Transmission External Components (9 Speed Auto AWD, Halewood (UK)) ((V) FROMEH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

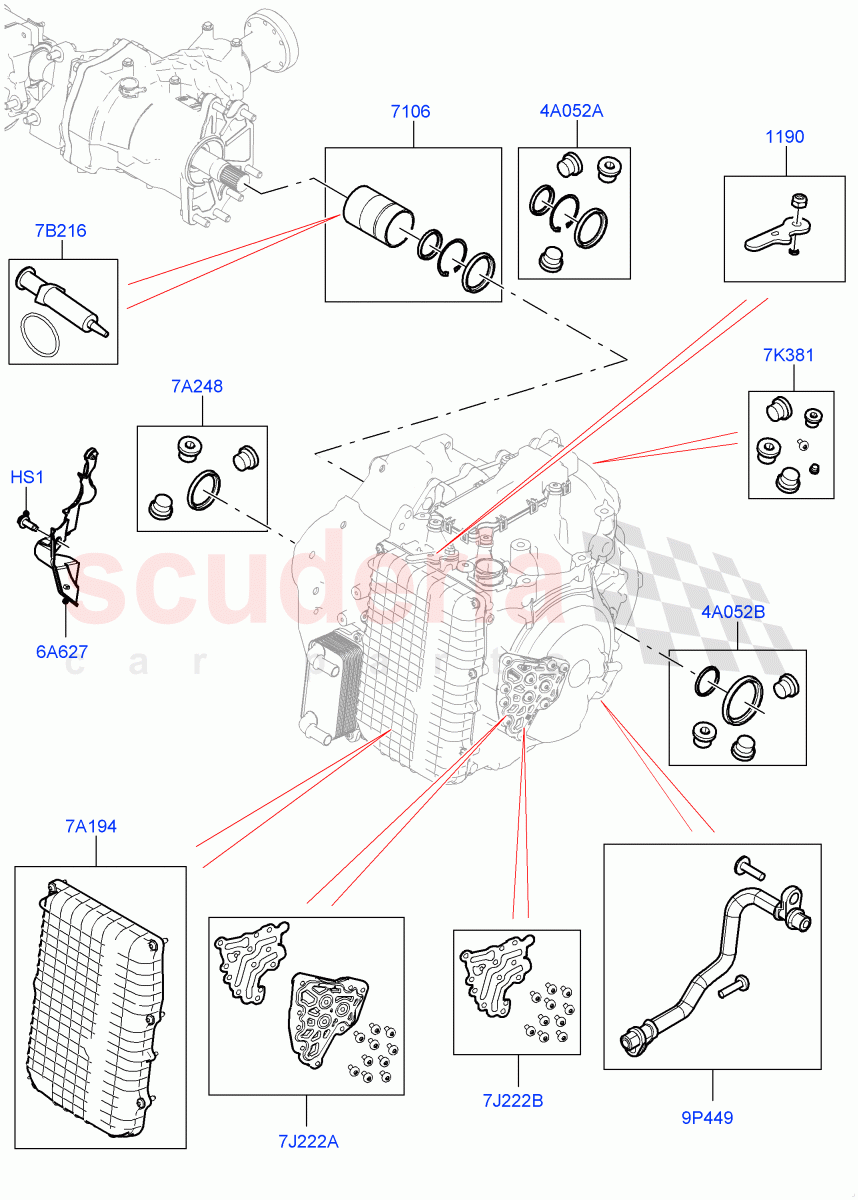

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Transmission External Components (9 Speed Auto AWD, Halewood (UK)) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049880	SEAL - SELECTOR SHAFT	$85.32	To Order
	LR086163	SEAL - SELECTOR SHAFT	$98.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123857	KIT - SLEEVE TRANSMISSION	$466.44	IN STOCK
	LR123857	KIT - SLEEVE TRANSMISSION	$466.44	IN STOCK
	LR123857	KIT - SLEEVE TRANSMISSION	$466.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR065313	COVER - GEARBOX	$15.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049877	PAN - TRANSMISSION OIL	$444.83	To Order
	LR086162	PAN - TRANSMISSION OIL	$400.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049899	SEAL - CONVERTER	$91.11	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	$25.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049876	PLUG - TRANSMISSION	$40.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049923	KIT - OIL PIPE	$127.62	To Order
	LR086169	KIT - OIL PIPE	$108.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123856	SEAL - OUTPUT SHAFT OIL	$114.41	To Order
	LR123856	SEAL - OUTPUT SHAFT OIL	$114.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049886	SEAL - OUTPUT SHAFT OIL	$103.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049904	COVER - TRANSMISSION HOUSING END	$663.40	To Order
	LR081666	COVER - TRANSMISSION HOUSING END	$564.79	To Order
	LR086158	COVER PLATE - TRANSMISSION	$668.52	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR086413	KIT - FIXING PARTS	$43.93	To Order
	LR123903	KIT - FIXING PARTS	$49.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM	$0.61	1
4A052A	LR123856	SEAL - OUTPUT SHAFT OIL	LR123856 SEAL - OUTPUT SHAFT OIL Output Shaft / To: JH999999	$114.41	1
4A052A	LR123856	SEAL - OUTPUT SHAFT OIL	LR123856 SEAL - OUTPUT SHAFT OIL Output Shaft / From: KH000001	$114.41	1
4A052B	LR049886	SEAL - OUTPUT SHAFT OIL	LR049886 SEAL - OUTPUT SHAFT OIL Transmission	$103.28	1
6A627	LR065313	COVER - GEARBOX	LR065313 COVER - GEARBOX	$15.88	1
7A194	LR049877	PAN - TRANSMISSION OIL	LR049877 PAN - TRANSMISSION OIL With Fixing Parts, With Gasket / To: GH609106	$444.83	1
7A194	LR086162	PAN - TRANSMISSION OIL	LR086162 PAN - TRANSMISSION OIL With Fixing Parts, With Gasket / From: GH609107	$400.16	1
7A248	LR049899	SEAL - CONVERTER	LR049899 SEAL - CONVERTER Converter	$91.11	1
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Connecting Sleeve Grease - 'O' Ring Not Required	$25.33	1
7J222A	LR049904	COVER - TRANSMISSION HOUSING END	LR049904 COVER - TRANSMISSION HOUSING END With Fixing Parts / To: GH576558	$663.40	1
7J222A	LR081666	COVER - TRANSMISSION HOUSING END	LR081666 COVER - TRANSMISSION HOUSING END With Fixing Parts / From: GH576559 / To: GH600916	$564.79	1
7J222A	LR086158	COVER PLATE - TRANSMISSION	LR086158 COVER PLATE - TRANSMISSION With Fixing Parts / From: GH600917 / To: JH999999	$668.52	1
7J222A	LR123896	COVER PLATE - TRANSMISSION	LR123896 COVER PLATE - TRANSMISSION With Fixing Parts / From: KH000001	$614.27	1
7J222B	LR086413	KIT - FIXING PARTS	LR086413 KIT - FIXING PARTS To: JH999999	$43.93	1
7J222B	LR123903	KIT - FIXING PARTS	LR123903 KIT - FIXING PARTS From: KH000001	$49.50	1
7K381	LR049876	PLUG - TRANSMISSION	LR049876 PLUG - TRANSMISSION Transmission	$40.06	1
9P449	LR049923	KIT - OIL PIPE	LR049923 KIT - OIL PIPE Includes O-Rings / To: FH999999	$127.62	1
9P449	LR086169	KIT - OIL PIPE	LR086169 KIT - OIL PIPE Includes O-Rings / From: GH000001	$108.27	1
1190	LR049880	SEAL - SELECTOR SHAFT	LR049880 SEAL - SELECTOR SHAFT To: GH609106	$85.32	1
1190	LR086163	SEAL - SELECTOR SHAFT	LR086163 SEAL - SELECTOR SHAFT From: GH609107	$98.66	1
7106	LR123857	KIT - SLEEVE TRANSMISSION IN STOCK	LR123857 KIT - SLEEVE TRANSMISSION Differential / To: FH999999 IN STOCK	$466.44	1
7106	LR123857	KIT - SLEEVE TRANSMISSION IN STOCK	LR123857 KIT - SLEEVE TRANSMISSION Differential / From: GH000001 / To: JH999999 IN STOCK	$466.44	1
7106	LR123857	KIT - SLEEVE TRANSMISSION IN STOCK	LR123857 KIT - SLEEVE TRANSMISSION Differential / From: KH000001 IN STOCK	$466.44	1

Transmission External Components (9 Speed Auto Awd, Halewood (Uk)) ((V) Fromeh000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Transmission External Components (9 Speed Auto AWD, Halewood (UK)) ((V) FROMEH000001)
