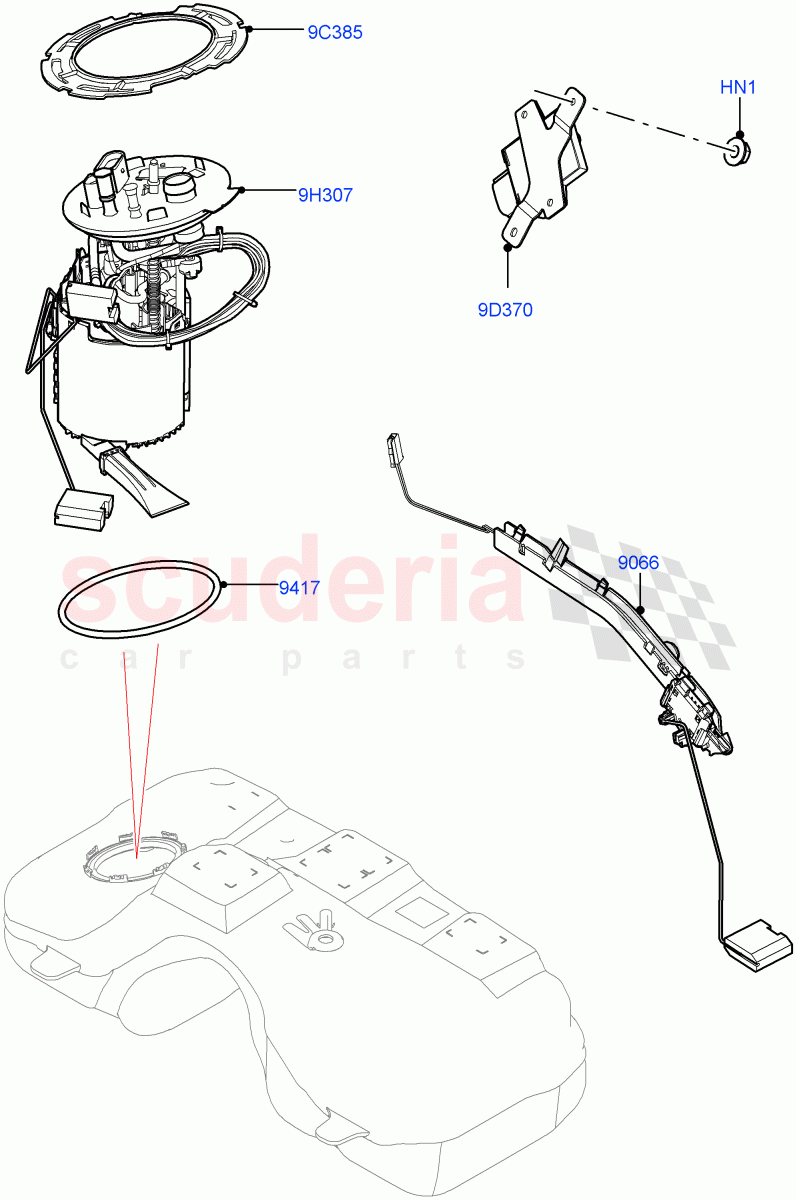

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR137972	RING - RETAINING	$33.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065349	SENDER AND PUMP	$604.70	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: MH000001 IN STOCK	$1.47	2
9C385	LR137972	RING - RETAINING	LR137972 RING - RETAINING From: MH000001	$33.09	1
9D370	LR133947	CONTROL - FUEL PUMP DRIVE	LR133947 CONTROL - FUEL PUMP DRIVE From: MH000001 / To: PH914761	$206.00	1
9D370	LR172881	CONTROL - FUEL PUMP DRIVE	LR172881 CONTROL - FUEL PUMP DRIVE From: PH914762	$212.59	1
9H307	LR065349	SENDER AND PUMP	LR065349 SENDER AND PUMP From: MH000001	$604.70	1
9066	LR139415	SENSOR - FUEL LEVEL	LR139415 SENSOR - FUEL LEVEL With Bracket / From: MH000001 / To: MH901010	$170.02	1
9066	LR159989	SENSOR - FUEL LEVEL	LR159989 SENSOR - FUEL LEVEL With Bracket / From: MH901011	$194.13	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: MH000001 IN STOCK	$10.55	1
