Name: Cylinder Head Cover (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High)
Rating: 5.0 (1 reviews)

Cylinder Head Cover (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head Cover (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High)

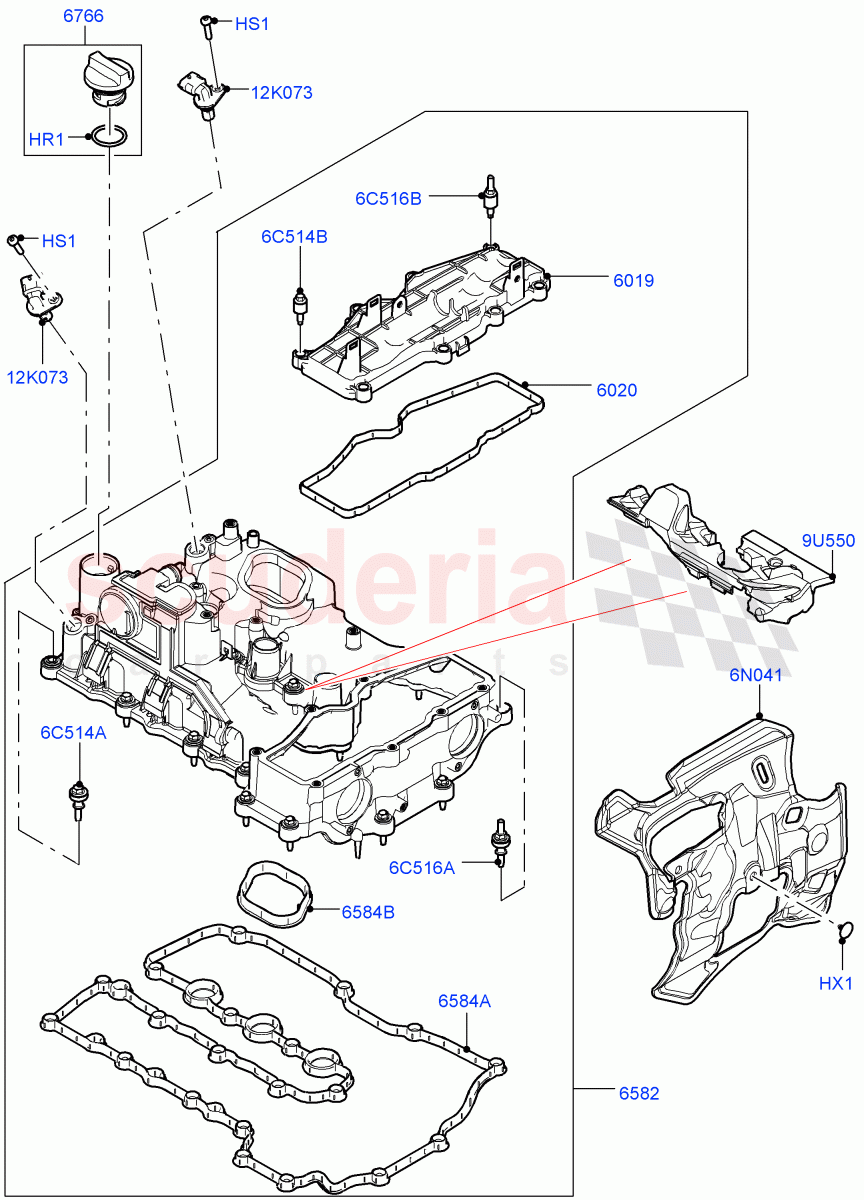

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	$5.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125568	PIN - FIXING	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140253	COVER - CYLINDER HEAD	$388.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140254	GASKET - COVER	$20.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125453	COVER - CAMSHAFT	$332.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094641	CAP - OIL FILLER	$35.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140255	GASKET - COVER	$50.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140289	GASKET - COVER	$50.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125567	INSULATOR - CYLINDER HEAD	$81.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125402	COVER - INSULATOR	$34.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125465	SENSOR - CAMSHAFT POSITION	$136.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140285	SCREW AND SLEEVE - VALVE COVER	$18.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140287	SCREW AND SLEEVE - VALVE COVER	$14.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140286	STUD AND SLEEVE - VALVE COVER	$22.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140288	STUD AND SLEEVE - VALVE COVER	$15.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073781	O-RING IN STOCK	LR073781 O-RING Filler Cap, IN STOCK	$5.08	1
HS1	LR073666	SCREW	LR073666 SCREW Camshaft Position Sensor, M5 x 20MM / From: KG446856	$1.42	2
HX1	LR125568	PIN - FIXING	LR125568 PIN - FIXING 4.75 X 0.79-7,9, Pin / From: KG446856	$1.17	2
6C514A	LR140285	SCREW AND SLEEVE - VALVE COVER	LR140285 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 x 35MM / From: KG446856	$18.11	18
6C514B	LR140287	SCREW AND SLEEVE - VALVE COVER	LR140287 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 X 28.5MM / From: KG446856	$14.74	4
6C516A	LR140286	STUD AND SLEEVE - VALVE COVER	LR140286 STUD AND SLEEVE - VALVE COVER Grommet Included, M6 x 15MM, M6 x 35MM / From: KG446856	$22.76	2
6C516B	LR140288	STUD AND SLEEVE - VALVE COVER	LR140288 STUD AND SLEEVE - VALVE COVER Stud & Grommet Assy / From: KG446856	$15.37	4
6N041	LR125567	INSULATOR - CYLINDER HEAD	LR125567 INSULATOR - CYLINDER HEAD From: KG446856	$81.44	1
9U550	LR125402	COVER - INSULATOR	LR125402 COVER - INSULATOR From: KG446856	$34.79	1
12K073	LR125465	SENSOR - CAMSHAFT POSITION	LR125465 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor, RH And LH / From: KG446856	$136.10	2
6019	LR140253	COVER - CYLINDER HEAD	LR140253 COVER - CYLINDER HEAD Timing Chain, Upper / From: KG446856	$388.97	1
6020	LR140254	GASKET - COVER	LR140254 GASKET - COVER Cover, Upper / From: KG446856	$20.69	1
6582	LR125453	COVER - CAMSHAFT	LR125453 COVER - CAMSHAFT Includes Oil Separator / From: KG446856	$332.05	1
6584A	LR140255	GASKET - COVER	LR140255 GASKET - COVER Camshaft Cover / From: KG446856	$50.45	1
6584B	LR140289	GASKET - COVER	LR140289 GASKET - COVER For Fuel Pump Bracket / From: KG446856	$50.45	1
6766	LR094641	CAP - OIL FILLER	LR094641 CAP - OIL FILLER From: KG446856	$35.88	1

Cylinder Head Cover (1.5L Aj20P3 Petrol High Phev, Changsu (China), 1.5L Aj20P3 Petrol High)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head Cover (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High)
