Cooling System Pipes And Hoses (Combustion Unit) (1.5L Aj20P3 Petrol High Phev, Halewood (Uk)) ((V)...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Cooling System Pipes And Hoses (Combustion Unit) (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500260 BOLT - HEX.HEAD $3.99 To Order
Photo Part No Description Price (each) Stock
LR125552 HOSE - COOLING SYSTEM $101.21 To Order
LR189302 HOSE - COOLING SYSTEM $141.98 To Order
Photo Part No Description Price (each) Stock
LR126051 BRACKET - COOLING HOSE $22.60 To Order
Photo Part No Description Price (each) Stock
LR125549 HOSE - OIL COOLER $66.33 To Order
Photo Part No Description Price (each) Stock
LR125550 DUCT AND VALVE - AIR CLEANER $58.67 To Order
Photo Part No Description Price (each) Stock
LR135840 HOSE - RADIATOR $182.29 To Order
Photo Part No Description Price (each) Stock
LR125555 HOSE - COOLING SYSTEM $79.76 To Order
Photo Part No Description Price (each) Stock
LR137641 HOSE - RADIATOR $73.80 To Order
Photo Part No Description Price (each) Stock
LR135308 HOSE - WATER $71.44 To Order
Photo Part No Description Price (each) Stock
LR140607 HOSE - COOLING SYSTEM $78.68 To Order
Photo Part No Description Price (each) Stock
LR135831 SEPARATOR - COOLANT DEGAS $96.35 To Order
Photo Part No Description Price (each) Stock
LR137831 WIRING - TRACTION BATTERY $56.39 To Order
Photo Part No Description Price (each) Stock
LR125547 VALVE - COOLANT FLOW CONTROL $109.75 To Order
Photo Part No Description Price (each) Stock
LR128178 HOSE $58.27 To Order
LR163783 HOSE $61.19 To Order
Photo Part No Description Price (each) Stock
LR135919 HOSE - DEGAS COOLING SYSTEM $66.14 To Order
View All

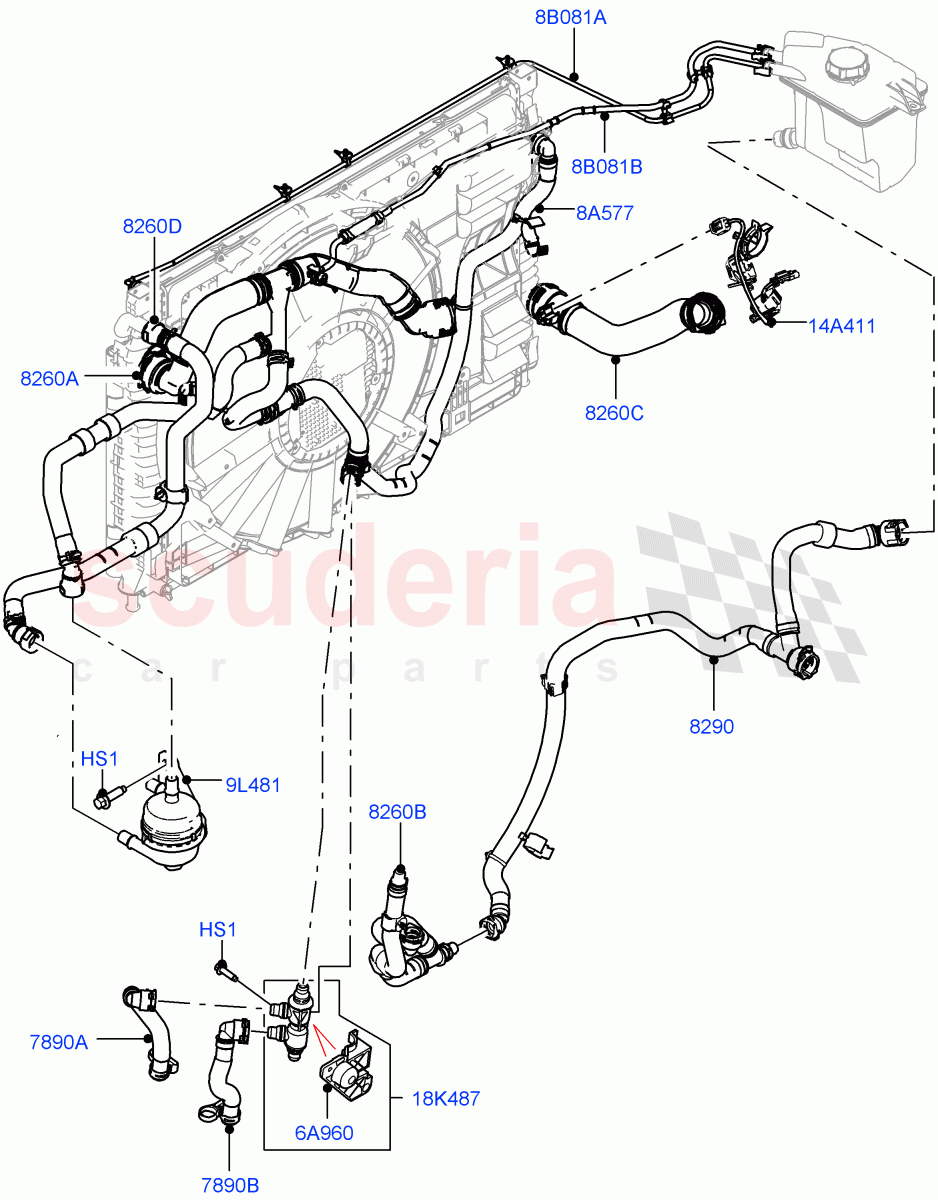

Cooling System Pipes And Hoses (Combustion Unit) (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500260
BOLT - HEX.HEAD
M8 X 25MM / From: LH000001 		$3.99 2
6A960 LR126051
BRACKET - COOLING HOSE
From: LH000001 		$22.60 1
8A577 LR140607
HOSE - COOLING SYSTEM
From Transmission Warming Valve To Radiator / From: LH000001 		$78.68 1
8B081A LR128178
HOSE
Radiator To Expansion Tank Bleed / From: LH000001 / To: NH908813 		$58.27 1
8B081A LR163783
HOSE
Radiator To Expansion Tank Bleed / From: NH908814 		$61.19 1
8B081B LR135919
HOSE - DEGAS COOLING SYSTEM
From Engine To Expansion Tank / From: LH000001 		$66.14 1
9L481 LR135831
SEPARATOR - COOLANT DEGAS
From: LH000001 		$96.35 1
14A411 LR137831
WIRING - TRACTION BATTERY
Radiator Hose / From: LH000001 		$56.39 1
18K487 LR125547
VALVE - COOLANT FLOW CONTROL
From: LH000001 		$109.75 1
7890A LR125549
HOSE - OIL COOLER
Inlet / From: LH000001 		$66.33 1
7890B LR125550
DUCT AND VALVE - AIR CLEANER
Outlet / From: LH000001 		$58.67 1
8260A LR135840
HOSE - RADIATOR
Top / From: LH000001 		$182.29 1
8260B LR125555
HOSE - COOLING SYSTEM
Heater Inlet / From: LH000001 		$79.76 1
8260C LR137641
HOSE - RADIATOR
Lower, Radiator / From: LH000001 		$73.80 1
8260D LR135308
HOSE - WATER
Lower, Separator / From: LH000001 		$71.44 1
8290 LR125552
HOSE - COOLING SYSTEM
Expansion Tank, Outlet / From: LH000001 / To: LH877544 		$101.21 1
8290 LR189302
HOSE - COOLING SYSTEM
Expansion Tank, Outlet / From: LH877545 		$141.98 1
