Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Intercooler/Air Ducts And Hoses (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.50 To Order
Photo Part No Description Price (each) Stock
LR042803 BOLT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR164819 SEAL $5.48 To Order
LR164819 SEAL $5.48 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
LR125461 BRACKET - AIR DUCT SUPPORT $21.21 To Order
Photo Part No Description Price (each) Stock
LR125624 BYPASS VALVE TO INTERCOOLER $112.64 To Order
Photo Part No Description Price (each) Stock
LR125462 HOSE - COMPRESSED AIR $129.91 To Order
LR144077 HOSE - COMPRESSED AIR $129.91 To Order
LR158198 HOSE - COMPRESSED AIR $117.67 To Order
Photo Part No Description Price (each) Stock
LR093490 ACTUATOR - SUPERCHARGER BYPASS $281.25 To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE $48.07 To Order
Photo Part No Description Price (each) Stock
LR171951 SENSOR - AIR CHARGE $48.17 To Order
View All

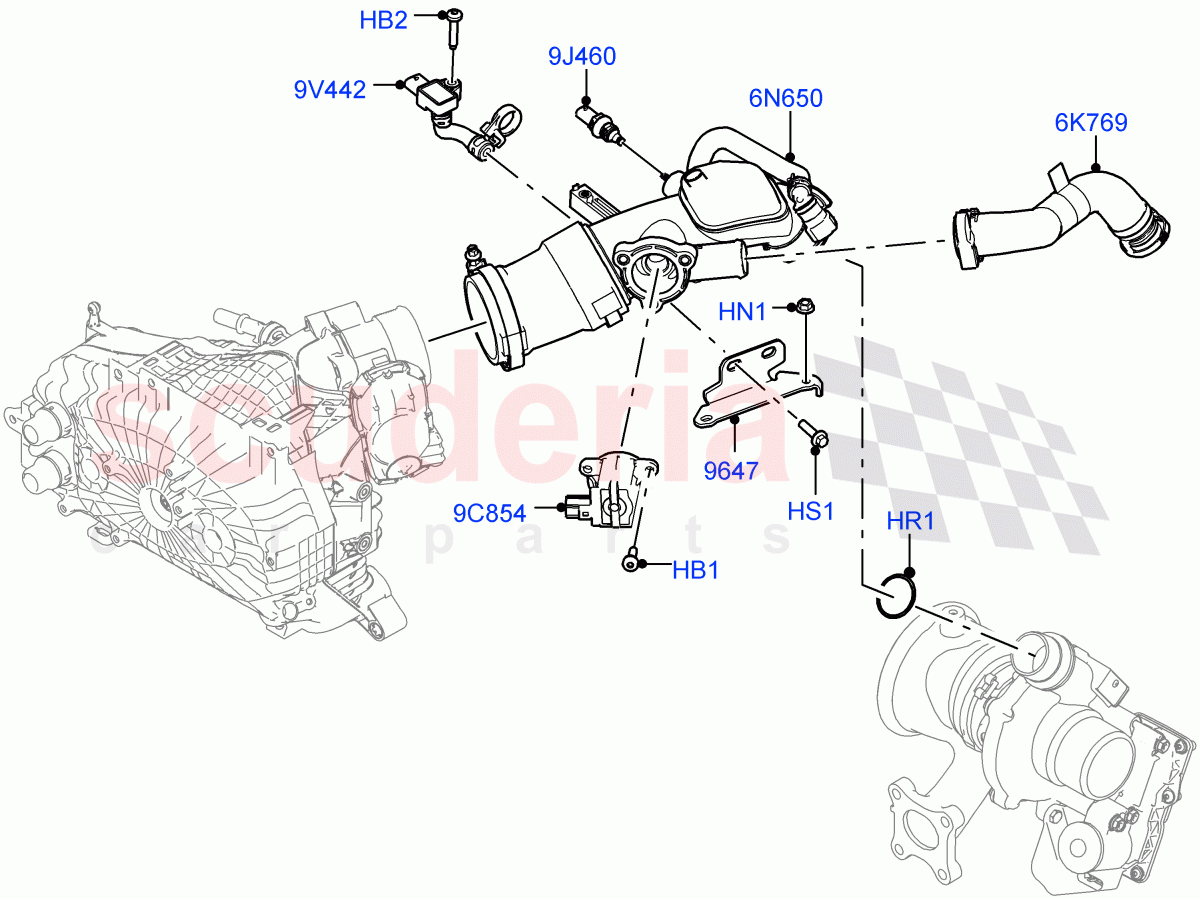

Intercooler/Air Ducts And Hoses (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033002
BOLT AND WASHER - TORX HEAD
Actuator, M6 X 20.5, Torx / From: KG446856 		$1.50 3
HB2 LR042803
BOLT
M6 x 28MM, Sensor - Air Charge Temperature, Torx / From: KG446856
IN STOCK 		$1.24 1
HN1 FN106046
NUT - HEX.
Bracket, Hexagonal Head, M6 / From: KG446856
IN STOCK 		$1.46 2
HR1 LR164819
SEAL
Turbocharger Outlet 		$5.48 1
HR1 LR164819
SEAL
Turbocharger Outlet / From: KG446857 		$5.48 1
HS1 FS106256
SCREW
Bracket, M6 x 25MM / From: KG446856 		$0.43 2
6K769 LR125624
BYPASS VALVE TO INTERCOOLER
From: KG446856 		$112.64 1
6N650 LR125462
HOSE - COMPRESSED AIR
Hose Air From Turbocharger To Inlet Manifold / From: KG446856 / To: KG999999 		$129.91 1
6N650 LR144077
HOSE - COMPRESSED AIR
Hose Air From Turbocharger To Inlet Manifold / From: LG000001 / To: MG146622 		$129.91 1
6N650 LR158198
HOSE - COMPRESSED AIR
Hose Air From Turbocharger To Inlet Manifold / From: MG146623 		$117.67 1
9C854 LR093490
ACTUATOR - SUPERCHARGER BYPASS
From: KG446856 		$281.25 1
9J460 LR075629
SENSOR - TEMPERATURE
Sensor - Air Charge Temperature / From: KG446856 		$48.07 1
9V442 LR171951
SENSOR - AIR CHARGE
1.5L AJ20P3 Petrol High / From: KG446856 		$48.17 1
9647 LR125461
BRACKET - AIR DUCT SUPPORT
Air Duct Support / From: KG446856 		$21.21 1
