Fuel Tank & Related Parts ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Fuel Tank & Related Parts ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WHK100040 COVER - FUEL TANK $567.52 To Order
WHK100050 COVER - FUEL TANK $688.15 To Order
LR013168 TANK - FUEL $2,341.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WQB100430 PUMP - FUEL $273.89 To Order
WQB100440 PUMP - FUEL $297.95 To Order
Photo Part No Description Price (each) Stock
ESR3808 RING - LOCK $72.04 To Order
Photo Part No Description Price (each) Stock
WGQ500020 GASKET - FUEL TANK COVER $25.24 To Order
Photo Part No Description Price (each) Stock
ESR3807 ADAPTOR $8.42 To Order
Photo Part No Description Price (each) Stock
WFH101790 HOSE - VENT $49.11 To Order
WFH101730 HOSE - VENT $70.67 To Order
LR016190 HOSE - CONNECTING $76.33 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WFI100070 STRAP - FUEL TANK $196.07 To Order
WFI100100 STRAP - FUEL TANK $222.55 To Order
Photo Part No Description Price (each) Stock
FS110307 SCREW $3.31 To Order
FS110307 SCREW $3.31 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.26 IN STOCK
Photo Part No Description Price (each) Stock
WGE100120 PAD - INSULATING $14.43 To Order
WGE100110 PAD - INSULATING $15.57 To Order
WFE501390 HEAT SHIELD $14.03 To Order
Photo Part No Description Price (each) Stock
WYQ100040 RIVET - PLASTIC $8.52 To Order
Photo Part No Description Price (each) Stock
WFS100530 STRAP - FUEL TANK $145.40 To Order
Photo Part No Description Price (each) Stock
WFU500030 BRACKET - FUEL TUBE SUPPORT $56.07 To Order
Photo Part No Description Price (each) Stock
FA108207 BOLT $2.71 To Order
FA108207 BOLT $2.71 To Order
Photo Part No Description Price (each) Stock
FA105201 SCREW $1.11 To Order
Photo Part No Description Price (each) Stock
WYC100570 CLIP - HOSE $1.79 To Order
Photo Part No Description Price (each) Stock
PYC102070 CLIP - HOSE $9.58 To Order
Photo Part No Description Price (each) Stock
WYH100470 NUT - HEX. $4.03 To Order
Photo Part No Description Price (each) Stock
MXC5714 INSULATOR - SPACER TYPE $5.85 To Order
MXC5714 INSULATOR - SPACER TYPE $5.85 To Order
Photo Part No Description Price (each) Stock
ADU8981 STRAP - CABLE $1.56 To Order
Photo Part No Description Price (each) Stock
WYC500150 CLIP - HOSE $1.39 To Order
Photo Part No Description Price (each) Stock
MXC1848 CLIP $3.60 To Order
View All

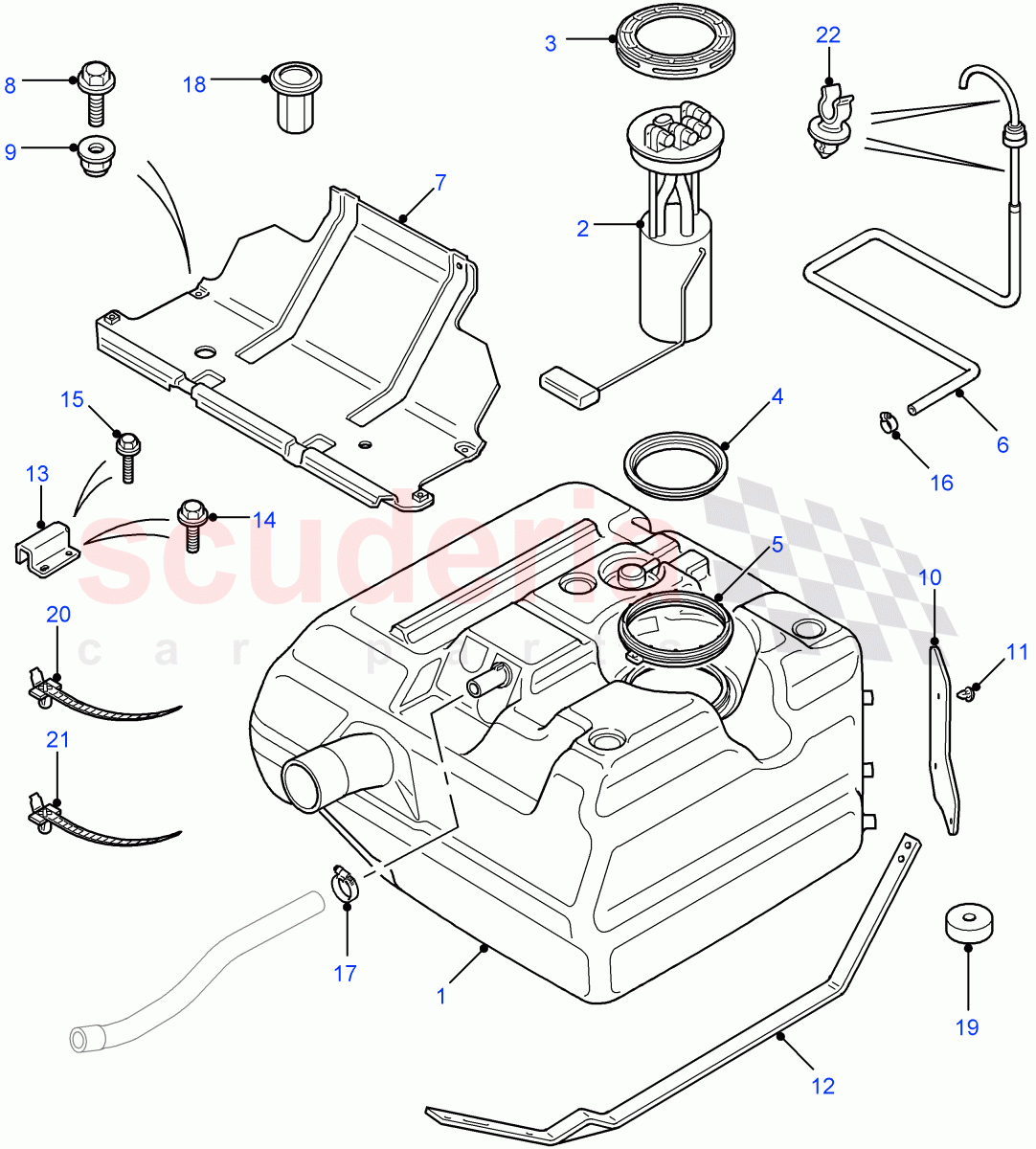

Fuel Tank & Related Parts ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 WHK100040
COVER - FUEL TANK
90" Wheelbase / To: 8A760581 		$567.52 1
1 WHK100050
COVER - FUEL TANK
110" Wheelbase / To: 8A760303 		$688.15 1
1 LR013168
TANK - FUEL
90" Wheelbase / From: 8A760582 		$2,341.16 1
1 LR013167
TANK - FUEL
110" Wheelbase / From: 8A760304 		$2,189.68 1
2 WQB100430
PUMP - FUEL
90" Wheelbase 		$273.89 1
2 WQB100440
PUMP - FUEL
110" Wheelbase 		$297.95 1
3 ESR3808
RING - LOCK 		$72.04 1
4 WGQ500020
GASKET - FUEL TANK COVER 		$25.24 1
5 ESR3807
ADAPTOR
adaptor 		$8.42 1
6 WFH101790
HOSE - VENT
90" Wheelbase / To: 8A760581 		$49.11 1
6 WFH101730
HOSE - VENT
110" Wheelbase / To: 8A760303 		$70.67 1
6 LR016190
HOSE - CONNECTING
90" Wheelbase / From: 8A760582 		$76.33 1
6 LR016191
HOSE - CONNECTING
110" Wheelbase / From: 8A760304 		$76.33 1
7 WFI100070
STRAP - FUEL TANK
90" Wheelbase 		$196.07 1
7 WFI100100
STRAP - FUEL TANK
110" Wheelbase 		$222.55 1
8 FS110307
SCREW
90" Wheelbase / M10 x 30 		$3.31 4
8 FS110307
SCREW
110" Wheelbase / M10 x 30 		$3.31 2
9 FY110056
NUT
IN STOCK 		$4.26 2
10 WGE100120
PAD - INSULATING
90" Wheelbase / To: 7A753761 		$14.43 1
10 WGE100110
PAD - INSULATING
110" Wheelbase 		$15.57 1
10 WFE501390
HEAT SHIELD
90" Wheelbase / From: 7A753762 		$14.03 1
11 WYQ100040
RIVET - PLASTIC 		$8.52 3
12 WFS100530
STRAP - FUEL TANK
110" Wheelbase 		$145.40 1
13 WFU500030
BRACKET - FUEL TUBE SUPPORT 		$56.07 1
14 FA108207
BOLT
90" Wheelbase / Flanged Head, M8 X 20MM 		$2.71 2
14 FA108207
BOLT
110" Wheelbase / Flanged Head, M8 X 20MM 		$2.71 4
15 FA105201
SCREW
M5 x 20 		$1.11 1
16 WYC100570
CLIP - HOSE 		$1.79 1
17 PYC102070
CLIP - HOSE
50-70MM 		$9.58 1
18 WYH100470
NUT - HEX.
110" Wheelbase / Hexagonal, M10 		$4.03 2
19 MXC5714
INSULATOR - SPACER TYPE
90" Wheelbase 		$5.85 2
19 MXC5714
INSULATOR - SPACER TYPE
110" Wheelbase 		$5.85 4
20 ADU8981
STRAP - CABLE 		$1.56 1
21 WYC500150
CLIP - HOSE 		$1.39 1
22 MXC1848
CLIP 		$3.60 2
