Exhaust System (130" Wheelbase) ((V) Fromca000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Exhaust System (130" Wheelbase) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR030001 PIPE - EXHAUST $3,491.69 To Order
LR030002 PIPE - EXHAUST $2,932.78 To Order
LR041312 PIPE - EXHAUST $3,491.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WCE500500 MUFFLER - CENTER $418.25 To Order
LR040911 MUFFLER - CENTER $402.17 To Order
LR066958 MUFFLER - CENTRE $555.10 To Order
Photo Part No Description Price (each) Stock
WCG103020 PIPE - EXHAUST - REAR $315.97 To Order
LR066422 MUFFLER - REAR $322.21 To Order
Photo Part No Description Price (each) Stock
ESR3172 BRACKET - EXHAUST PIPE MOUNTING $35.49 IN STOCK
Photo Part No Description Price (each) Stock
ESR3172 BRACKET - EXHAUST PIPE MOUNTING $35.49 IN STOCK
Photo Part No Description Price (each) Stock
ESR3172 BRACKET - EXHAUST PIPE MOUNTING $35.49 IN STOCK
Photo Part No Description Price (each) Stock
NTC7348 BRACKET - EXHAUST PIPE MOUNTING $11.28 To Order
Photo Part No Description Price (each) Stock
ESR3294 BRACKET - EXHAUST PIPE MOUNTING $44.07 To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.54 IN STOCK
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.54 IN STOCK
Photo Part No Description Price (each) Stock
WJ600056 WASHER $3.73 To Order
Photo Part No Description Price (each) Stock
WJ600056 WASHER $3.73 To Order
Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED $1.84 IN STOCK
Photo Part No Description Price (each) Stock
LR030008 SHIELD - EXHAUST MANIFOLD HEAT $42.78 To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $7.95 IN STOCK
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $7.95 IN STOCK
Photo Part No Description Price (each) Stock
LR031502 SHIELD - EXHAUST MANIFOLD HEAT $28.49 To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.28 IN STOCK
Photo Part No Description Price (each) Stock
FB108086 BOLT $1.96 IN STOCK
Photo Part No Description Price (each) Stock
LR032345 CLAMP - EXHAUST $33.65 To Order
Photo Part No Description Price (each) Stock
LR030030 SENSOR - EXHAUST GAS PRESSURE $199.16 To Order
Photo Part No Description Price (each) Stock
LR030003 SENSOR - EXHAUST GAS - TEMPERATURE $158.45 To Order
Photo Part No Description Price (each) Stock
LR030004 SENSOR - EXHAUST GAS - TEMPERATURE $100.26 To Order
Photo Part No Description Price (each) Stock
LR030005 SENSOR - EXHAUST GAS - TEMPERATURE $154.06 To Order
Photo Part No Description Price (each) Stock
LR030006 SENSOR - HEGO $192.11 To Order
Photo Part No Description Price (each) Stock
LR032878 CLIP - CONTROL CABLE $2.06 To Order
Photo Part No Description Price (each) Stock
LR000954 GASKET - EXHAUST PIPE $19.06 To Order
Photo Part No Description Price (each) Stock
LR030009 EXHAUST PIPE MOUNTING $56.19 To Order
View All

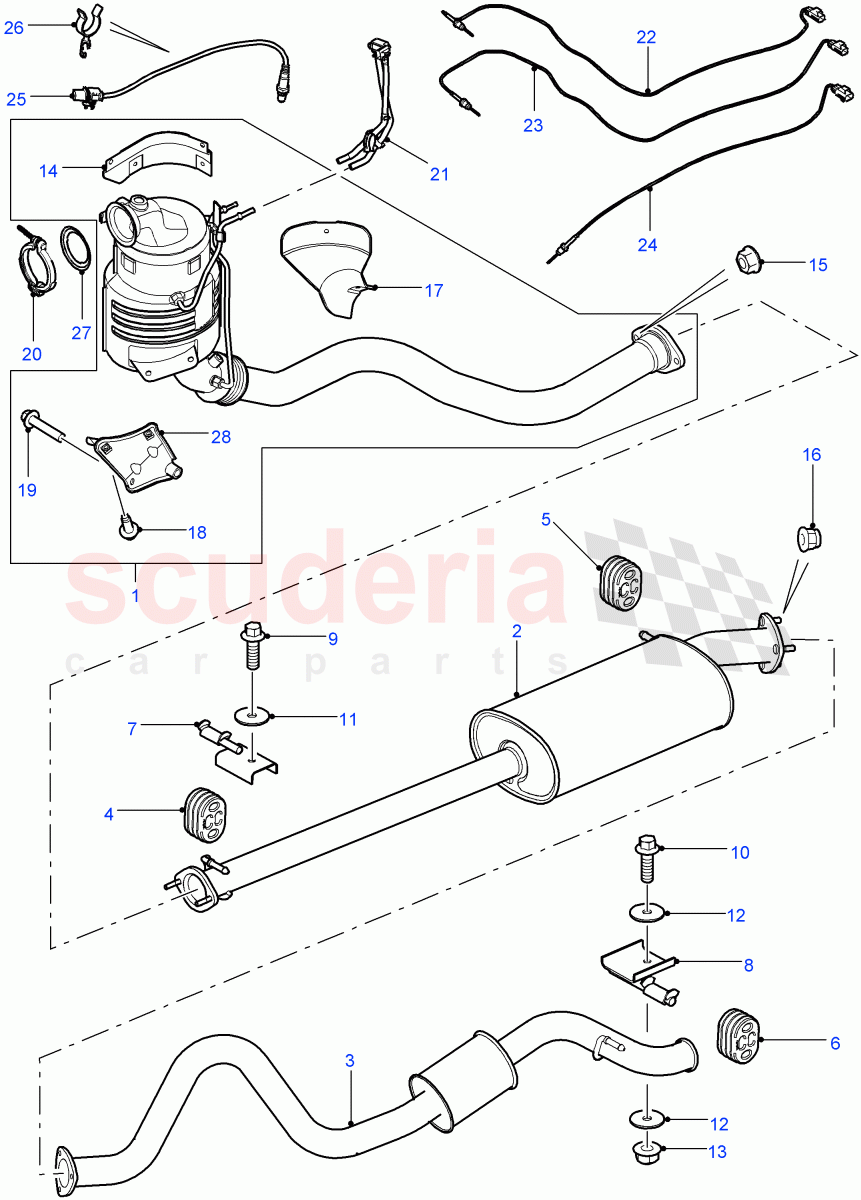

Exhaust System (130" Wheelbase) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR030001
PIPE - EXHAUST
Stage V Plus DPF / To: CA444443 		$3,491.69 1
1 LR030002
PIPE - EXHAUST
Euro Stage 4 Emissions / To: CA444443 		$2,932.78 1
1 LR041312
PIPE - EXHAUST
Stage V Plus DPF / From: CA444444 		$3,491.69 1
1 LR041316
PIPE - EXHAUST
Euro Stage 4 Emissions / From: CA444444 		$2,932.78 1
2 WCE500500
MUFFLER - CENTER
To: CA422221 		$418.25 1
2 LR040911
MUFFLER - CENTER
From: CA422222 / To: EA455522 		$402.17 1
2 LR066958
MUFFLER - CENTRE
From: EA455523 		$555.10 1
3 WCG103020
PIPE - EXHAUST - REAR
To: EA449961 		$315.97 1
3 LR066422
MUFFLER - REAR
From: EA449962 		$322.21 1
4 ESR3172
BRACKET - EXHAUST PIPE MOUNTING
IN STOCK 		$35.49 1
5 ESR3172
BRACKET - EXHAUST PIPE MOUNTING
IN STOCK 		$35.49 2
6 ESR3172
BRACKET - EXHAUST PIPE MOUNTING
IN STOCK 		$35.49 2
7 NTC7348
BRACKET - EXHAUST PIPE MOUNTING 		$11.28 1
8 ESR3294
BRACKET - EXHAUST PIPE MOUNTING 		$44.07 1
9 FS108256
BOLT
M8 x 25
IN STOCK 		$3.54 1
10 FS108256
BOLT
M8 x 25
IN STOCK 		$3.54 1
11 WJ600056
WASHER 		$3.73 1
12 WJ600056
WASHER 		$3.73 2
13 LR019197
NUT - FLANGED
M8
IN STOCK 		$1.84 1
14 LR030008
SHIELD - EXHAUST MANIFOLD HEAT
Upper 		$42.78 1
15 LR025680
M10 FLANGED HEX NUT
M10
IN STOCK 		$7.95 2
16 LR025680
M10 FLANGED HEX NUT
M10
IN STOCK 		$7.95 3
17 LR031502
SHIELD - EXHAUST MANIFOLD HEAT
Lower 		$28.49 1
18 FS108206
BOLT
M8 X 20MM
IN STOCK 		$2.28 2
19 FB108086
BOLT
M8 x 40
IN STOCK 		$1.96 2
20 LR032345
CLAMP - EXHAUST 		$33.65 1
21 LR030030
SENSOR - EXHAUST GAS PRESSURE
Parts Subject To US Export Controls (EAR99). Re-export To Restricted Countries/Persons Prohibited. 		$199.16 1
22 LR030003
SENSOR - EXHAUST GAS - TEMPERATURE
Stage V Plus DPF / Orange, Pre Catalyst 		$158.45 1
23 LR030004
SENSOR - EXHAUST GAS - TEMPERATURE
Stage V Plus DPF / Green, post catalyst 		$100.26 1
24 LR030005
SENSOR - EXHAUST GAS - TEMPERATURE
Stage V Plus DPF / Black 		$154.06 1
25 LR030006
SENSOR - HEGO
Stage V Plus DPF / Oxygen Sensor 		$192.11 1
26 LR032878
CLIP - CONTROL CABLE
Oxygen Sensor 		$2.06 2
27 LR000954
GASKET - EXHAUST PIPE 		$19.06 1
28 LR030009
EXHAUST PIPE MOUNTING 		$56.19 1
