Towing Equip-Drop Plate W/Tow Ball (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130"...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Towing Equip-Drop Plate W/Tow Ball (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130"...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006312 BAR - TOWING $380.52 To Order
VPLDT0086 KIT - TOW BRACKET $369.08 To Order
Photo Part No Description Price (each) Stock
RTC8891AA BAR - TOWING $61.90 To Order
Photo Part No Description Price (each) Stock
FB116126 BOLT $6.52 To Order
Photo Part No Description Price (each) Stock
WC116106 WASHER $2.04 To Order
Photo Part No Description Price (each) Stock
NH116046 NUT - HEX. $3.01 To Order
Photo Part No Description Price (each) Stock
LR005920 TOW BAR ELECTRICS $133.12 To Order
Photo Part No Description Price (each) Stock
SE105401 SCREW $1.61 To Order
Photo Part No Description Price (each) Stock
NY105041L NUT - HEX. $0.99 To Order
Photo Part No Description Price (each) Stock
ANR3635 COVER - TOWING HOOK $12.25 To Order
Photo Part No Description Price (each) Stock
KYG500440 BOLT $1.55 To Order
Photo Part No Description Price (each) Stock
FY110046 NUT - HEX. $2.79 To Order
Photo Part No Description Price (each) Stock
KYG500450 BOLT $3.73 To Order
Photo Part No Description Price (each) Stock
KNK500120 PLATE $295.48 To Order
LR025434 PLATE $279.36 To Order
LR042720 PLATE $324.74 To Order
Photo Part No Description Price (each) Stock
KNL100010 REINFORCEMENT - TOWING HOOK $17.03 To Order
LR042765 REINFORCEMENT - TOWING HOOK $39.83 To Order
Photo Part No Description Price (each) Stock
FY110046 NUT - HEX. $2.79 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.24 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.24 To Order
Photo Part No Description Price (each) Stock
FB116126 BOLT $6.52 To Order
View All

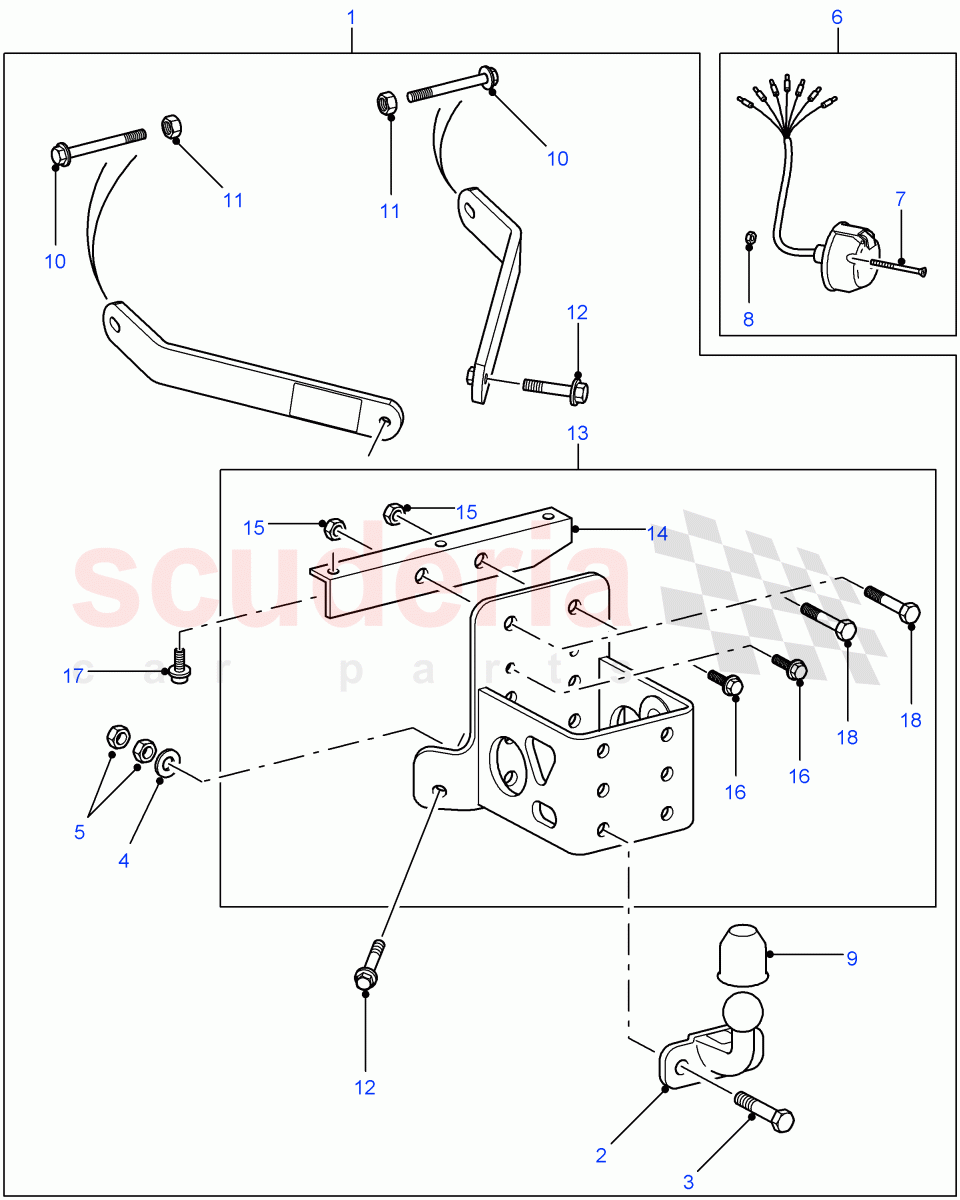

Towing Equip-Drop Plate W/Tow Ball (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR006312
BAR - TOWING
(-)"AUS" / To: DA429295 		$380.52 1
1 VPLDT0086
KIT - TOW BRACKET
(-)"AUS" / From: DA429296 		$369.08 1
2 RTC8891AA
BAR - TOWING
(-)"AUS" / 50MM 		$61.90 1
3 FB116126
BOLT
dacromat, M16 x 60MM 		$6.52 2
4 WC116106
WASHER 		$2.04 2
5 NH116046
NUT - HEX.
Hexagonal Head, M16 		$3.01 4
6 LR005920
TOW BAR ELECTRICS
n type 		$133.12 1
7 SE105401
SCREW
M5 x 40, Pan Head 		$1.61 3
8 NY105041L
NUT - HEX.
M5 		$0.99 3
9 ANR3635
COVER - TOWING HOOK
50MM 		$12.25 1
10 KYG500440
BOLT
M10 x 115 		$1.55 2
11 FY110046
NUT - HEX.
M10 		$2.79 2
12 KYG500450
BOLT
Flanged Head, M12 x 40, top 		$3.73 2
13 KNK500120
PLATE
To: BA820107 		$295.48 1
13 LR025434
PLATE
From: BA820108 / To: CA555554 		$279.36 1
13 LR042720
PLATE
From: CA555555 		$324.74 1
14 KNL100010
REINFORCEMENT - TOWING HOOK
To: CA555554 		$17.03 1
14 LR042765
REINFORCEMENT - TOWING HOOK
From: CA555555 		$39.83 1
15 FY110046
NUT - HEX.
M10 		$2.79 2
16 FS110306
BOLT - HEX.HEAD
Flanged Head, M10 x 30 		$2.24 2
17 FS110306
BOLT - HEX.HEAD
Flanged Head, M10 x 30 		$2.24 3
18 FB116126
BOLT
M16 x 60MM 		$6.52 2
