Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Electric Engine...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR133641 BOLT $0.95 To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.05 IN STOCK
Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING $2.85 To Order
Photo Part No Description Price (each) Stock
LR045217 SCREW $1.44 To Order
Photo Part No Description Price (each) Stock
LR131510 COVER - CONVERTER HOUSING $67.02 To Order
Photo Part No Description Price (each) Stock
LR131512 TRAY - BATTERY $149.99 To Order
LR144076 TRAY - BATTERY $138.87 To Order
LR162170 TRAY - BATTERY $149.99 To Order
Photo Part No Description Price (each) Stock
LR136751 CABLE $242.42 To Order
LR149124 CABLE $417.86 To Order
Photo Part No Description Price (each) Stock
LR129650 HOSE - VENT $58.97 To Order
Photo Part No Description Price (each) Stock
LR132987 COVER $5.37 To Order
Photo Part No Description Price (each) Stock
LR137929 LITHIUM ION BATTERY $1,231.19 To Order
Photo Part No Description Price (each) Stock
LR131043 CONVERTER - VOLTAGE $824.45 To Order
Photo Part No Description Price (each) Stock
LR118777 COVER - PWR SUPPLY DISTRIBUTION BOX $15.25 To Order
Photo Part No Description Price (each) Stock
LR125234 DUCT - AIR $78.81 To Order
Photo Part No Description Price (each) Stock
LR131520 DUCT - COOLING $83.86 IN STOCK
Photo Part No Description Price (each) Stock
LR131519 DUCT - COOLING $95.66 IN STOCK
Photo Part No Description Price (each) Stock
LR129917 DUCT - AIR VENT $80.90 To Order
Photo Part No Description Price (each) Stock
LR129913 DUCT - AIR VENT $80.14 IN STOCK
Photo Part No Description Price (each) Stock
LR129915 DUCT - AIR VENT $88.30 To Order
LR129915 DUCT - AIR VENT $88.30 To Order
LR157976 DUCT - AIR VENT $72.87 To Order
Photo Part No Description Price (each) Stock
LR147305 DUCT - AIR VENT $73.12 To Order
Photo Part No Description Price (each) Stock
LR147307 DUCT - AIR VENT $77.16 To Order
LR155000 DUCT - AIR VENT $116.01 To Order
Photo Part No Description Price (each) Stock
LR131521 TRAY - BATTERY $103.03 To Order
Photo Part No Description Price (each) Stock
LR131514 CLAMP - BATTERY $29.94 To Order
Photo Part No Description Price (each) Stock
LR131515 CLAMP - BATTERY $29.94 To Order
Photo Part No Description Price (each) Stock
LR131516 CLAMP - BATTERY $58.97 To Order
Photo Part No Description Price (each) Stock
LR131944 FAN - AUXILIARY COOLING $156.70 To Order
Photo Part No Description Price (each) Stock
LR131943 FAN - AUXILIARY COOLING $156.70 To Order
View All

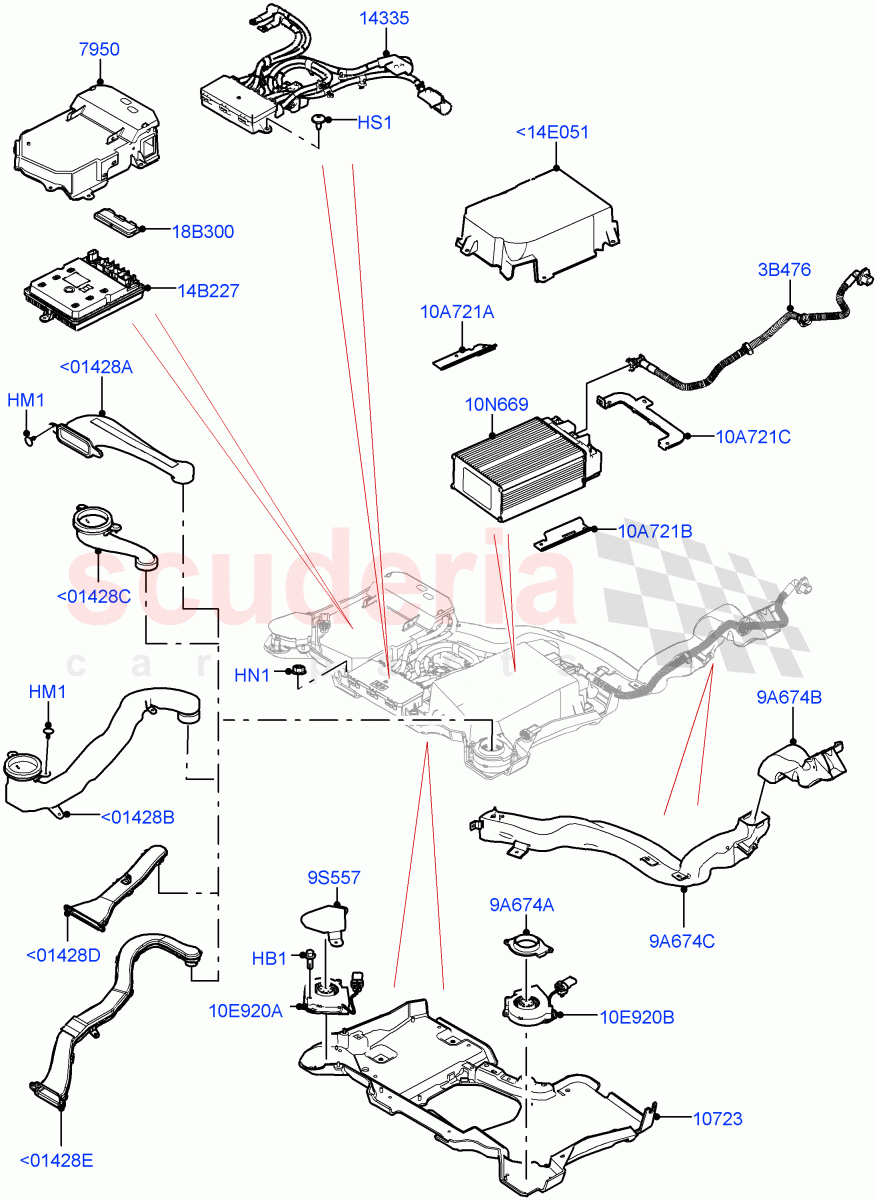

Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Electric Engine Battery-MHEV) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<14E051 LR131521
TRAY - BATTERY 		$103.03 1
<01428A LR129917
DUCT - AIR VENT
3.0L AJ20P6 Petrol High, Standard Wheelbase, With 3rd Row Double Seat 		$80.90 1
<01428B LR129913
DUCT - AIR VENT
Less 3rd Row Rear Seat, Standard Wheelbase
IN STOCK 		$80.14 1
<01428C LR129915
DUCT - AIR VENT
Short Wheelbase / To: L2999999 		$88.30 1
<01428C LR129915
DUCT - AIR VENT
Short Wheelbase, Version - X / From: M2000001 / To: M2060864 		$88.30 1
<01428C LR157976
DUCT - AIR VENT
Short Wheelbase, Version - X-Dynamic / From: M2060865 		$72.87 1
<01428D LR147305
DUCT - AIR VENT
Short Wheelbase, Version - Commercial / From: M2000001 		$73.12 1
<01428E LR147307
DUCT - AIR VENT
Standard Wheelbase, Version - Commercial / From: M2000001 / To: M2046457 		$77.16 1
<01428E LR155000
DUCT - AIR VENT
Standard Wheelbase, Version - Commercial / From: M2046458 		$116.01 1
HB1 LR133641
BOLT
M6 X 45MM 		$0.95 2
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin
IN STOCK 		$1.05 3
HN1 RYH500570
NUT - ADJUSTING
M6 		$2.85 3
HS1 LR045217
SCREW
M5 X 12MM 		$1.44 2
3B476 LR129650
HOSE - VENT
Standard Wheelbase 		$58.97 1
9A674A LR125234
DUCT - AIR
Connection Cabin Duct 		$78.81 1
9A674B LR131520
DUCT - COOLING
Converter Cooling, Upper Part
IN STOCK 		$83.86 1
9A674C LR131519
DUCT - COOLING
Converter Cooling, Lower Part
IN STOCK 		$95.66 1
9S557 LR132987
COVER 		$5.37 1
10A721A LR131514
CLAMP - BATTERY
Right Side 		$29.94 1
10A721B LR131515
CLAMP - BATTERY
Left Side 		$29.94 1
10A721C LR131516
CLAMP - BATTERY
Rear Side 		$58.97 1
10E920A LR131944
FAN - AUXILIARY COOLING
Converter Cooling 		$156.70 1
10E920B LR131943
FAN - AUXILIARY COOLING
EV Battery Cooling 		$156.70 1
10N669 LR137929
LITHIUM ION BATTERY
Traction Battery 		$1,231.19 1
14B227 LR131043
CONVERTER - VOLTAGE 		$824.45 1
18B300 LR118777
COVER - PWR SUPPLY DISTRIBUTION BOX
Terminal Cover 		$15.25 1
7950 LR131510
COVER - CONVERTER HOUSING 		$67.02 1
10723 LR131512
TRAY - BATTERY
Lower / To: L2011568 		$149.99 1
10723 LR144076
TRAY - BATTERY
Lower / From: L2011569 / To: N2083618 		$138.87 1
10723 LR162170
TRAY - BATTERY
Lower / From: N2083619 		$149.99 1
14335 LR136751
CABLE
3.0L AJ20P6 Petrol High / To: L2999999 		$242.42 1
14335 LR149124
CABLE
Short Wheelbase / From: M2000001 		$417.86 1
