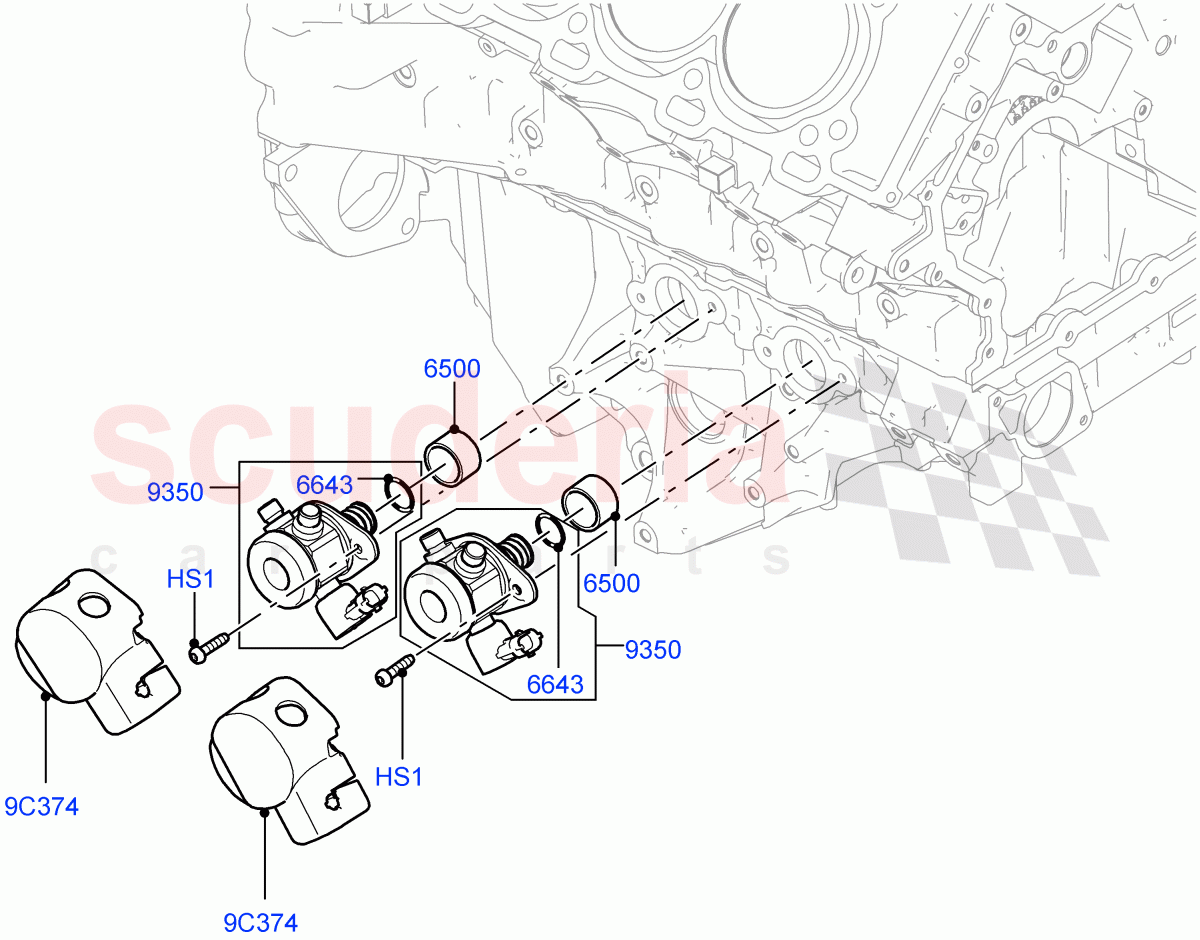

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038311	TAPPET	$67.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010861	O-RING	$11.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR081595	PUMP - FUEL	$480.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181776	ACOUSTIC COVER - FUEL PUMP	$27.67	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW	LR011270 SCREW Fuel Pump, M6 x 25MM, Torx / From: M2000001	$1.24	4
9C374	LR181776	ACOUSTIC COVER - FUEL PUMP	LR181776 ACOUSTIC COVER - FUEL PUMP From: M2000001	$27.67	2
6500	LR038311	TAPPET	LR038311 TAPPET Fuel Pump / From: M2000001	$67.91	2
6643	LR010861	O-RING IN STOCK	LR010861 O-RING 31MM X 2MM, Fuel Pump / From: M2000001 IN STOCK	$11.66	2
9350	LR081595	PUMP - FUEL	LR081595 PUMP - FUEL From: M2000001	$480.41	2
