Name: Rear Exhaust System (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA, Short Wheelbase) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA, Short Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Rear Exhaust System (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA, Short Wheelbase) ((V)...

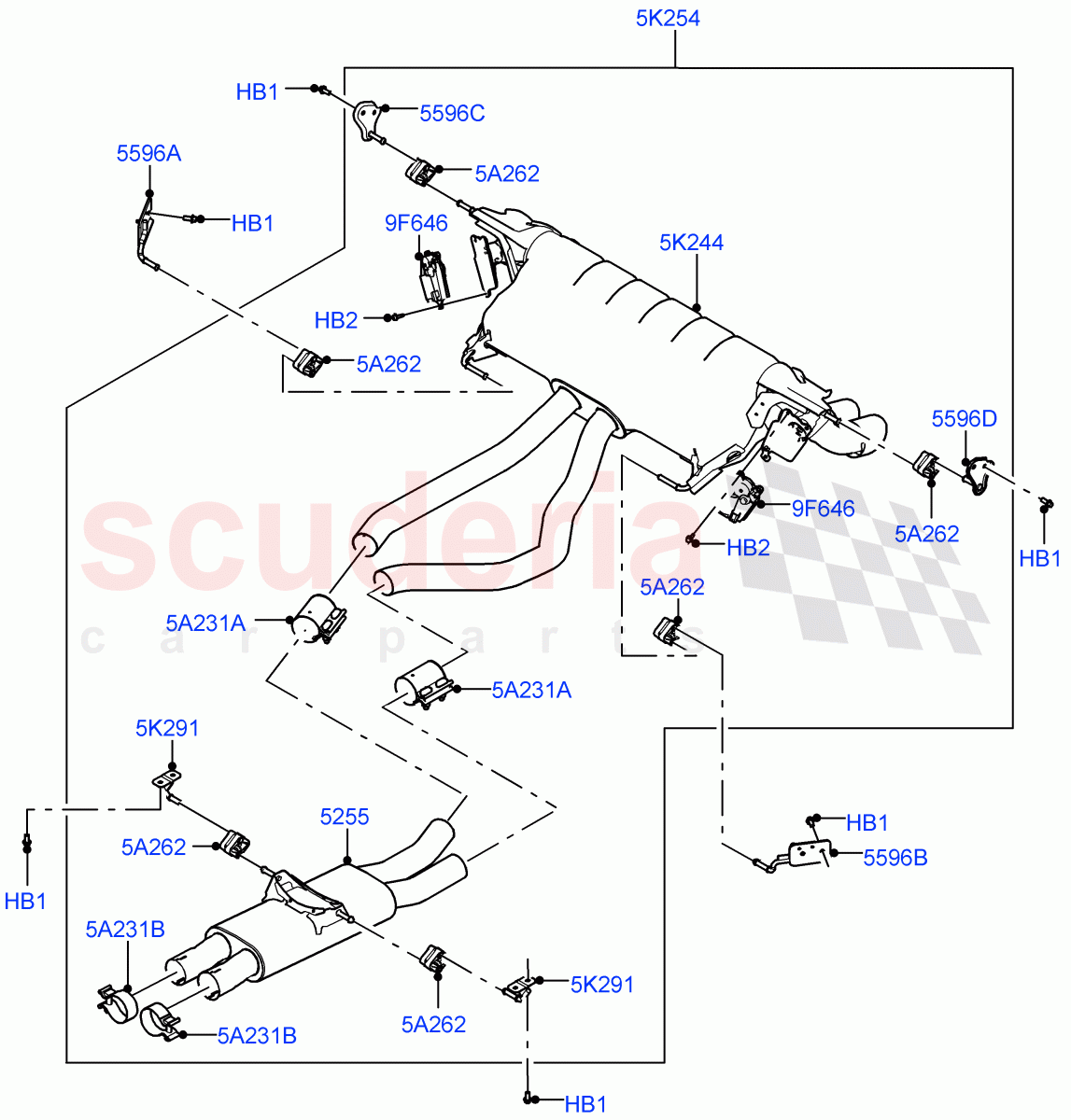

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR141903	BOLT	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163657	PIPE - EXHAUST	$1,261.37	To Order
	LR163667	PIPE - EXHAUST	$3,430.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154613	BRACKET - EXHAUST PIPE MOUNTING	$51.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154614	BRACKET - EXHAUST PIPE MOUNTING	$48.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137013	BRACKET - EXHAUST PIPE MOUNTING	$33.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137014	BRACKET - EXHAUST PIPE MOUNTING	$33.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163673	MUFFLER AND PIPE - REAR	$3,313.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158236	MUFFLER - REAR	$7,195.41	To Order
	LR158240	MUFFLER - REAR	$7,195.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154247	BRACKET - REAR MUFFLER	$55.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141781	ACTUATOR - ELECTRONIC EXHAUST VALVE	$184.06	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500040	CLAMP - EXHAUST	$87.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036438	EXHAUST	$36.71	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001 IN STOCK	$2.29	12
HB2	LR141903	BOLT	LR141903 BOLT M6 X 20MM / From: M2000001	$2.33	3
5A231A	WCL500040	CLAMP - EXHAUST	WCL500040 CLAMP - EXHAUST 60MM, Centre / From: M2000001	$87.52	2
5A231B	LR036438	EXHAUST	LR036438 EXHAUST 60MM, Front / From: M2000001	$36.71	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: M2000001	$24.15	6
5K244	LR163673	MUFFLER AND PIPE - REAR	LR163673 MUFFLER AND PIPE - REAR From: M2000001	$3,313.82	1
5K254	LR158236	MUFFLER - REAR	LR158236 MUFFLER - REAR EU6D - Final (Petrol) Emission / Complete Assembly / From: M2000001	$7,195.41	1
5K254	LR158240	MUFFLER - REAR	LR158240 MUFFLER - REAR Stage V European Emissions / Complete Assembly / From: M2000001	$7,195.41	1
5K291	LR154247	BRACKET - REAR MUFFLER	LR154247 BRACKET - REAR MUFFLER Front, RH/LH / From: M2000001	$55.10	2
9F646	LR141781	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR141781 ACTUATOR - ELECTRONIC EXHAUST VALVE From: M2000001	$184.06	1
5255	LR163657	PIPE - EXHAUST	LR163657 PIPE - EXHAUST Beijing 6 Petrol Emission / From: M2000001	$1,261.37	1
5255	LR163667	PIPE - EXHAUST	LR163667 PIPE - EXHAUST Stage V European Emissions / From: M2000001	$3,430.09	1
5596A	LR154613	BRACKET - EXHAUST PIPE MOUNTING	LR154613 BRACKET - EXHAUST PIPE MOUNTING RH, Centre / From: M2000001	$51.43	1
5596B	LR154614	BRACKET - EXHAUST PIPE MOUNTING	LR154614 BRACKET - EXHAUST PIPE MOUNTING LH, Centre / From: M2000001	$48.99	1
5596C	LR137013	BRACKET - EXHAUST PIPE MOUNTING	LR137013 BRACKET - EXHAUST PIPE MOUNTING RH, Rear / From: M2000001	$33.67	1
5596D	LR137014	BRACKET - EXHAUST PIPE MOUNTING	LR137014 BRACKET - EXHAUST PIPE MOUNTING LH, Rear / From: M2000001	$33.67	1

Rear Exhaust System (Nitra Plant Build) (5.0 Petrol Aj133 Dohc Cda, Short Wheelbase) ((V)...
