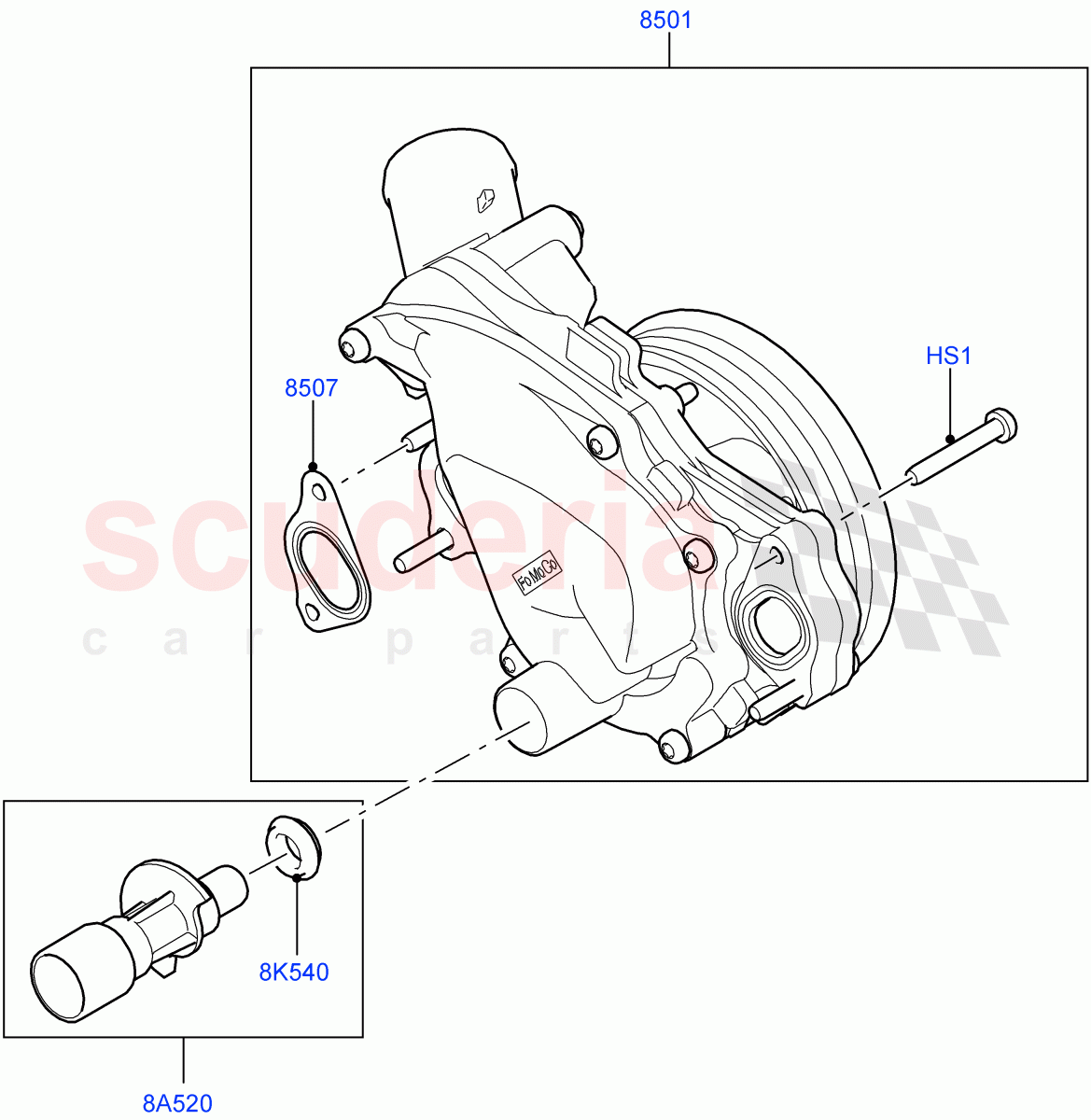

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097165	PUMP - WATER	$246.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049370	GASKET - WATER PUMP	$25.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028136	TUBE - OIL COOLER	$28.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR030593	SEAL - OIL COOLER OUTLET WATER PUMP	$8.15	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx / From: M2000001	$1.39	1
8A520	LR028136	TUBE - OIL COOLER IN STOCK	LR028136 TUBE - OIL COOLER Oil Cooler Hose / From: M2000001 IN STOCK	$28.61	1
8K540	LR030593	SEAL - OIL COOLER OUTLET WATER PUMP IN STOCK	LR030593 SEAL - OIL COOLER OUTLET WATER PUMP Oil Cooler Outlet Pipe / From: M2000001 IN STOCK	$8.15	1
8501	LR097165	PUMP - WATER	LR097165 PUMP - WATER From: M2000001	$246.57	1
8507	LR049370	GASKET - WATER PUMP	LR049370 GASKET - WATER PUMP From: M2000001	$25.89	2
