Instrument Panel (Lower, External Components)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Instrument Panel (Lower, External Components)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR132223 BOLT $6.21 IN STOCK
Photo Part No Description Price (each) Stock
LR027995 NUT $1.01 IN STOCK
Photo Part No Description Price (each) Stock
LR006214 NUT $1.12 IN STOCK
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD $2.59 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR132414 FINISHER - INSTRUMENT PANEL CENTRE $88.63 To Order
LR132415 FINISHER - INSTRUMENT PANEL CENTRE $99.60 To Order
Photo Part No Description Price (each) Stock
LR132250 MOULDING - INSTRUMENT PANEL $41.36 To Order
LR132251 MOULDING - INSTRUMENT PANEL $47.45 To Order
LR164016 MOULDING - INSTRUMENT PANEL $47.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132148 BRACKET - SUPPORT $65.69 To Order
LR132402 BRACKET - SUPPORT $65.69 To Order
Photo Part No Description Price (each) Stock
LR132207 PANEL - INSTRUMENT PANEL SIDE $289.30 To Order
LR132208 PANEL - INSTRUMENT PANEL SIDE $289.30 To Order
LR132209 PANEL - INSTRUMENT PANEL SIDE $257.42 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132354 PANEL - INSTRUMENT PANEL SIDE $138.09 To Order
LR132355 PANEL - INSTRUMENT PANEL SIDE $138.09 To Order
LR146348 PANEL - INSTRUMENT PANEL SIDE $138.09 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132356 COVER - STEERING COLUMN OPENING $146.78 To Order
LR132357 COVER - STEERING COLUMN OPENING $146.78 To Order
LR132358 COVER - STEERING COLUMN OPENING $146.78 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081310 PLATE - BLANKING $10.88 To Order
LR143280 PLATE - BLANKING $22.79 To Order
Photo Part No Description Price (each) Stock
LR132438 BEZEL - INSTRUMENT PANEL $82.75 To Order
LR142193 Bezel - Instrument Panel $81.93 To Order
LR142259 BEZEL - INSTRUMENT PANEL $65.53 To Order
Photo Part No Description Price (each) Stock
LR132453 BEZEL - INSTRUMENT PANEL $89.76 To Order
View All

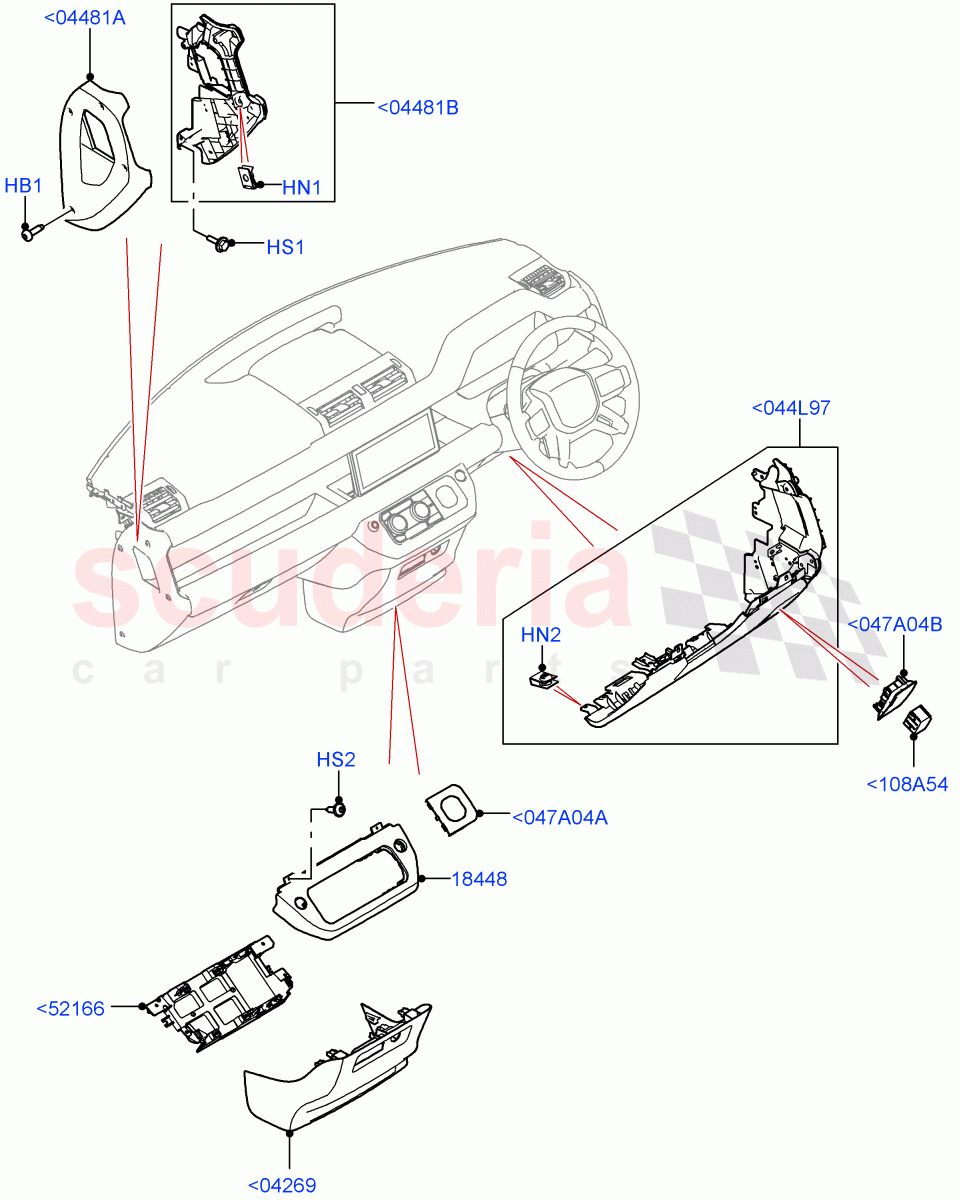

Instrument Panel (Lower, External Components) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044L97 LR132356
COVER - STEERING COLUMN OPENING
Interior Environment Colour - Lunar, LHD, Less Head Impact Crash Criteria 		$146.78 1
<044L97 LR132357
COVER - STEERING COLUMN OPENING
Internal Environment Colour - Ebony, LHD, Less Head Impact Crash Criteria 		$146.78 1
<044L97 LR132358
COVER - STEERING COLUMN OPENING
Interior Environment Colour - Lunar, RHD 		$146.78 1
<044L97 LR132359
COVER - STEERING COLUMN OPENING
Internal Environment Colour - Ebony, RHD 		$146.78 1
<044L97 LR132360
COVER - STEERING COLUMN OPENING
Interior Environment Colour - Lunar, LHD, With Head Impact Crash Criteria 		$146.78 1
<044L97 LR132361
COVER - STEERING COLUMN OPENING
Internal Environment Colour - Ebony, LHD, With Head Impact Crash Criteria 		$146.78 1
<047A04A LR132438
BEZEL - INSTRUMENT PANEL
Centre Stack Plinth / To: L2010019 		$82.75 1
<047A04A LR142193
Bezel - Instrument Panel
Centre Stack Plinth / From: L2010020 / To: L2010042 		$81.93 1
<047A04A LR142259
BEZEL - INSTRUMENT PANEL
Centre Stack Plinth / From: L2010043 		$65.53 1
<047A04B LR132453
BEZEL - INSTRUMENT PANEL
DSL Switch Bezel 		$89.76 1
<108A54 LR081310
PLATE - BLANKING
3.0L AJ20P6 Petrol High, Standard Wheelbase 		$10.88 1
<108A54 LR143280
PLATE - BLANKING
Short Wheelbase, Version - Commercial / From: M2000001 		$22.79 2
<04269 LR132250
MOULDING - INSTRUMENT PANEL
Interior Environment Colour - Lunar, Less Floor Mounted Console / To: N2102521 		$41.36 1
<04269 LR132251
MOULDING - INSTRUMENT PANEL
Internal Environment Colour - Ebony, Less Floor Mounted Console / To: N2087184 		$47.45 1
<04269 LR164016
MOULDING - INSTRUMENT PANEL
Internal Environment Colour - Ebony, Less Floor Mounted Console / From: N2087185 		$47.45 1
<04269 LR164015
MOULDING - INSTRUMENT PANEL
Interior Environment Colour - Lunar, Less Floor Mounted Console / From: N2102522 		$47.45 1
<04481A LR132207
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - Dark Grey / LH, Outside 		$289.30 1
<04481A LR132208
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - Light Grey / LH, Outside 		$289.30 1
<04481A LR132209
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - White / LH, Outside 		$257.42 1
<04481A LR132210
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - Dark Grey / RH, Outside 		$289.30 1
<04481A LR132211
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - Light Grey / RH, Outside 		$289.30 1
<04481A LR132212
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - White / RH, Outside 		$272.76 1
<04481A LR143050
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - Textured Satin Black / LH, Outside / From: M2000001 		$289.30 1
<04481A LR143049
PANEL - INSTRUMENT PANEL SIDE
I/P Insert - Textured Satin Black / RH, Outside / From: M2000001 		$289.30 1
<04481B LR132354
PANEL - INSTRUMENT PANEL SIDE
RH, Inside / To: L2025282 		$138.09 1
<04481B LR132355
PANEL - INSTRUMENT PANEL SIDE
LH, Inside / To: L2025282 		$138.09 1
<04481B LR146348
PANEL - INSTRUMENT PANEL SIDE
RH, Inside / From: L2025283 		$138.09 1
<04481B LR146349
PANEL - INSTRUMENT PANEL SIDE
LH, Inside / From: L2025283 		$138.09 1
<52166 LR132148
BRACKET - SUPPORT
LHD 		$65.69 1
<52166 LR132402
BRACKET - SUPPORT
RHD 		$65.69 1
HB1 LR132223
BOLT
M6 X 18MM
IN STOCK 		$6.21 8
HN1 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring
IN STOCK 		$1.01 1
HN2 LR006214
NUT
4.2 X 2.25 - 3
IN STOCK 		$1.12 -
HS1 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Fixes Side Panel 		$2.59 6
HS2 PYP500140
SCREW
4.2 x 13MM, Torx
IN STOCK 		$0.77 2
18448 LR132414
FINISHER - INSTRUMENT PANEL CENTRE
RHD 		$88.63 1
18448 LR132415
FINISHER - INSTRUMENT PANEL CENTRE
LHD 		$99.60 1
