Turbocharger (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Froml2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Turbocharger (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071777 BOLT - HEX.HEAD $2.77 To Order
Photo Part No Description Price (each) Stock
LR073739 BOLT $1.35 To Order
Photo Part No Description Price (each) Stock
LR092104 BOLT $1.61 To Order
Photo Part No Description Price (each) Stock
LR128485 STUD $1.44 To Order
Photo Part No Description Price (each) Stock
LR121256 GASKET - EXHAUST MANIFOLD $55.45 To Order
Photo Part No Description Price (each) Stock
LR121352 SPACER - EXHAUST MANIFOLD FIXING $18.59 To Order
Photo Part No Description Price (each) Stock
LR121359 CLAMP - EXHAUST $42.77 To Order
Photo Part No Description Price (each) Stock
LR135843 HEAT SHIELD - TRANSMISSION $51.38 To Order
LR139513 HEAT SHIELD $43.55 To Order
Photo Part No Description Price (each) Stock
LR121776 TURBOCHARGER $2,281.75 To Order
LR146149 TURBOCHARGER $2,219.06 To Order
Photo Part No Description Price (each) Stock
LR121356 GASKET $30.50 IN STOCK
Photo Part No Description Price (each) Stock
LR138252 BRACKET - TURBOCHARGER $54.82 To Order
Photo Part No Description Price (each) Stock
LR121257 HEAT SHIELD - TURBOCHARGER $38.00 To Order
Photo Part No Description Price (each) Stock
LR139000 HEAT SHIELD - TURBOCHARGER $57.49 To Order
Photo Part No Description Price (each) Stock
LR121258 SHIELD - EXHAUST MANIFOLD HEAT $70.26 To Order
Photo Part No Description Price (each) Stock
LR121259 SHIELD - EXHAUST MANIFOLD HEAT $29.55 To Order
Photo Part No Description Price (each) Stock
LR121260 SHIELD - EXHAUST MANIFOLD HEAT $27.66 To Order
View All

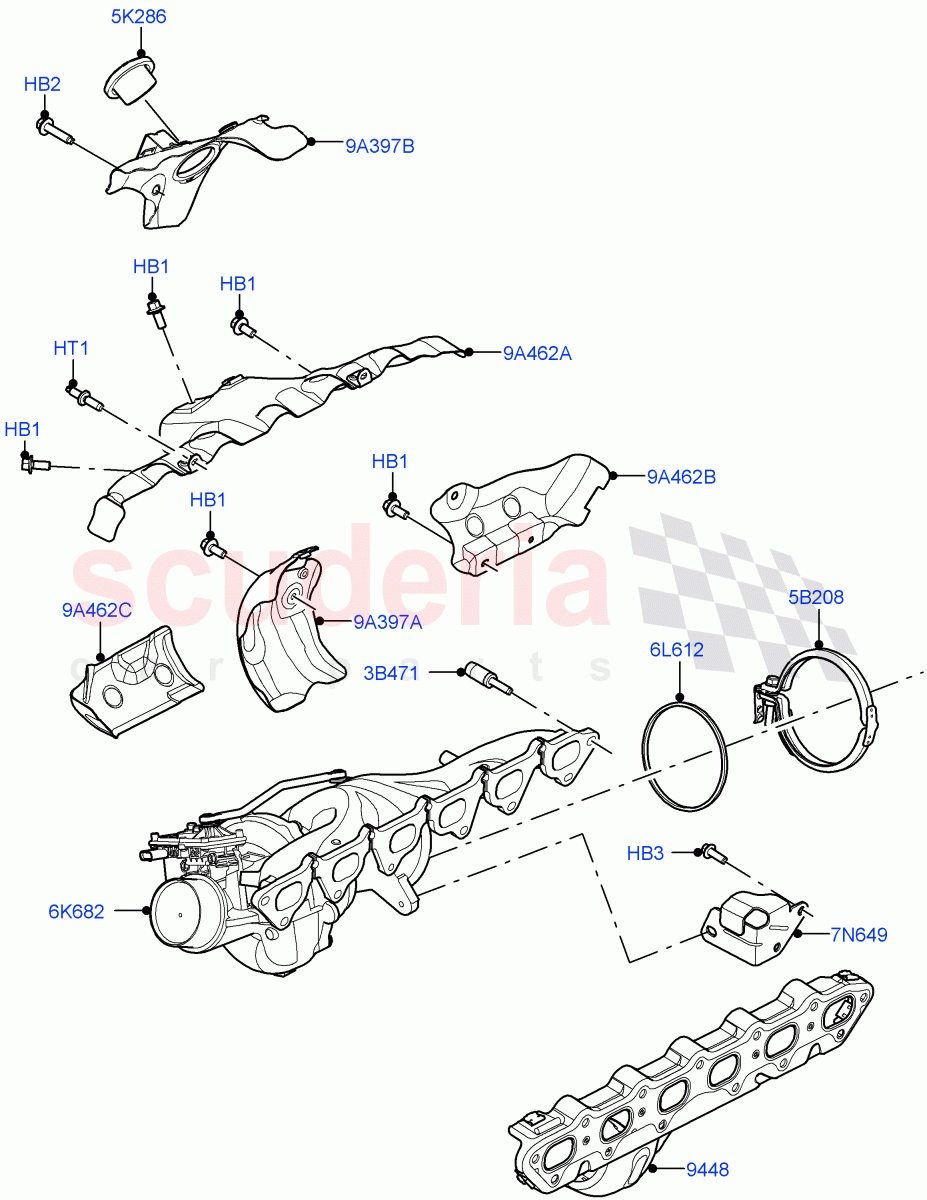

Turbocharger (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR071777
BOLT - HEX.HEAD
Heat Shield, M6 X 14MM 		$2.77 6
HB2 LR073739
BOLT
Catalyst, Heat Shield, M6 X 25MM 		$1.35 3
HB3 LR092104
BOLT
M8 X 25MM, Turbocharger Bracket 		$1.61 2
HT1 LR128485
STUD
M6 x 18 mm + M6 x 18 mm, To Cylinder Head 		$1.44 2
3B471 LR121352
SPACER - EXHAUST MANIFOLD FIXING
Exhaust Manifold Fixing 		$18.59 13
5B208 LR121359
CLAMP - EXHAUST
Turbocharger Outlet 		$42.77 1
5K286 LR135843
HEAT SHIELD - TRANSMISSION
Insert / To: L2023991 		$51.38 1
5K286 LR139513
HEAT SHIELD
Insert / From: L2023992 		$43.55 1
6K682 LR121776
TURBOCHARGER
To: L2013846 		$2,281.75 1
6K682 LR146149
TURBOCHARGER
From: L2013847 		$2,219.06 1
6L612 LR121356
GASKET
Turbocharger Outlet
IN STOCK 		$30.50 1
7N649 LR138252
BRACKET - TURBOCHARGER 		$54.82 1
9A397A LR121257
HEAT SHIELD - TURBOCHARGER
Middle, Turbocharger 		$38.00 1
9A397B LR139000
HEAT SHIELD - TURBOCHARGER
Exhaust 		$57.49 1
9A462A LR121258
SHIELD - EXHAUST MANIFOLD HEAT
Top 		$70.26 1
9A462B LR121259
SHIELD - EXHAUST MANIFOLD HEAT
Lower, Rear 		$29.55 1
9A462C LR121260
SHIELD - EXHAUST MANIFOLD HEAT
Front, Lower 		$27.66 1
9448 LR121256
GASKET - EXHAUST MANIFOLD
Manifold To Cylinder Head 		$55.45 1
