Name: Oil Pan/Oil Level Indicator (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001)
Rating: 4.6 (1 reviews)

View All

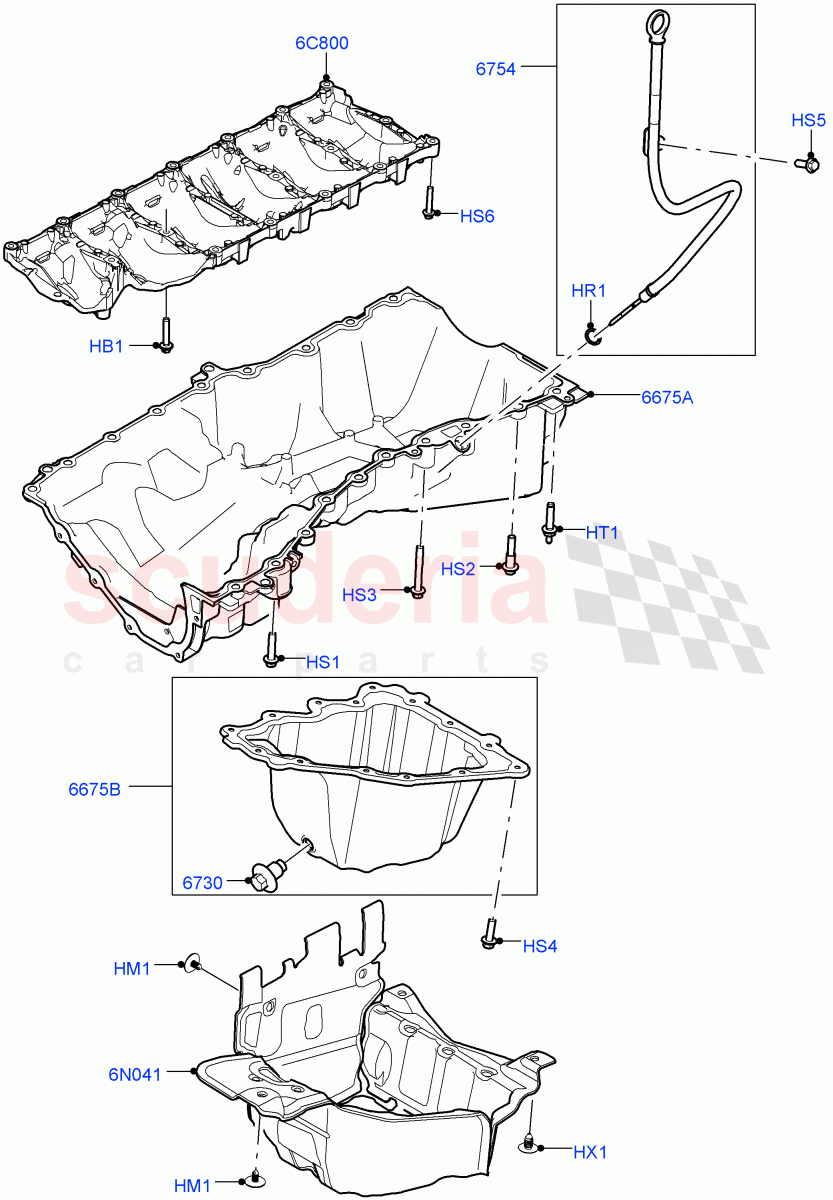

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133629	BOLT	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$5.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121375	TUBE - OIL EXTRACTION	$55.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175751	PAN - ENGINE OIL	$649.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121376	PAN - ENGINE OIL	$398.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132045	TRAY - OIL	$274.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123026	SHIELD - ENGINE PROTECTING	$61.98	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR133629	BOLT	LR133629 BOLT M6 x 35MM, Middle, Windage Tray	$1.45	5
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER 4.75 x 0.76 - 7.9, Insulator, Pin - Retainer	$1.45	3
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator	$5.17	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm	$2.35	9
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm	$3.44	2
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm	$1.95	2
HS4	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.60	14
HS5	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator	$2.31	1
HS6	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray	$2.29	12
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12	$5.08	6
HX1	LR126160	PIN - FASTENING IN STOCK	LR126160 PIN - FASTENING 6.5 x 6, Insulator IN STOCK	$0.59	2
6C800	LR132045	TRAY - OIL	LR132045 TRAY - OIL	$274.61	1
6N041	LR123026	SHIELD - ENGINE PROTECTING	LR123026 SHIELD - ENGINE PROTECTING Oil Pan	$61.98	1
6675A	LR175751	PAN - ENGINE OIL	LR175751 PAN - ENGINE OIL Upper	$649.06	1
6675B	LR121376	PAN - ENGINE OIL	LR121376 PAN - ENGINE OIL Lower	$398.62	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN M14 X 21	$8.34	1
6754	LR121375	TUBE - OIL EXTRACTION	LR121375 TUBE - OIL EXTRACTION	$55.29	1

Oil Pan/Oil Level Indicator (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Froml2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]
