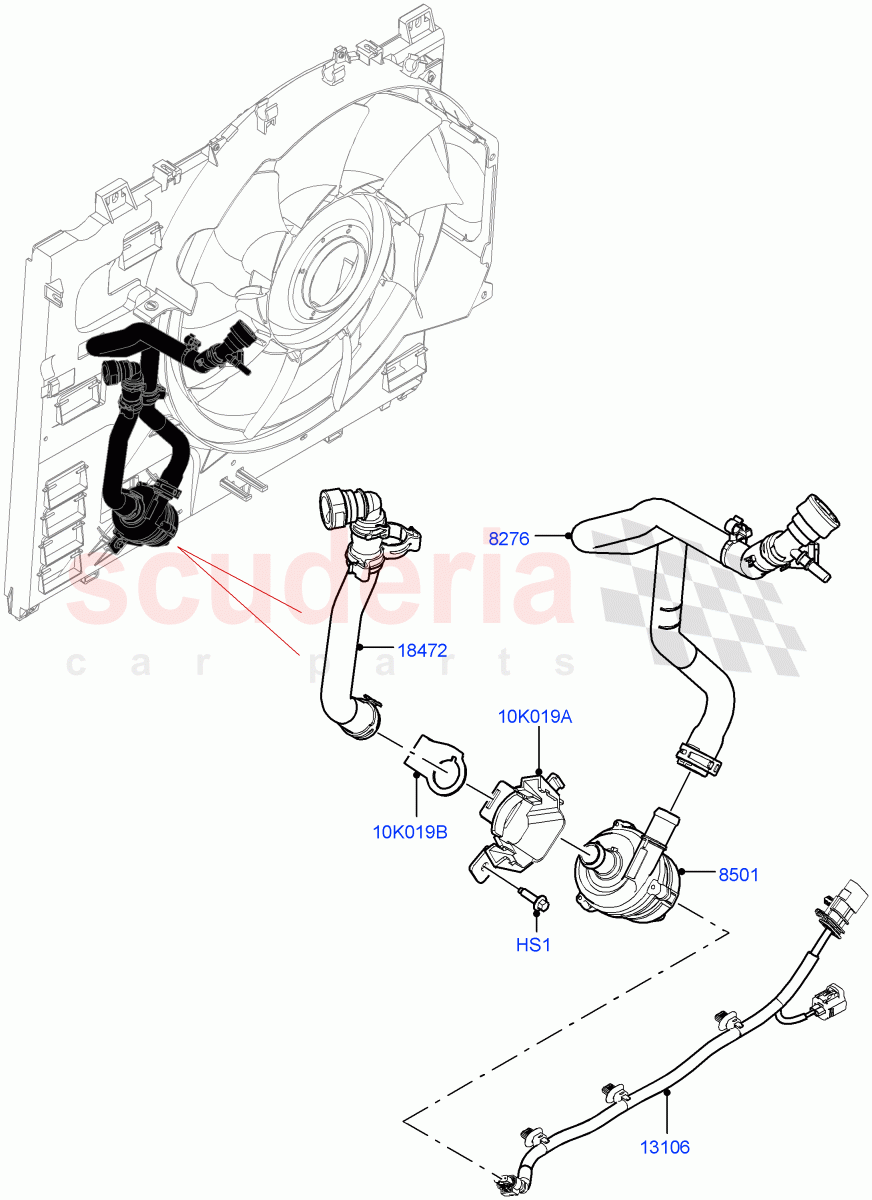

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR132442	HOSE - WATER INLET	$139.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095160	PUMP - WATER	$285.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124990	WIRING - WATER PUMP	$96.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130932	HOSE - WATER	$142.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066172	BRACKET - PUMP SUPPORT	$20.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068265	BRACKET - PUMP SUPPORT	$23.80	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Bracket, Hexagonal Head, M6 X 20MM IN STOCK	$3.46	1
10K019A	LR066172	BRACKET - PUMP SUPPORT	LR066172 BRACKET - PUMP SUPPORT Bottom	$20.93	1
10K019B	LR068265	BRACKET - PUMP SUPPORT	LR068265 BRACKET - PUMP SUPPORT Top	$23.80	1
8276	LR132442	HOSE - WATER INLET	LR132442 HOSE - WATER INLET From Water Pump To Intercooler	$139.78	1
8501	LR095160	PUMP - WATER	LR095160 PUMP - WATER Electric	$285.00	1
13106	LR124990	WIRING - WATER PUMP	LR124990 WIRING - WATER PUMP	$96.72	1
18472	LR130932	HOSE - WATER	LR130932 HOSE - WATER Inlet, Water Pump	$142.11	1
