Air Vents, Louvres And Ducts (2Nd Row, Internal Components)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Air Vents, Louvres And Ducts (2nd Row, Internal Components)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BTR2985 CLIP $1.15 IN STOCK
Photo Part No Description Price (each) Stock
LR096817 CLIP $4.96 To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.10 IN STOCK
Photo Part No Description Price (each) Stock
LR041044 SENSOR - HEATER TEMPERATURE CONTROL $18.73 To Order
LR041044 SENSOR - HEATER TEMPERATURE CONTROL $18.73 To Order
Photo Part No Description Price (each) Stock
LR129919 DUCT - AIR VENT $98.91 To Order
Photo Part No Description Price (each) Stock
LR129921 DUCT - AIR VENT $79.79 To Order
Photo Part No Description Price (each) Stock
LR132914 DUCT - AIR CONDITIONER $117.23 To Order
Photo Part No Description Price (each) Stock
LR129885 DUCT - AIR VENT $68.72 To Order
Photo Part No Description Price (each) Stock
LR129883 DUCT - AIR VENT $94.35 To Order
Photo Part No Description Price (each) Stock
LR129889 DUCT - AIR VENT $80.66 To Order
Photo Part No Description Price (each) Stock
LR129884 DUCT - AIR VENT $80.66 To Order
Photo Part No Description Price (each) Stock
LR130730 ADAPTOR - HEATER OUTLET $103.62 To Order
Photo Part No Description Price (each) Stock
LR130727 ADAPTOR - HEATER OUTLET $103.49 To Order
View All

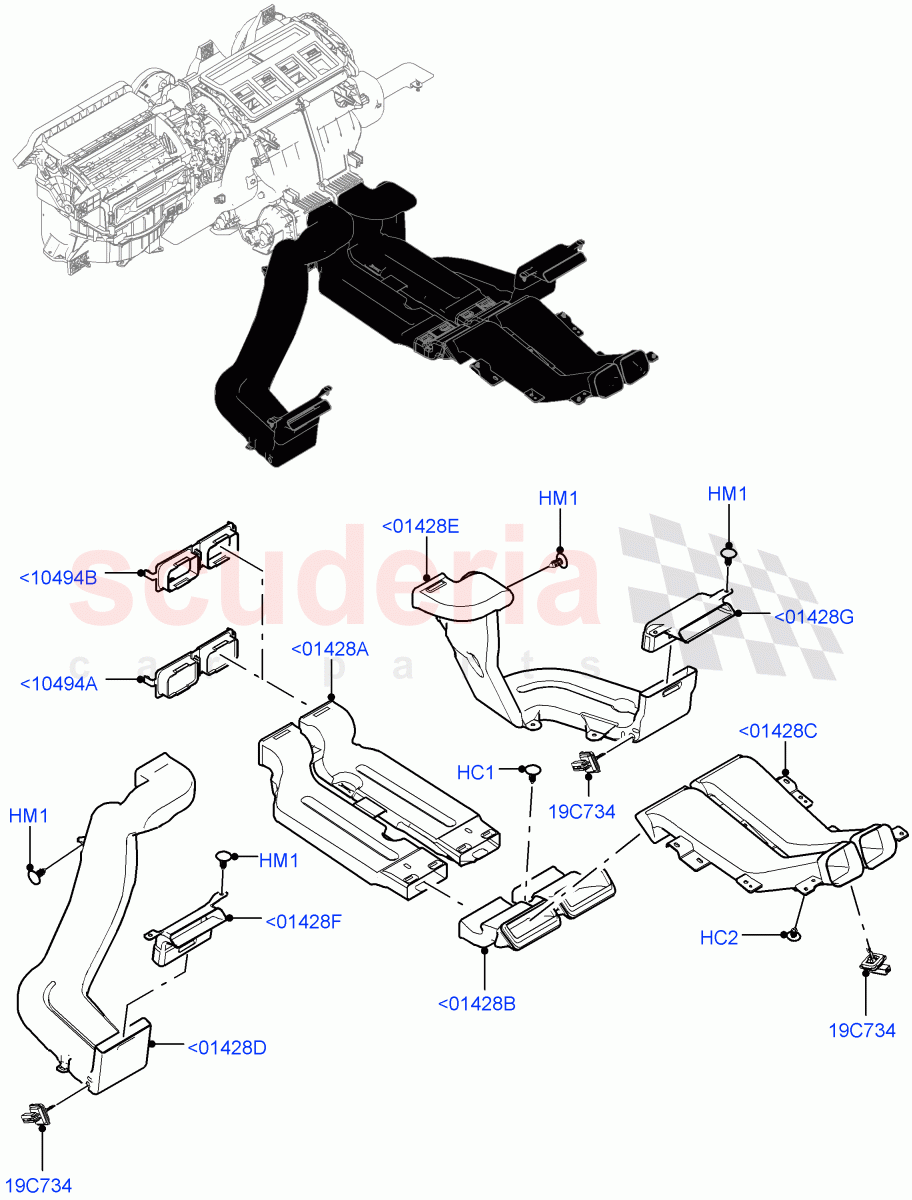

Air Vents, Louvres And Ducts (2nd Row, Internal Components) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428A LR129919
DUCT - AIR VENT
Console - Centre Seat, Short Wheelbase / Centre Front 		$98.91 1
<01428B LR129921
DUCT - AIR VENT
Console - Centre Seat / Middle 		$79.79 1
<01428C LR132914
DUCT - AIR CONDITIONER
Console - Centre Seat / Under Centre Seat 		$117.23 1
<01428D LR129885
DUCT - AIR VENT
Footwell Duct, LH Front 		$68.72 1
<01428E LR129883
DUCT - AIR VENT
Footwell Duct, RH Front 		$94.35 1
<01428F LR129889
DUCT - AIR VENT
Footwell Duct, LH Rear 		$80.66 1
<01428G LR129884
DUCT - AIR VENT
Footwell Duct, RH Rear 		$80.66 1
<10494A LR130730
ADAPTOR - HEATER OUTLET
Less Floor Mounted Console / Blank 		$103.62 1
<10494B LR130727
ADAPTOR - HEATER OUTLET
Console - Centre Seat / Through Flow 		$103.49 1
HC1 BTR2985
CLIP
Console - Centre Seat / 6.5 x 6, Push Pin
IN STOCK 		$1.15 1
HC2 LR096817
CLIP
Console - Centre Seat / 7 x 12, Fir Tree Clip 		$4.96 4
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin
IN STOCK 		$1.10 6
19C734 LR041044
SENSOR - HEATER TEMPERATURE CONTROL
Full Floor Console With Armrest 		$18.73 4
19C734 LR041044
SENSOR - HEATER TEMPERATURE CONTROL
Less Floor Mounted Console 		$18.73 2
