Fuel Tank & Related Parts (Nitra Plant Build) (3.0L Aj20D6 Diesel High, Short Wheelbase) ((V)...

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
LR060351 CLIP - HOSE $4.44 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR143376 TANK - FUEL $1,251.78 To Order
LR166535 TANK - FUEL $1,217.62 To Order
Photo Part No Description Price (each) Stock
LR138719 CAP - FUEL TANK FILLER $39.29 To Order
LR138861 CAP - FUEL TANK FILLER $39.29 To Order
Photo Part No Description Price (each) Stock
LR128357 PIPE - FUEL FILLER $226.84 To Order
LR128358 PIPE - FUEL FILLER $226.84 To Order
LR128359 PIPE - FUEL FILLER $226.84 To Order
Photo Part No Description Price (each) Stock
LR128360 HOSE - FILLER PIPE $97.76 To Order
Photo Part No Description Price (each) Stock
LR146963 TUBE - FUEL VAPOUR $62.48 To Order
Photo Part No Description Price (each) Stock
LR159412 SHIELD $659.90 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.28 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $26.24 To Order
Photo Part No Description Price (each) Stock
LR122707 TUBE - FUEL $65.67 To Order
Photo Part No Description Price (each) Stock
LR125887 TUBE - FUEL FEED $64.68 To Order
View All

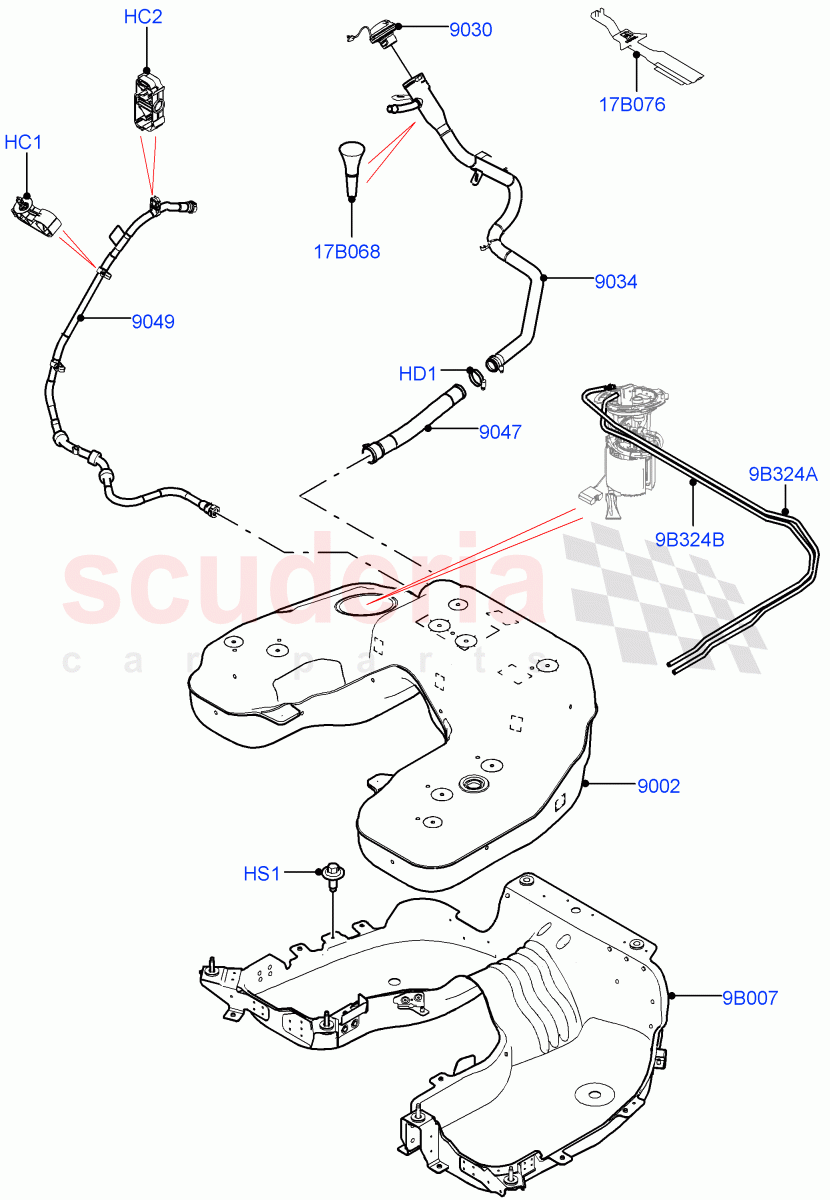

Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR094032
CLIP - HOSE
Plastic, Vapour Line / From: M2000001 		$4.41 2
HC2 LR060351
CLIP - HOSE
From: M2000001 		$4.44 1
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: M2000001 		$6.12 1
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		$4.21 4
9B007 LR159412
SHIELD
Cradle / From: M2000001 		$659.90 1
9B324A LR122707
TUBE - FUEL
Feed / From: M2000001 		$65.67 1
9B324B LR125887
TUBE - FUEL FEED
Return / From: M2000001 		$64.68 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: M2000001 		$6.28 1
17B076 LR014047
RESTRICTOR - FUEL
Fuel Tank Filler Neck - Diesel / From: M2000001 		$26.24 1
9002 LR143376
TANK - FUEL
From: M2000001 / To: N2090499 		$1,251.78 1
9002 LR166535
TANK - FUEL
From: N2090500 		$1,217.62 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: M2000001 		$39.29 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: M2000001 		$39.29 1
9034 LR128357
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / Inlet, Upper / From: M2000001 		$226.84 1
9034 LR128358
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Japan / Inlet, Upper / From: M2000001 		$226.84 1
9034 LR128359
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / Inlet, Upper / From: M2000001 		$226.84 1
9047 LR128360
HOSE - FILLER PIPE
Fuel Tank, Inlet / From: M2000001 		$97.76 1
9049 LR146963
TUBE - FUEL VAPOUR
From: M2000001 		$62.48 1
